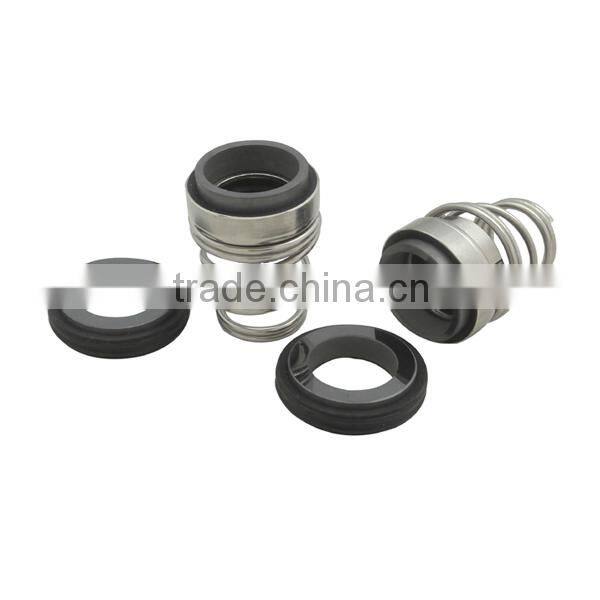

MG9 15mm Rubber Mechanical Seal

MG9 15mm Rubber Mechanical Seal thumbnail-1
MG9 15mm Rubber Mechanical Seal photo-1
US$ 5 - 100 MOQ: 5 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Style:
Mechanical Seal
Material:
Other, car/sic/tc
Contact Supplier Request Quote Chat Now
Ningbo Rock Metal Product Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/others
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Style Mechanical Seal
Material Other, car/sic/tc
Place of Origin Zhejiang, China
Brand Name MG9 Burgmann
Model Number MG9 Mechanical Seal

MG9 15mm Rubber Mechanical Seal

MG9 15mm Rubber Mechanical Seal

  • We can supply  mg9 mechanical seal .
  • Please feel free to contact us, we are sure both of us will have plenty of opportunities working together.
  • SEND US DRAWING OR SAMPLE!!

Product Description

Working Conditions:

  • Mediums: Water, oil, middle corrosion liquids and other mediums including solid granule.
  • Pressure: Up to 15bar or 218psi
  • Speed: Up to 10m/s or 33ft/s
  • Temperature: -40°C to 200°C (depending on materials used
Material:
  1. Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide, Tungsten carbide
  2. Seat: Silicon carbide, Tungsten carbide, Special cast CrMo steel, Aluminium oxide
  3. Elastomer: NBR, EPDM, FKM, HNBR
  4. Metal parts: steel

Design features: Elastomeric bellows seal design including kinds of stationary ring, complying with DIN24960, ISO3069



Recommended applications
  • Process industry
  • Chemical industry
  • Pulp and paper industry
  • Water and waste water technology
  • Food and beverage industry
  • Sugar industry
  • Water, waste water, slurries (up to 5 % by weight)
  • Pulp (up to 4 % otro)
  • Latex
  • Dairies, beverages
  • Sulfide slurries
  • Chemicals
  • Oils
  • Chemical standard pumps
  • Helical screw pumps
  • Stock pumps
  • Circulating pumps
  • Submersible pumps
  • Water and waster water pumps
  • Oil application

Or permit us to consolidate with other items or with other orders.

Please let us know your requirements...


FAQ

FAQ:Before we send quotation to customer,we need to know these information:



1.please note type, size and material match, when sending enquiry.
2. or u can send drawing to let us comfirm.
3 QTY u need as well.
