Specifications
10/100M ethernet fiber optic transceiverPower external 5VDC input
Operating temperature rangs from -10 to 65.

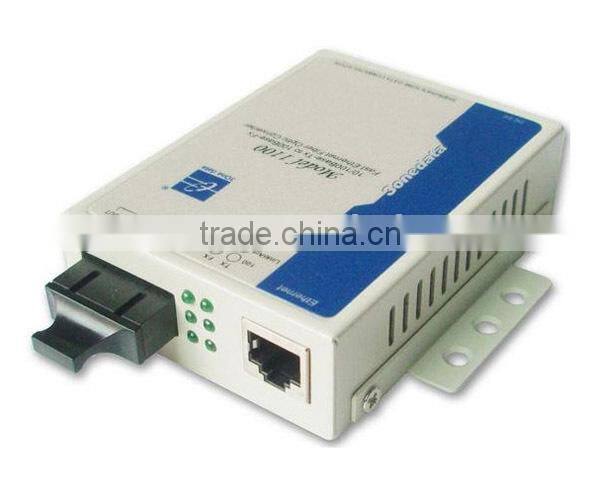

10/100M Fast Ethernet Media Converter
Feature |
|
1) Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX;
|
|
2) MDI/MDI-X auto negotiation, 10M/100M auto negotiation;
|
|
3) Supports full /half duplex, Point-to-point transparent transfer;
|
|
4) Power External 5VDC input;
|
|
5) Plug-and-play, easy to installation;
|
|
6) Can insert to 2U 19", 14 slots Rackmount(power external).
|
Introduction |
|
Model1100, 10/100M Media Converter, provides a cost effective plug-and-play solution for long-range 10Base-T or 100Base-TX Ethernet extensions and added benefit of 10/100 auto-negotiation, making it the perfect choice when planning future upgrades of 10Base-T networks. Model1100 Ethernet Fiber converters are ultra-miniature in size and feature a shielded RJ45 Ethernet jack, SC/ST/FC style fiber-optic connections. Built-in auto-sensing capabilities enable full or half-duplex Ethernet operation with no configuration required !
|
Specification |
Parameter |
|
Standards comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
|
|
RJ45 port rate 10/100Mbps auto negotiation
|
|
Optic port rate 100Mbps
|
|
Working Asynchronous, point to point
|
|
Transfer distance RJ45port: 100m Fiber optic: 20,40,60,80,100,120km(SM),2 km(MM) optional
|
|
RJ45 port cable UTP 5E
|
|
Fiber connector SC,ST,FC optional
|
|
Fiber optic cables Single Mode:8.3/125,8.7/125,9/125 or 10/125 um Muti-Mode:50/125,62.5/125 um
|
|
Wavelength 850nm,1310nm,1550nm
|
Power |
|
Power supply External 5VDC input
|
|
Consumption 4W
|
Environmental |
|
Operating Temperature -10 ~65°C
|
|
Storage Temperature -20~70 °C
|
|
Operating humidity 5% to 95%(no condensation)
|
Appearance |
|
Dimension(L×W×H) 94.0mm×71.0mm×26.0mm(Power External)
|
|
Material Iron (Shell)
|
|
Color White
|
|
Weight 230g(power external)
|
|
Warranty time 5 years
|
|
Certification CE,FCC, RoHS
|
Ordering Information |
Model1100-M multi-mode, 2Km, 5VDC, SC, FC or ST, optional |
Model1100-S/20 single-mode, 20Km,5VDC, SC, FC or ST, optional |
Model1100-S/40 single-mode, 40Km, 5VDC, SC, FC or ST, optional |
Model1100-S/60 single-mode, 60Km, 5VDC, SC, FC or ST, optional |
Model1100-S/80 single-mode, 80Km, 5VDC, SC, FC or ST, optional |
Model1100-S/100 single-mode, 100Km,5VDC, SC, FC or ST, optional |
Model1100-S/120 single-mode, 120Km, 5VDC, SC, FC or ST, optional |
Model1100-SS/20 single-mode, single fiber, 20Km, 5VDC, SC, FC or ST, optional |
Model1100-SS/40 single-mode, single fiber, 40Km, 5VDC, SC, FC or ST, optional |
Model1100-SS/60 single-mode, single fiber, 60Km, 5VDC, SC, FC or ST, optional |
|
Model1100-SS/80 single-mode, single fiber, 80Km, 5VDC, SC, FC or ST, optional
|
Packing List |
|

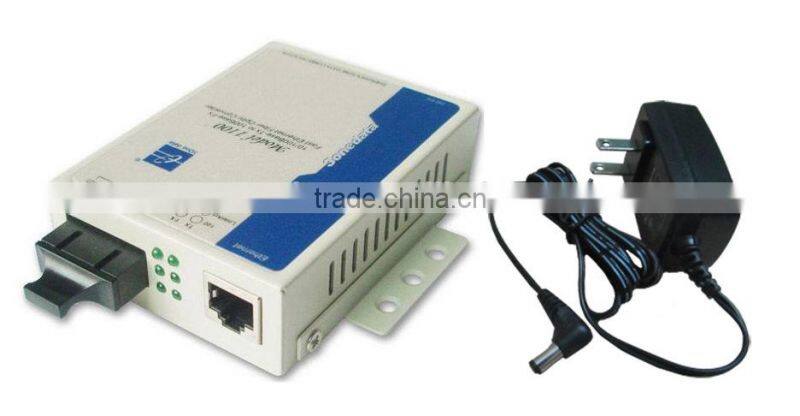

1) 3onedata Ethernet Media Converter Model1100 series(plus terminal block)×1 2) User manual ×1 3)DIN-Rail fittings×1,optional 4)5VDC power adapter×1
|
