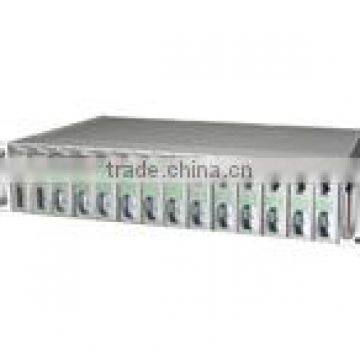

14 Slots Ethernet Media Converter Rack
- 100000 Piece / Pieces per Month
- shenzhen
- Credit Card
You May Like
-
1-port SFP Slot 10/100/1000M Ethernet Media Converter
-
1-port SFP Slot 10/100M Ethernet Media Converter
-
2-port 10/100M Ethernet Media Converter
-
14 slots Ethernet Media Converter Rackmount(RACK2000A)
-
10/100/1000M Gigabit Ethernet SFP Media Converter(Model3011)
-
10/100M Ethernet SFP Media Converter(Model3010)
Product Details
| Place of Origin | Guangdong, China | Brand Name | 3onedata, 3onedata | |
| Model Number | RACK2000A, RACK2000A |
Product Description
Specifications
RACK2000A for Media converter adapt integration management media converter Rack in machine room.Specifications
1 Adopt insert-draw design, support hot-swappable
2Adopt auto-adapt technology. Do not adjust electrics and optics when install
Introduction:
RACK2000A RACK for Media converter adapt integration management media converter Rack in machine room.
Each Rack have 14 insert slots, can insert 1-14 different media converters.
Redundant Power Supply, support hot-swappable, provide credibility, high effect and economic solutions for network system.
Features:
1.Adopt insert-draw design, Easy to load and unload, Plug-and-play, support hot-swappable
2. 19 inch 2U, easy to install
3. Each Rack have 14 insert slots, can insert 1-14 different media converters, high capability, easy to upgrade
4. Full aluminums metal shell, high shield, high anti-jamming
5. Adopt auto-adapt technology. Do not adjust electrics and optics when installation
6. Redundant Power Supply, Low consumption, and credibility
7. Full working indicator light, easy to maintenance
8. Average no MTBF is up to 50 thousands, accord to telecom standard
Specifications:
Parameter
Working Temperature:0°C to 50°C
Storage Temperature:-40°C to 85°C
Relative Humidity:5%~95%
Dimension:482.6mm×350mm×88mm(L×W×H)
19 Inch 2U
Power supply Require
Input:AC 100~260V,50~60HZ, or DC -48V
Out :putDC +5V
Consumption:‹60W
Wave≤50mv
Noise≤50mv
Warranty: 5 years
Approvals: FCC, CE, RoHS approvals
