Specifications
Support line recovery clock,local clock and equipment clock220VAC/-48VDC power input
Working temperature rangs from -25~70.

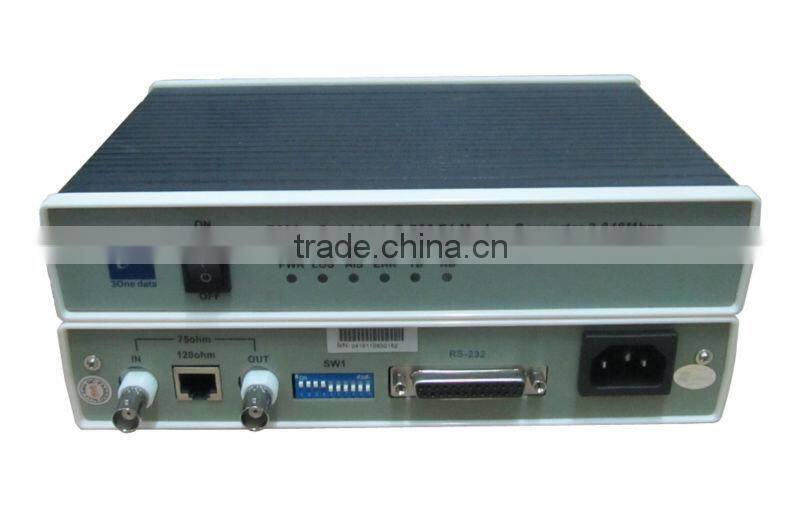

RS232 to E1 Protocol Converter
Features |
|
1) Convert RS232 interface to E1(2M unframed G.703) interface;
|
|
2) Support line recovery clock, local clock and equipment clock;
|
|
3) Support E1 port loop;
|
|
4) E1 (G.703 ) interface support 120ohm (RJ-45) and 75ohm (BNC double coaxial).
|
Introduction |
|
E232 converter supports the conversion between E1 interface which accord with the ITU-T G.703 standard and RS232 interface, it can receive synchronous data of 2.048Mbps from E1 network, and transmit the data to ROUTER or other devices. The mode of interface is DCE, and it can be connected with DTE or DCE devices.
|
Specification |
E1 interface |
|
Standard Comply with ITU-T G.703
|
|
Output tingle displace accord ITU-TG.735 advice
|
|
Input tingle limit accord ITU-TG.823 advice
|
|
Output tingle accord ITU-T G.823 advice
|
|
Frame format unframed
|
|
Interface rate 2.048Mbps±50ppm
|
|
CRC checkout no
|
|
Port coding HDB3
|
|
Port transmission 2km
|
|
Port protection 1500W surge protection,15KV ESD protection
|
|
Port connector 120 Ohm(RJ-45) and 75 ohm(BNC double coaxial)
|
RS232 Port |
|
Standards Compliance EIA RS-232C
|
|
Interface Types RS-232(DB25 female)
|
|
Signal TXD, RXD, CTS, DSR, GND, DCD
|
|
BaudRate 0~115.2Kbps
|
|
Work mode DCE
|
|
Synchronous serial, lucency transmission
|
|
600W surge protection, 15KV ESD protection
|
Environment, Power and Dimension |
|
Working temperature -25 to 70°C
|
|
Storage temperature -40 to 85°C
|
|
Humidity Relative humidity 5% to 95%
|
|
Input power 220VAC or -48VDC
|
|
Consumption 2W
|
|
Power protection From high voltage/short circuit
|
|
L×W×H 227.4mm×146.3mm×42.7mm
|
|
Shell Plastic
|
|
Weight 260g
|
|
Warranty time 5 years
|
|
Certification CE,FCC, RoHS
|
Packing List |
|
1) 3onedata Protocol Converter E232×1 2) 220V power line ×1 3) DB25M to DB9F cable×1 4) User manual×1
|
