Frequency driveMeasure cup filling
No-Can-No-Granules
30 years can packing experience
Easy to operation and maintenance

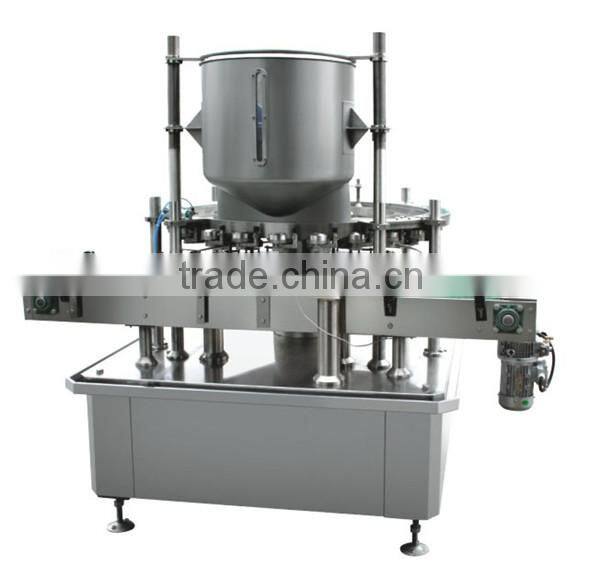

This is the latest granules/beans/grains filling machine which designed and produced on the basis of similar machines at home and aboard. It is high capacity(12/18/24/32 filling heads for option),running steady,no-can-no-granules, and it will stop if the machine goes backward when empty cans enter into it, alarms while malfunction happens.
The machine is touch screen operation,frequency control,convenient for operation and maintenance;measure cup is telescopic, so volume is continuous adjustable, filling assembly fits pneumatic hammer good to granules feeding and clean measure cup cleaning. It is an ideal machine for beans,corns and other granules’ filling.
Technical Parameter: | |
Item No: | GG18 |
Filling heads: | 18 |
Capacity: | 80~250cans/min |
Can Diameter: | Φ52.5~Φ99mm |
Can Height: | H50~H160mm |
Power: | 2.2Kw |
Voltage: | 380V 50HZ 3p |
Weight: | 1400kg |
Dimension: | 2000mm*1800mm*2000mm |
KGJ series:
Item No. | GG12 | GG18 | GG24 | GG32 |
Filling heads | 12 | 18 | 24 | 32 |
Capacity | 80-150 | 80-250 | 80-400 | 80-500 |
Can Dia. | 52.5-99mm | 52.5-99mm | 52.5-99mm | 52.5-99mm |
Can H. | 50-160mm | 50-160mm | 50-160mm | 50-160mm |
Power | 2.2kw | 2.2kw | 2.2kw | 3kw |
Weight | 1200kgs | 1400kgs | 1500kgs | 2000kgs |
Dimension | 1800*1500*2000 | 2000*1800*2000 | 2400*2000*2000 | 2440*2000*2000 |
