Home > Instruments & Meters > Optical Lens & Instrument > Microscope > ZX-71M(200HD)01 HDMI Biological Microscope

ZX-71M(200HD)01 HDMI Biological Microscope

ZX-71M(200HD)01 HDMI Biological Microscope photo-1

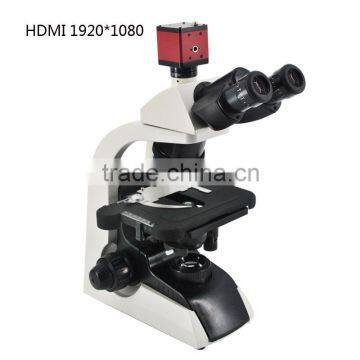

ZX-71M(200HD)01 HDMI Biological Microscope photo-2

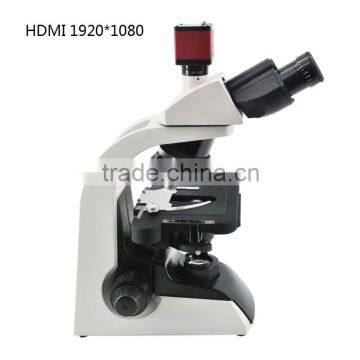

ZX-71M(200HD)01 HDMI Biological Microscope photo-3

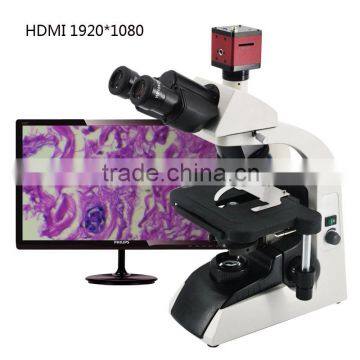

ZX-71M(200HD)01 HDMI Biological Microscope photo-4

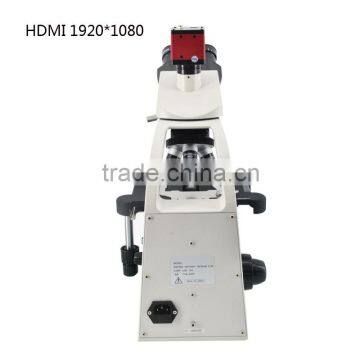

ZX-71M(200HD)01 HDMI Biological Microscope photo-5
ZX-71M(200HD)01 HDMI Biological Microscope photo-6
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZhongXun
Model Number:
ZX-71M(200HD)01
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ZhongXun
Model Number ZX-71M(200HD)01
Theory Biological Microscope
Drawtube Trinocular





ZX-71M(200HD)  HDMI Biological Microscope





Description:

Excellent image quality with infinite optical system.·Comfortable operating with ergonomic design.

Better illumination with sliding-in centerable condenser, convenient replacement with phase contrast and dark field condenser.

To keep the work area clear and to avoid interference with observation operations, the X-direction travel guide does not extend out from the side of the stage. The main and sub-scale displays are designed for easy read-out. The stage can prevent the corrosion and scratches.





Specification:

1. Model#: ZX-71M(200HD)01

2. Total Magnification: 40X-1000X

3. Optical System: Infinite optical system

4. Viewing Head: Siedentopf binocular viewing head, inclined at 30°,360°rotatable

5. Eyepiece: WF10X/20

6. Optional Eyepiece: WF15X/16

7. Objective: Infinite plan achromatic objective 4X, 10X, 40X, 100X

8. Nosepiece: Backward quadruple nosepiece

9. Focusing: Coaxial coarse & fine adjustment, range 22mm, fine division 0.002mm

10. Stage: Rectangular 230×150mm, cross travel 78×54mm, using low-positioned X/ Y coaxial control knob

11. Condenser: Abbe condenser NA1.25 with aperture diaphragm

12. Illumination: S-LED Illumination, brightness adjustable

13. Camera: HDMI 1920*1080

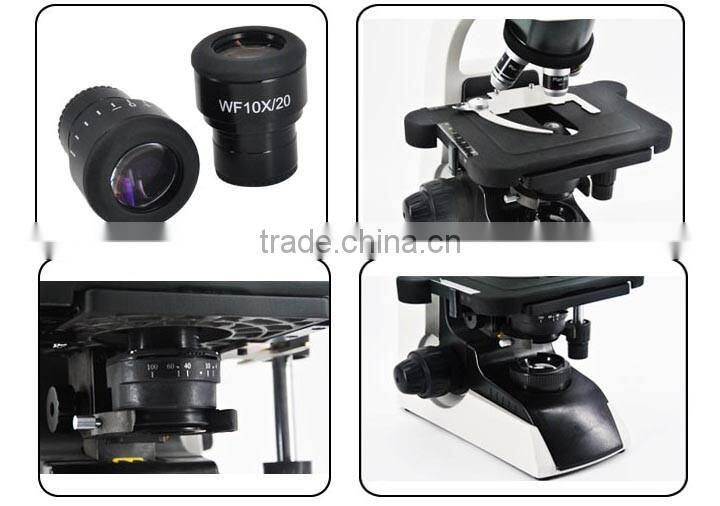

Detail Show:

ZX-71M(200HD)01 HDMI Biological Microscope



100% Products Actual Photo







ZX-71M(200HD)01 HDMI Biological Microscope
