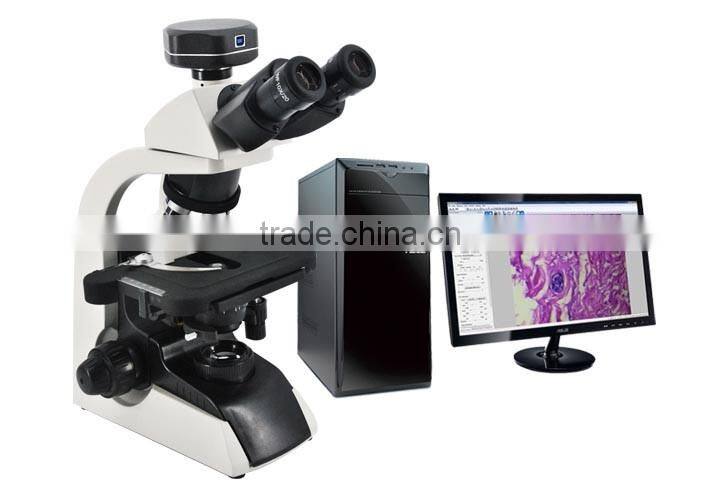

ZX71M(50PW)01 Trinocular Laboratory Microscope

ZX71M(50PW)01  Trinocular Laboratory Microscope

Description:

Excellent image quality with infinite optical system.·Comfortable operating with ergonomic design.

Better illumination with sliding-in centerable condenser, convenient replacement with phase contrast and dark field condenser.

To keep the work area clear and to avoid interference with observation operations, the X-direction travel guide does not extend out from the side of the stage. The main and sub-scale displays are designed for easy read-out. The stage can prevent the corrosion and scratches.

Specification:

1. Model#: ZX71M(50PW)01

2. Total Magnification: 40X-1000X

3. Optical System: Infinite optical system

4. Viewing Head: Siedentopf binocular viewing head, inclined at 30°,360°rotatable

5. Eyepiece: WF10X/20

6. Optional Eyepiece: WF15X/16

7. Objective: Infinite plan achromatic objective 4X, 10X, 40X, 100X

8. Nosepiece: Backward quadruple nosepiece

9. Focusing: Coaxial coarse & fine adjustment, range 22mm, fine division 0.002mm

10. Stage: Rectangular 230×150mm, cross travel 78×54mm, using low-positioned X/ Y coaxial control knob

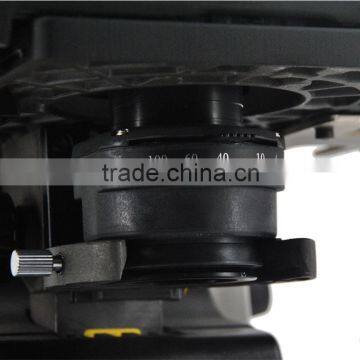

11. Condenser: Abbe condenser NA1.25 with aperture diaphragm

12. Illumination: S-LED Illumination, brightness adjustable

13. Camera: ZX-50PW-5 million pixel camera video measurements with the cache function.

Detail Show:

100% Products Actual Photo
