Specifications
No-can-no-fillingSingle piston filling
Touch screen operation
error control within 4per mill
Materials stirring system
GJ series:
Item No: | GJ12 | GJ24 | GJ36 |
Filling heads: | 12 | 24 | 36 |
Capacity: | 80~200cans/min | 80~400cans/min | 80~500cans/min |
Filling volume: | 70g / 400g / 850g | 70g / 400g / 850g | 70g / 400g / 850g |
Can Diameter: | φ52-99mm | φ52-99mm | φ52-73mm |
Can Height: | H39-160mm | H39-160mm | H39-160mm |
Power: | 4Kw | 5.5Kw | 7.5Kw |
Voltage: | 380V 50HZ 3p | 380V 50HZ 3p | 380V 50HZ 3p |
Weight: | 1500kg | 2800kg | 4000kg |
Dimension: | 1800*1500 *1900 | 2200*1800*2100 | 2400*2000*2100 |

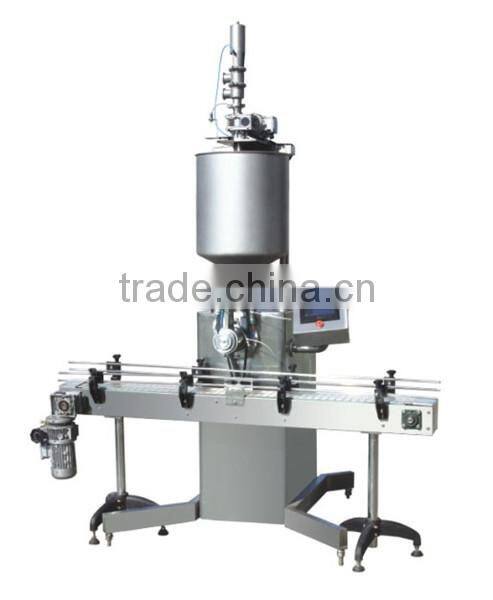

This single head sauce filling machine is suit for big tinplate can sauce filling. It is single piston filling machine which adopts motor,pneumatic components and PLC program control. Fuji servo motor and servo motor controller controls the filling valve route, the user change the filling volume between 400g and 4500g via touch screen to make the filling volumes adjustable continuously. This machine could fill the second time to the can, and enlarge the filling volume to 9000g.
The machine is equipped with the agitation system and automation system, like three-point level control system,stirring system,No can No filling system and so on. The operation is simple and no need change can moulds when change can size. The filling precision is high, and error control within ±4‰.
Specification:
-The machine is in great shape, most parts of the unit are made of superior quality stainless steel and up to the food hygiene standard.
-The piston and piston cylinder are durable and cooperated in harmony after special treatment of cutting-edge technologies.
-The machine is equipped with the agitation system and automation system, like three-point sauce level control system and speed adjustment system.
Technical Parameter: | |
Item No: | GGJ45 |
Filling heads: | 1 |
Capacity: | 18~25cans/min |
Filling volume: | 300-4500g |
2nd filling volume: | 9000g |
Can Size: | At will |
Power: | 1.87Kw |
Voltage: | 380V 50HZ 3p |
Weight: | 600kg |
Dimension: | 2000mm*1300mm*2200mm |
