Specifications

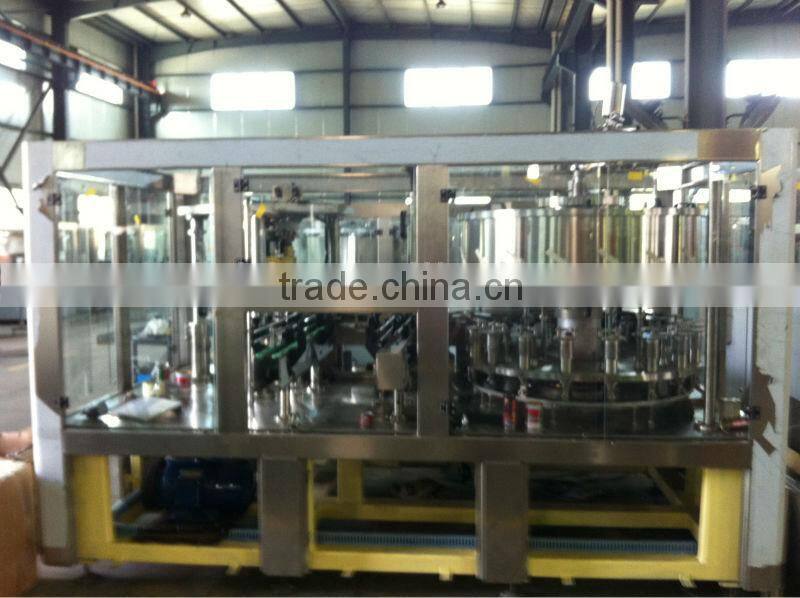

Beverage Soft Drinks filling machine canned6capping heads
36 filling heads
For beer
Capacity:30-300cans/min
Type: Filling and Seaming Machine
Condition: New
Application: Beverage
Packaging Type: Cans
Packaging Material: Metal
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380 V
Power: 7.5kw
Place of Origin: Zhejiang, China (Mainland)
Brand Name: weichi
Model Number: GT7B36Q-F6
Dimension(L*W*H): 3900*2400*1900
Weight: 5500 kg
Can Height:122~160mm
Can Diameter:Φ65mm
stainless steel: monobloc
Processing: filling and seaming line
Packaging Details: WOODEN CASE
Delivery Detail: 45 days after down payment
.
Specifications
6capping heads
36 filling heads
For beer
Capacity:30-300cans/min
1.The machine is suitable for filling and sealing effervescent pop can beverages in the industries of pop can beverages (beer). The filling and seaming are of integral design. The principle of equal pressure filling is adopted.
2.During the filling, after the empty can reaches the can lifting pneumatic can support, the compressed air will enter into the can lifting cylinder after passing through the pneumatic triplex parts, and the empty can is raised and the conical seal gasket under the filling is sealed.
3.The position turning block of the filling valve turns the position and opens the valve under the action of another cylinder. The air is filled into the empty can to form equal pressure. From a large material barrel, the beer passes through 14 small conduits and flows into the empty can.
4.When the liquid level in the empty can blocks the gas return pipe mouth, the filling stops. Under the action of ram, the defoaming valve will slowly discharge the air and pressure. The can supporting cylinder will continue to fall. After it is discharged, chain that runs synchronously.
5.During the sealing, the sealing wheel carries out the pre-sealing and then real sealing. After it is sealed. The can is pushed out by the beating head of the cap beating mechanism and then dialed by the dial to the conveyor belt for converying.
