Ready Sale automatic chicken farm machinery for broiler and poutlry farm equiment
(BRAND: BIRDSITTER)
BIRDSITTER focus on best Professional feeding and drinking system

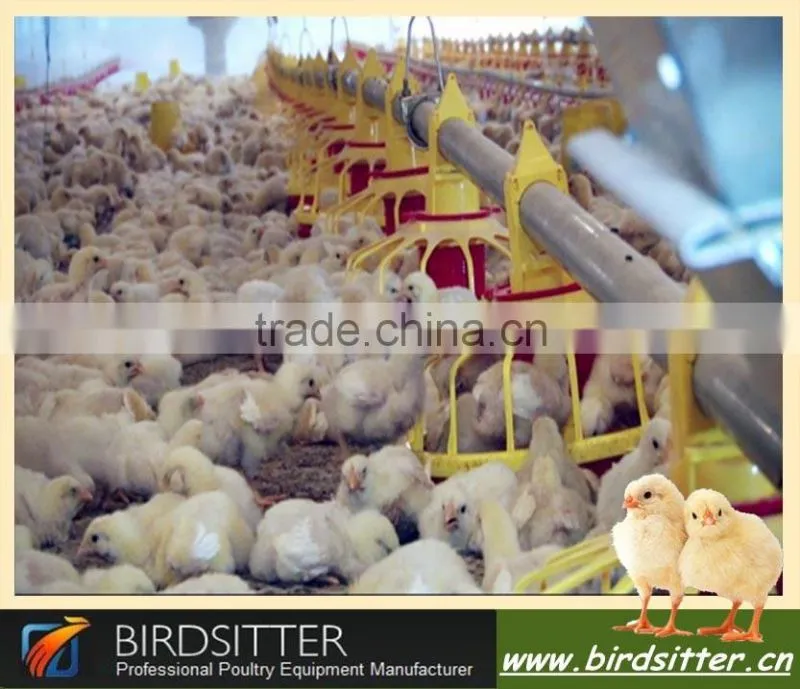

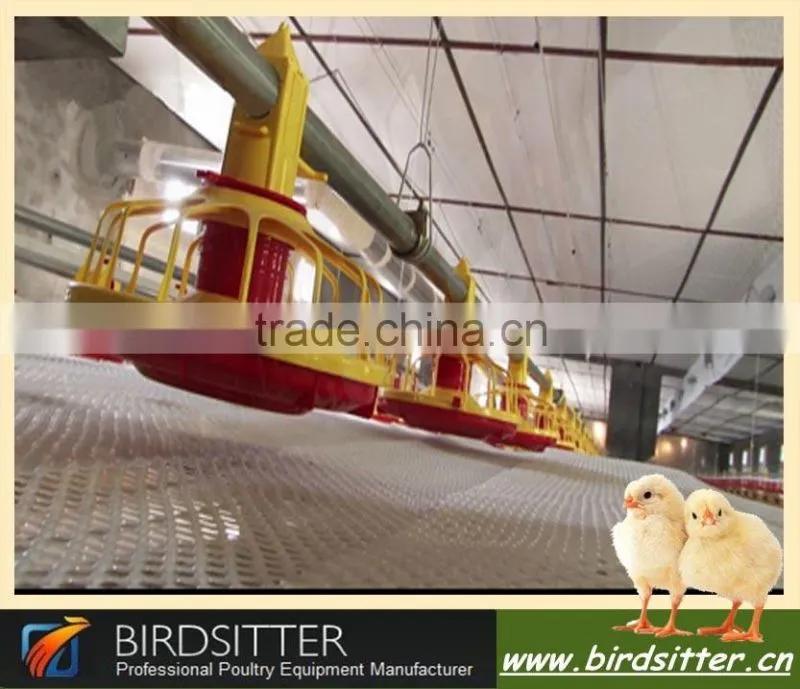

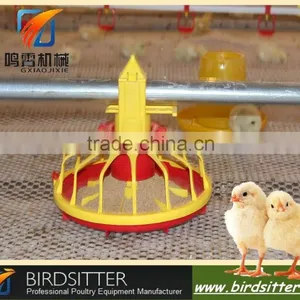

Pan feeding system

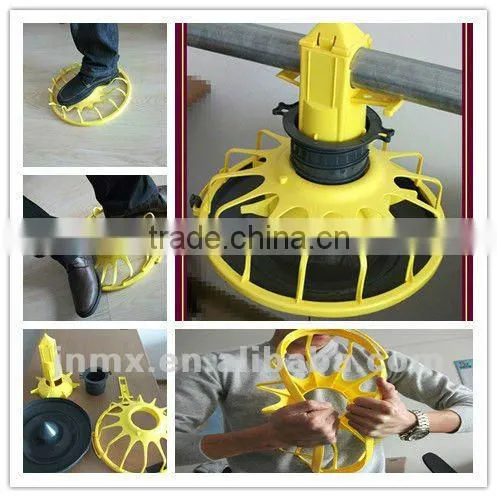

Feeder pan is the core of the feeding system. The pan feeding system is solid and reliable through the application of high quality material and components. The pan is impactproof and extremely resistant to different types of cleaning infection and chemical products used on poultry farm. Feed is delivered from the hopper to fulfill the feed pan one by one through delivery pipe. When the entire feed line is full of feed, control box will stop the motor from working, and when the feed is eaten up, control box will start the motor again.
Pan feeding system
Max feeding length |
150m |
Feeding pan grids |
4 for duck and 14 for broiler |
Feeding pipe unit |
3m |
Winch rated load |
3500 pond |
Hopper capacity |
110L-150L |
Driving motor |
0.75W 350V |
Feeding pan |
3m/3holes/unit 3m/4holes/unit |
Feed pan colour |
Red yellow/ grey yellow |
Feeding pipe |
Ø45mm |
Hanging point |
3m |
Feeding pan |
45-60 birds(<=2.5kg)/pan |
Hanging wire |
steel |

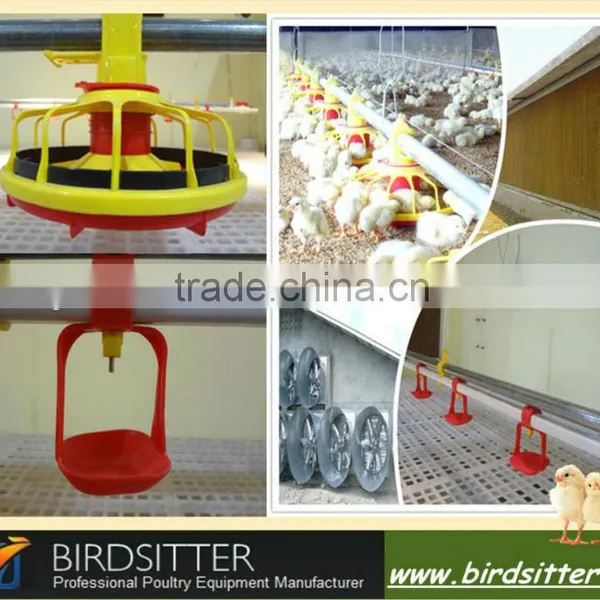

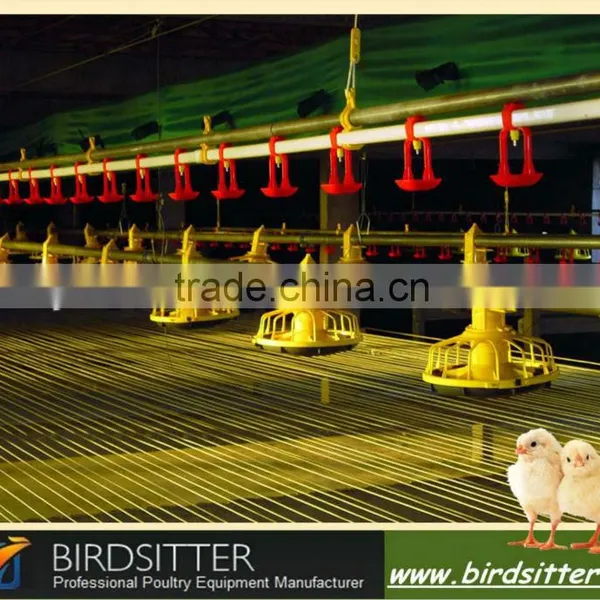

product show

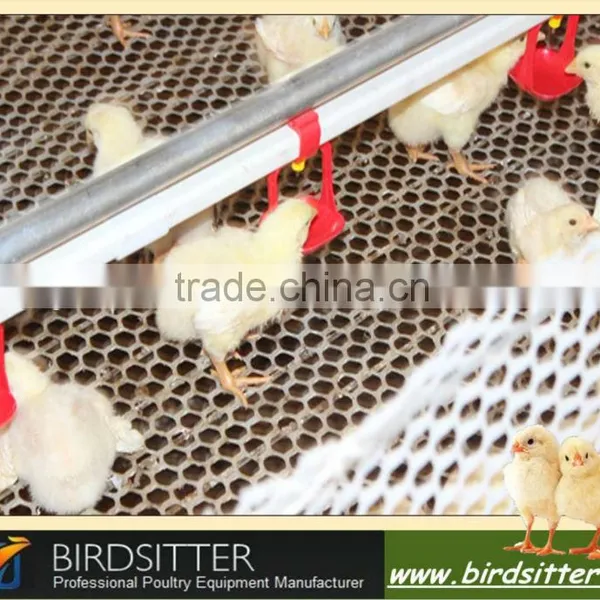

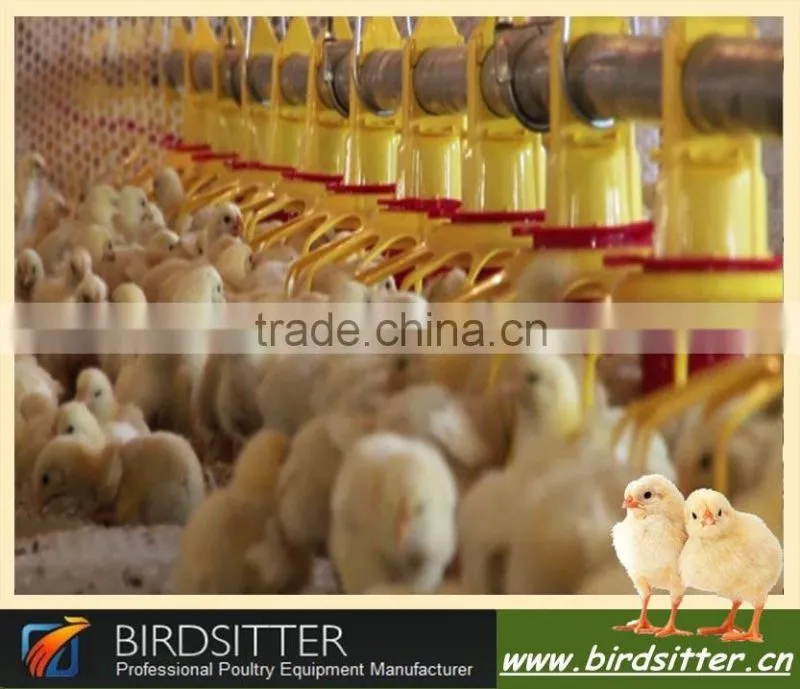

Nipple drinking system
Max drinking length |
150m |
Drinking pipe |
8/10/12/15nipples |
Drip cup |
Single-arm/double-arm drip cup |
Nipple diameter |
25mm(roundpipe)/22mm(square) |
Drinking capacity |
8-12 birds/nipple |
Hanging point |
3m |
Water rate |
≤90ml/min |
Winch rated load |
1500 pond |
Pipe material |
PVC material |
Winch shake |
1.5m |

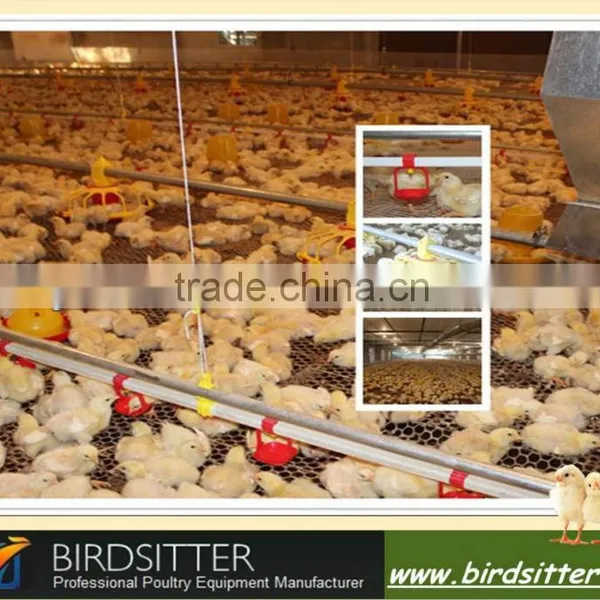

product show

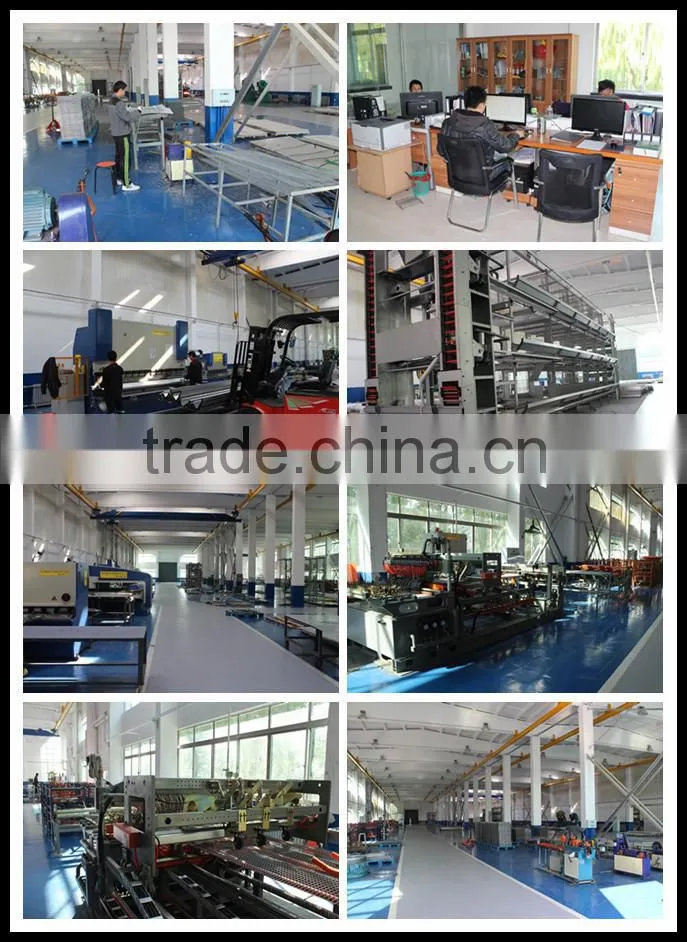

Here is our company trade show. plz check the pictures as below :
Now our company customer from all over the world .
Like:USA.Canada.CHile.Venezuela.Ecuador.Spain.Ireland.Ukraine.Tunisia.Egypt.South Africa.Saudi Arabia,Pakistan.Philippines,Australia. and so on.
We have Best factory and enginner team . Choose us. You will get all supports.
Choose Your Results - Finish Heavier or Quicker!
With BIRDSITTER feeding line , birds may reach mature weight a day or two earlier. Or, if your market date is fixed, birds may gain extra weight by harvest.
Give your birds a New change boost by changing their feed level with the only feeder that can do it both gradually and automatically ... BIRDSITTER's Feeding line And drinknig line !
Our company has passed ISO9000 Quality Assurance System Certification,to produce first-class products,build the highest and best projects as the goal,our company works towards systems,intelligence,international development direction ,and has independent import and export rights.We are manufacture in poultry equipment more than 15 Years. Click our website or send enquiry to us now.
Give us a chance,we will give you a best future!
FAQ:
1.Q :if i want to need all equipment ,and also need a best price ,what should i do ?
A: plz let us to know:1.the size of your poultry house,(the length and the width)
2.the quantity of chciken you will going to raise
3.the weight of chicken when you sale to the market
2.Q: what's the material of feeding pan and feeding pipe?
A: the material of feeding pan is ABS.
the material of feeding pipe is galvanized pipe.
3.Q: what's the material of nipple ?
A:the nipple material consist of the plastic and stainless steel.the stainless steel grade is :304.
4.Q: what's the material of nipple pipe?
A:ABS
5.Q: how much is the life of your products?
A:10 Years
6.Q:Do you have any certificate?
A:ISO9000&NTSQP
7.Q:Sample available?
A:yes. but the client charge for the freight fee.
You can be confident .Because We Believe Quality.
Do not wait ,send inquiry to us! You will get all service and support form us. We can provide Key project from start to end!
Send inquriy Now!! Friend.
