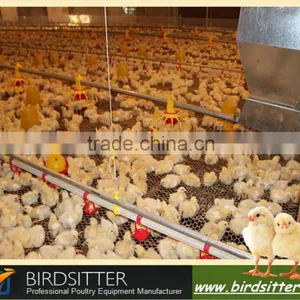

chicken poultry shed design
(BRAND: BIRDSITTER)
Consist of:
1.Pan feeding system
2.Nipple drinking system
3.Main feeding system
4.Environment control system
5.Exhaust fan ventilation system
6. Cooling pad system
7.Heating system
8.High pressure sprayer system
For these Systems metioned above, BIRDSITTER focus on best Professional
feeding and drinking system
Pan feeding system
Feeder pan is the core of the feeding system. The pan feeding system is solid and
reliable through the application of high quality material and components. The pan is
impactproof and extremely resistant to different types of cleaning infection and
chemical products used on poultry farm. Feed is delivered from the hopper to fulfill
the feed pan one by one through delivery pipe. When the entire feed line is full of
feed, control box will stop the motor from working, and when the feed is eaten up,
control box will start the motor again.
Pan feeding system consist of:
1.feeder pan
2.Galvanized pipe (3m/unit)
3.Anti-roost wire
4.Hanging system
5.Driving system
6.Electric box
7.Control box
8.Winch and winch shake
9.Controlling pan
10.Accessories needed
11.Hopper
Max feeding length |
150m |
Feeding pan grids |
4 for duck and 14 for broiler |
Feeding pipe unit |
3m |
Winch rated load |
3500 pond |
Hopper capacity |
110L-150L |
Driving motor |
0.75W 350V |
Feeding pan |
3m/3holes/unit 3m/4holes/unit |
Feed pan colour |
Red yellow/ grey yellow |
Feeding pipe |
Ø45mm |
Hanging point |
3m |
Feeding pan |
45-60 birds(<=2.5kg)/pan |
Hanging wire |
steel |
Nipple drinking system consist of:
1.drip cup
2.Nipples
3.Nipple Drinking lines and tube
4.Winch and winch shake
5.Water meter, medical pump,decompression filter and pressure regulator
6.Main water system
7.Hanging system
8.Head /middle water inlet system
9.End water outfall system
Max drinking length |
150m |
Drinking pipe |
8/10/12/15nipples |
Drip cup |
Single-arm/double-arm drip cup |
Nipple diameter |
25mm(roundpipe)/22mm(square) |
Drinking capacity |
8-12 birds/nipple |
Hanging point |
3m |
Water rate |
≤90ml/min |
Winch rated load |
1500 pond |
Pipe material |
PVC material |
Winch shake |
1.5m |
