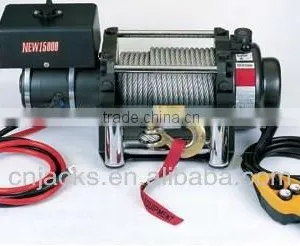

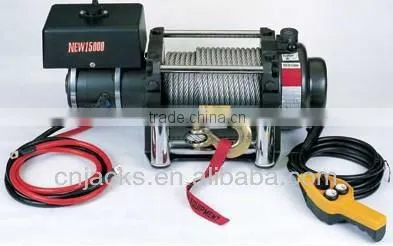

Help CenterElectric Winch 15000lbs
Related Products
Electric winches are preferred over hydraulic driven and mechanical winches by many offroad drivers. One reason for the preference is they utilize electric motors that are battery driven; plus they are easy to install. Electric winches also require no other systems to be added to the vehicle.
Cnjacks electric winches provide the means to free your vehicle by yourself. You can load cars, tractors, boats or mowers onto trailers. You can even remove tree stumps and shrubs or free your friend's car ... the possibilities are endless.
Model Nr.: Electric Winch_New 15000
Truck Electric Winch
Specs.:
Rated Line Pull: 15000lbs (6804kgs)
Motor(series wound): 4.2kw/5.5hp(12v); 5.5kw/7.5hp(24v)
Gear Reduction Radio: 450:1
Cable( dia.X L): dia. 7/16" x 92' (dia.11mm x 28m)
Drum Size( dia. X L): dia. 3.5 x 8.8 ( dia.89mm x 222mm)
Mounting bolt pattern: 10 x 4.5 (254mm x 114.3mm
Overload dimensions ( L x W x H): 23.07 x 8.1 x 9.57 (586mm x 225mm x 243mm)
Weight: 162.9lbs (73.88kgs)
Line Pull |
Line Speed Ft/min (m/min) |
Current A |
Layer |
Rated Line Pull Lbs(kgs) |
Total Rope On Drum Ft(m) |
||
Lbs(kgs) |
12V DC |
24V DC |
12V DC |
24V DC |
1 |
15000(6804) |
19 (6.0) |
0 |
15(4.6) |
164.8 |
60 |
40 |
2 |
12000(5443) |
42 (13.0) |
80003629 |
8.2 (2.5) |
8.5 (2.7) |
220 |
123 |
3 |
10100(4581) |
68 (21.0) |
100004536 |
6.0 (1.9) |
6.8 (2.1) |
260 |
145 |
4 |
8720(3955) |
92 (28.0) |
120005443 |
5.6 (1.7) |
6.0 (1.8) |
300 |
170 |
|
|
|
150006804 |
4.3 (1.3) |
5.0 (1.5) |
330 |
210 |
|
|
|
Features:
Free spooling cluth
Auto braking action
Series would motor
Specially designed differential gearing for heavy duty
Specially designed shape for convenient installation and good looking
Remote control with control box and swith
DC 12V or DC 24Vpower drive
Other products: electric winch, hydraulic winch, ATV winch, 4WD winch, truck winch
