Hantek DSO5102B Digital Storage Oscilloscope

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

DSO5102B

Contact Supplier Request Quote Chat Now

Shenzhen Liyang Welding Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name LY

Model Number DSO5102B

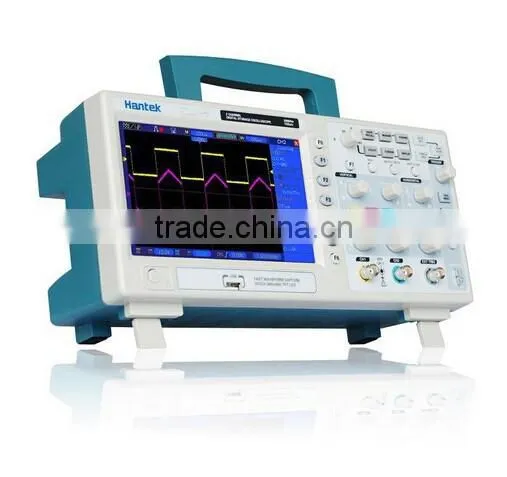

Hantek DSO5102B Digital storage oscilloscope

Product Description

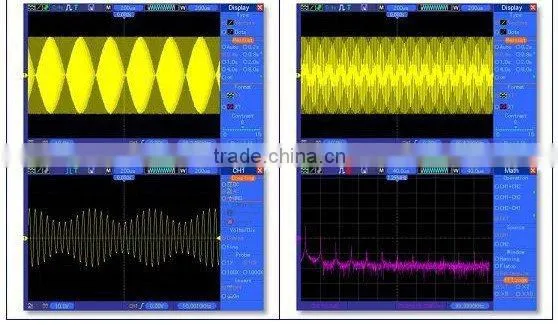

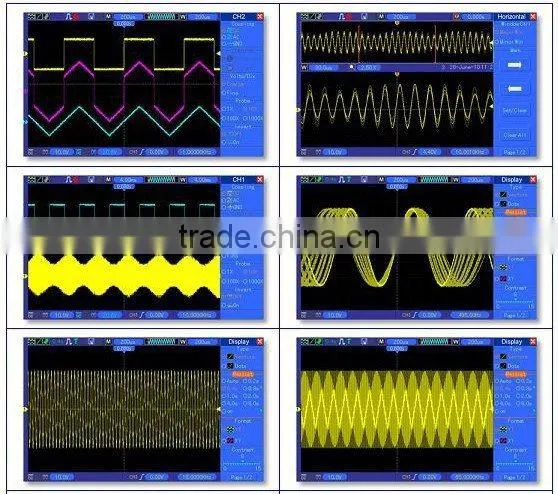

Features:
? 200/100/60MHz bandwidths
?1GSa/s Real Time sample rate
? Large (7.0-inch) color display,WVGA(800x480)
? Record length up to 1M
? Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
? USB host and device connectivity, standard
? Multiple automatic measurements
? Four math functions, including FFTs standard
? Provides software for PC real-time analysis

Specifications:

Model :DSO5202B, DSO5102B , DSO5062B
Bandwidth :200MHz 100MHz 60MHz
Real-time Sample Rate : 1GSa/s
Equivalent Sample Rate : 25GSa/s
Record Length(Sample Points)
Single-channel: Maximum 1M; Dual-channel:Maximum 512K (4K,16K,40K optional)
SEC/DIV Range: 4nS/div-40S/div (in a 2, 4, 8 sequence)
Delay Time Accuracy :500ps
Vertical:A/D Converter 8-bit resolution, each channel sampled simultaneously
VOLTS/DIV Range:2mV/div~5V/div at input BNC
Position Range:
±50V(5V/div),±40V(2V/div~500mV/div),2V(200mV/div~50mV/div)±400mV(20mV/div~2mV/div)
Bandwidth Limit:20MHz
Rise Time at BNC:
≤1.7ns
≤3.5ns
≤5.8ns
DC Gain Accuracy:
±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div
±3% for Sample or Average acquisition mode, 5V/div to 10mV/div

Trigger
Trigger Sensitivity
(Edge Trigger Type)
DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full
EXT(Typical) 200mV from DC to 40MHz
EXT/5(Typical) 1V from DC to 40MHz
AC: Attenuates signals below 10Hz

HF Reject: Attenuates signals above 80kHz

LF Reject: Attenuates signals below 150kHz

Noise Reject: Reduces trigger sensitivity
Trigger Level Range
CH1,CH2: ±8 divisions from center of screen
EXT: ±1.2V EXT/5: ±6V
Trigger Level Accuracy,
typical (Accuracy is for signals having rise and fall times ≥20ns)
CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen)
EXT: ±(6% of setting + 40mV)
EXT/5: ±(6% of setting + 200mV)
Holdoff Range:100ns-10s
Trigger Type:Edge
Trigger on the rising or falling edge
Pulse Width
Trigger (when >,<,=,≠) on positive or negative pulses
Pulse Width Range: 20ns-10s

Video
Trigger on an NTSC, PAL, or SECAM standard video signal
Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)
SlopeTrigger (when >,<,=,≠) on a positive or negative slope
Set Time: 20ns–10s
Overtime from the rising or falling edge
Set Time: 20-10s
Alternate Internal trigger on edge, pulse width, video or slope
Measurement
Cursors
Manual: The difference between voltage cursors V; the difference between time cursors T; 1/T calculated by Hz.
Tracing: The voltage and time at a waveform point
Automatic
Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width
Display
Type
Right angle 7"TFT 16-digit color LCD
Resolution :800*480 dots
Contrast: 16 gears, with the progress bar to show adjustment
Interface USB host and USB slave

Power Supply Voltage:
100-120VACRMS(±10%),45Hz to 440Hz,CAT II
120-240VACRMS(±10%),45Hz to 66Hz,CAT II
Power :<30W Fuse 2A, T rating, 250V Mechanical

Software:
Operating system: Windows NT, Windows 2000, Windows XP ,VISTA
