Rear View Mirror Gps Navigation With Dvr Camera

Rear View Mirror Gps Navigation With Dvr Camera photo-1
US$ 140 - 159.5 MOQ: 10 Sets
Key Specifications
Get Latest Price
Screen Size:
Other, 4.3"
Screen Type:
16:9
Placement:
Other, mirror position
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Screen Size Other, 4.3"
Screen Type 16:9
Placement Other, mirror position
Combination Bluetooth-Enabled, Built-in GPS, DVD Player, MP3 / MP4 Players, Touch Screen, TV
Certification CE and FCC certificates
Car Make all the models
Place of Origin Guangdong, China
Brand Name Auto-vox
Model Number AX-T2000

Specifications

1.1080P GPS navigation
2.HD Multimedia, DVR camera
3.FM radio transmission
4.Bluetooth handsfree
5.Touch screen

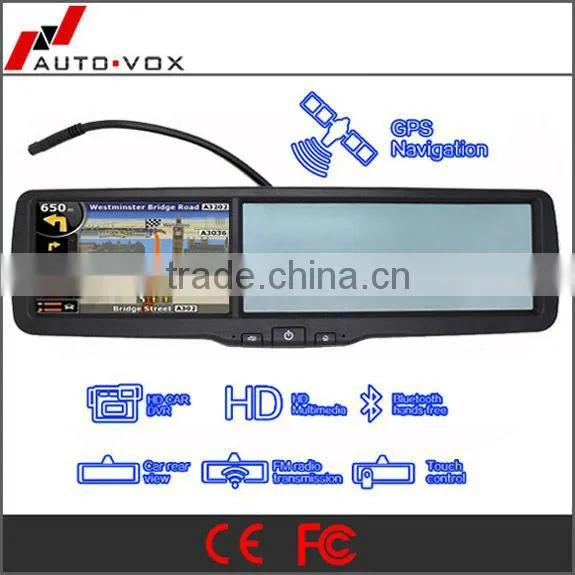

4.3 inch multi-function rear view mirror monitor with GPS navigation,HD car DVR,Bluetooth hands free,car rear view,HD multimedia,FM radio transmission,Touch control.





Rear view mirror gps navigation with dvr camera



 KEY FEATYRES:



* Latest A10 chip-1.3GHz + DSP (Dual Core)
* WCE6.0 system, RAM: DDR3-512MB
* Fast converting time: 0.1s from GPS to DVR
* Quick boot time: 19s or less (hot boot)
* DVR continues recording while GPS is operating
* Record rear view & front view image simultaneously
* Full format HD multimedia (1080P)
* Built-in GPS Antenna, Built-in blue tooth (3.0version), built-in FM transmission

* Uiversal & special mirror brackets for options, special bracket is easier fit!





Rear view mirror gps navigation with dvr camera



GPS Navigation: support multi-country map

DVR (720P): Video & Audio recording / Play video / Photo shooting

Two external video inputs

Bluetooth hands free with incoming call display & on screen dialing

HD multimedia (1080P): Full format player for music / movie / picture / electronic book,

USB/SD ( mini USB Port )

FM Transmission: The music played can be received by car OE radio and output by car OE stereo.

Audio output: FM Transmit output & built-in speaker output

System and Language setting





Rear view mirror gps navigation with dvr camera    Rear view mirror gps navigation with dvr camera







Item

Type

Technical specifications











GPS

Satellite receive Channels

24

Positioning accuracy

<15M

Positioning time

Hot start<19s,Warm start<37s, Cold start<60s

Refresh Frequency

1HZ

Map storage

TF Card

Number of speakers

2

Central Frequency

1575.42MHz

Antenna type

Built-in

Monitor

Display Screen

4.3”, 480*272 TFT-LCD (Digital), Aspect Ratio :16:9

Touch Screen

4.3 inches four wire resistance type

Brightness

350cd

Angle

60° or bigger horizontal from left to right,

50° or bigger vertical from up to down







DVR

Pixel

3.2 million 720p

View Angle

120°

Resolution

640*480

Memory

Support 512M-32G TF Card

File Storage Format

MP4

 Blue tooth

Output power

1W/8Ω

Microphone sensitivity

2*-44dB

Blue tooth version

3.0

Transmission arrange

10 meters

Frequency

2400-2480MHZ





System

Adapter Voltage

DC 12V(±10%)

Max Current

<0.5A

Operate Temperature

-10°C - +55°C

Storage Temperature

-20°C - +70°C





  Rear view mirror gps navigation with dvr camera



  Rear view mirror gps navigation with dvr camera







  Bracket details:



Rear view mirror gps navigation with dvr camera









  Trade shows:

 Rear view mirror gps navigation with dvr camera

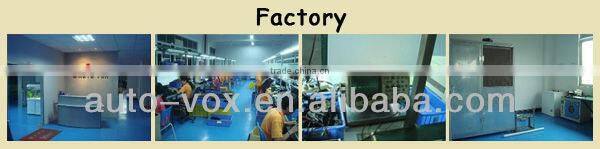

About us


As a well established manufacturer of car parking sensor, car rear view system, for over 6 years, we have gained trust from our customers world wide,owing to our beliefs in “Quality First”, “Customer Focus” and “Value-priced”. In recent years, we are devoting to cutting-edge products such as mirror monitor with GPS/DVR, intelligent parking assist system, CANBUS car alarm and etc.. To satisfy our customer best and increase our growth, we are constantly making innovative products. Cooperate with us, we serve you for your convenience, your concern and your content!





Rear view mirror gps navigation with dvr camera





...
