Specifications
1.Latest A10 chip+1.3GHz+WCE6.02.GPS,HD car DVR,Bluetooth hands free
3.FM,HD multimedia,touch screen
4.Backup camera system
Touch mirror monitor GPS and backup camera rear view mirror car monitor
KEY FEATYRES
* Latest A10 chip-1.3GHz + DSP (Dual Core)
* WCE6.0 system, RAM: DDR3-512MB
* Fast converting time: 0.1s from GPS to DVR
* Quick boot time: 19s or less (hot boot)
* DVR continues recording while GPS is operating
* Record rear view & front view image simultaneously
* Full format HD multimedia (1080P)
* Built-in GPS Antenna, Built-in blue tooth (3.0version), built-in FM transmission.
* Uiversal & special mirror brackets for options, special bracket is easier fit!
GPS Navigation: support multi-country map
DVR (720P): Video & Audio recording / Play video / Photo shooting
Two external video inputs
Bluetooth hands free with incoming call display & on screen dialing
HD multimedia (1080P): Full format player for music / movie / picture / electronic book,USB/SD ( mini USB Port )
FM Transmission: The music played can be received by car OE radio and output by car OE stereo.
Audio output: FM Transmit output & built-in speaker output
System and Language setting
SPECIFICATIONS
Item |
Type |
Technical specifications |
|
GPS |
Satellite receive Channels |
24 |
Positioning accuracy |
<15M |
|
Positioning time |
Hot start<19s,Warm start<37s, Cold start<60s |
|
Refresh Frequency |
1HZ |
|
Map storage |
TF Card |
|
Number of speakers |
2 |
|
Central Frequency |
1575.42MHz |
|
Antenna type |
Built-in |
|
Monitor |
Display Screen |
4.3”, 480*272 TFT-LCD (Digital), Aspect Ratio :16:9 |
Touch Screen |
4.3 inches four wire resistance type |
|
Brightness |
350cd |
|
Angle |
60° or bigger horizontal from left to right, 50° or bigger vertical from up to down |
|
|
DVR |
Pixel |
3.2 million 720p |
View Angle |
120° |
|
Resolution |
640*480 |
|
Memory |
Support 512M-32G TF Card |
|
File Storage Format |
MP4 |
|
Blue tooth |
Output power |
1W/8Ω |
Microphone sensitivity |
2*-44dB |
|
Blue tooth version |
3.0 |
|
Transmission arrange |
10 meters |
|
Frequency |
2400-2480MHZ |
|
|
System |
Adapter Voltage |
DC 12V(±10%) |
Max Current |
<0.5A |
|
Operate Temperature |
-10°C - +55°C |
|
Storage Temperature |
-20°C - +70°C |
FUNCTION OF CAMERA

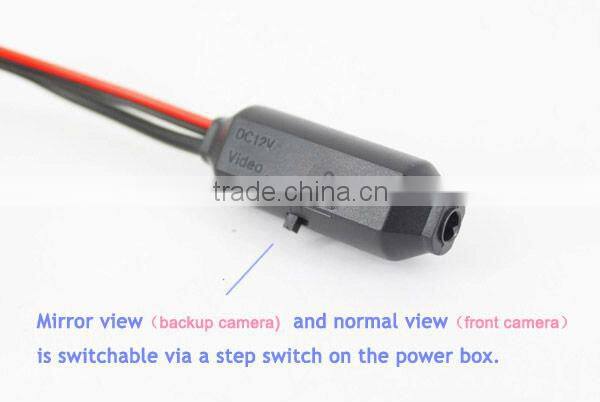

* Mirror view and normal view witchable.
* Pin nailed camera mounting at upper side of license-plate.
* Automatic white balance function.
* Mini size: diameter:18.5mm, length:22mm.
* Pin nailed installation, hiding mounting at upper side of license-plate.
BRACKET DETAILS
...
