Specifications
1.WCE6 + A10chip + 1.3GHz2.GPS navigation
3.Bluetooth handsfree
4.DVR camera
5.HD multimedia

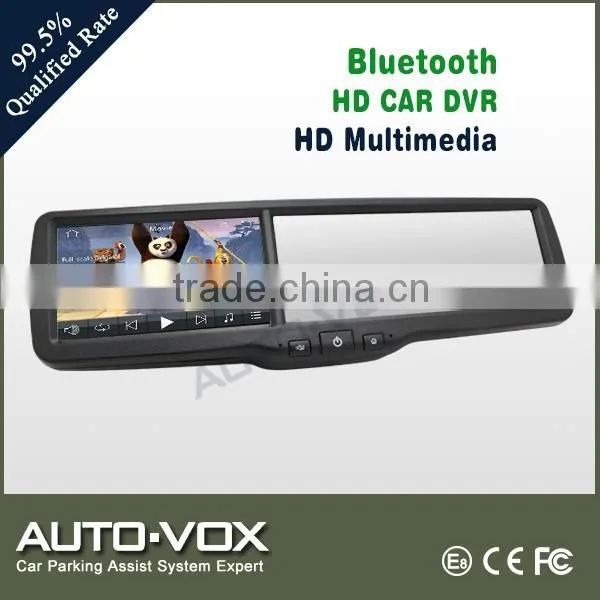

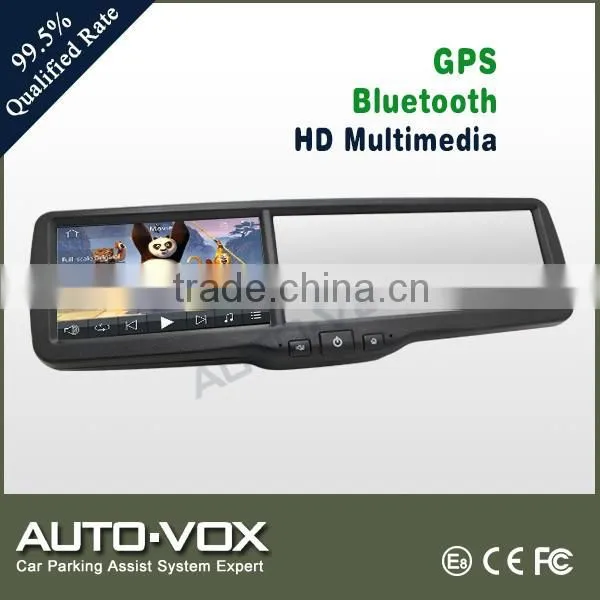

4.3 inch multi-function rear view mirror monitor with GPS navigation,HD car DVR,Bluetooth hands free,car rear view,HD multimedia,FM radio transmission,Touch control.
KEY FEATYRES:
* Latest A10 chip-1.3GHz + DSP (Dual Core)
* WCE6.0 system, RAM: DDR3-512MB
* Fast converting time: 0.1s from GPS to DVR
* Quick boot time: 19s or less (hot boot)
* DVR continues recording while GPS is operating

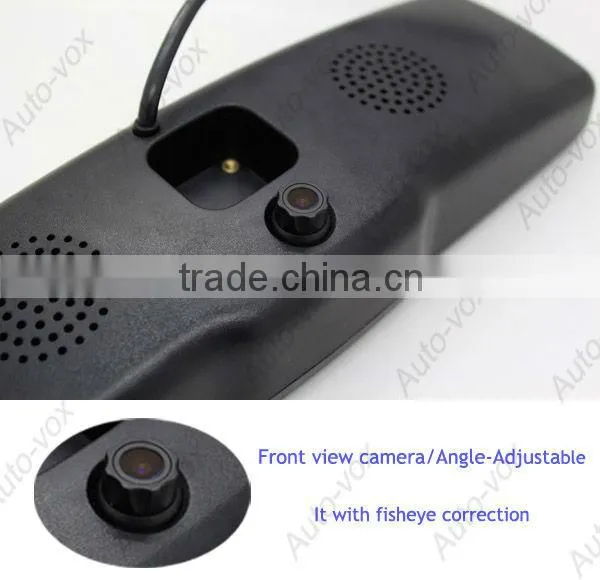

* Record rear view & front view image simultaneously
* Full format HD multimedia (1080P)
* Built-in GPS Antenna, Built-in blue tooth (3.0version), built-in FM transmission
* Uiversal & special mirror brackets for options, special bracket is easier fit!

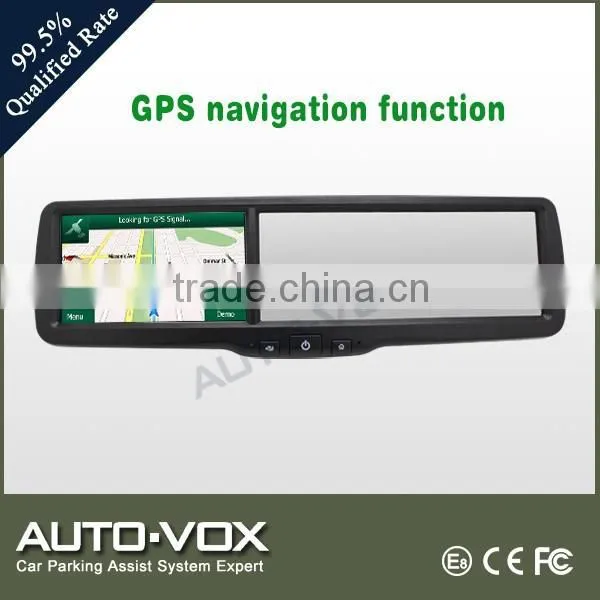

GPS Navigation: support multi-country map

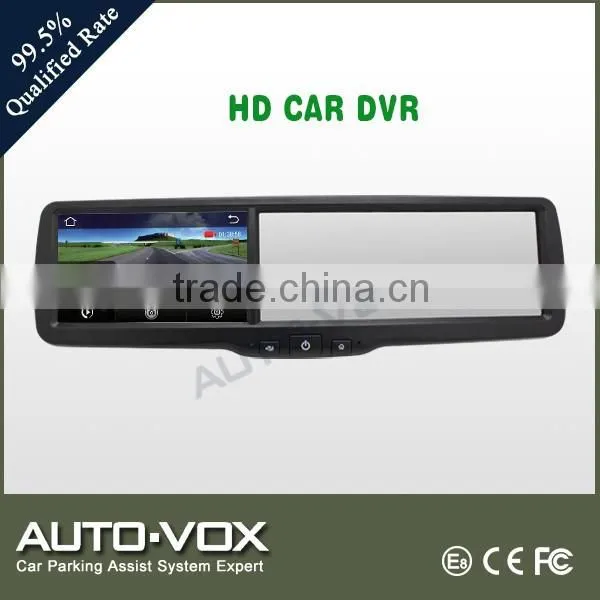

DVR (720P): Video & Audio recording / Play video / Photo shooting
Two external video inputs

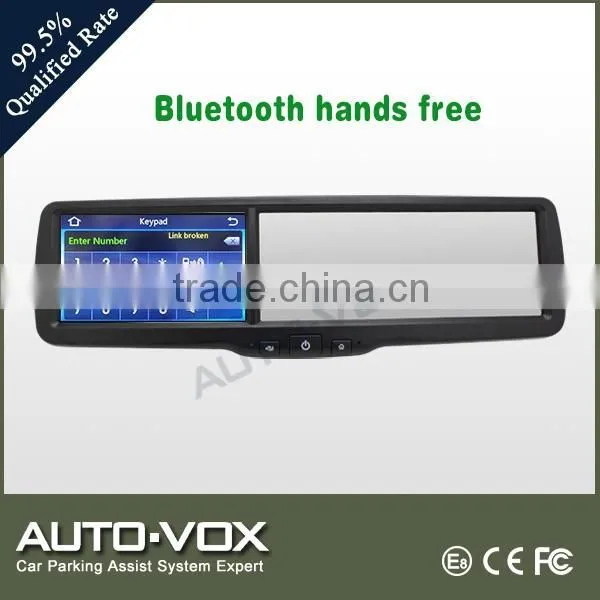

Bluetooth hands free with incoming call display & on screen dialing
HD multimedia (1080P): Full format player for music / movie / picture / electronic book,

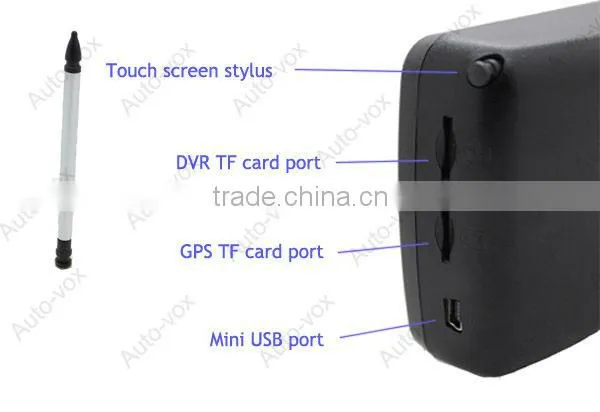

USB/SD ( mini USB Port )

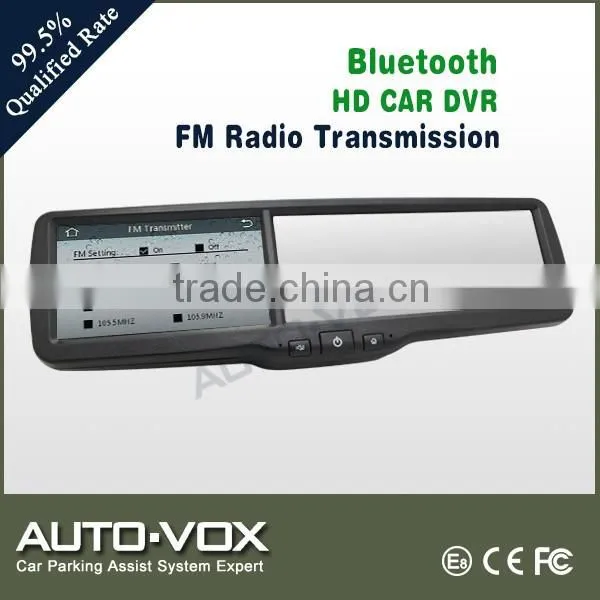

FM Transmission: The music played can be received by car OE radio and output by car OE stereo.
Audio output: FM Transmit output & built-in speaker output
System and Language setting
Item | Type | Technical specifications |
GPS | Satellite receive Channels | 24 |
Positioning accuracy | <15M | |
Positioning time | Hot start<19s,Warm start<37s, Cold start<60s | |
Refresh Frequency | 1HZ | |
Map storage | TF Card | |
Number of speakers | 2 | |
Central Frequency | 1575.42MHz | |
Antenna type | Built-in | |
Monitor | Display Screen | 4.3”, 480*272 TFT-LCD (Digital), Aspect Ratio :16:9 |
Touch Screen | 4.3 inches four wire resistance type | |
Brightness | 350cd | |
Angle | 60° or bigger horizontal from left to right, 50° or bigger vertical from up to down | |
DVR | Pixel | 3.2 million 720p |
View Angle | 120° | |
Resolution | 640*480 | |
Memory | Support 512M-32G TF Card | |
File Storage Format | MP4 | |
Blue tooth | Output power | 1W/8Ω |
Microphone sensitivity | 2*-44dB | |
Blue tooth version | 3.0 | |
Transmission arrange | 10 meters | |
Frequency | 2400-2480MHZ | |
System | Adapter Voltage | DC 12V(±10%) |
Max Current | <0.5A | |
Operate Temperature | -10°C - +55°C | |
Storage Temperature | -20°C - +70°C |

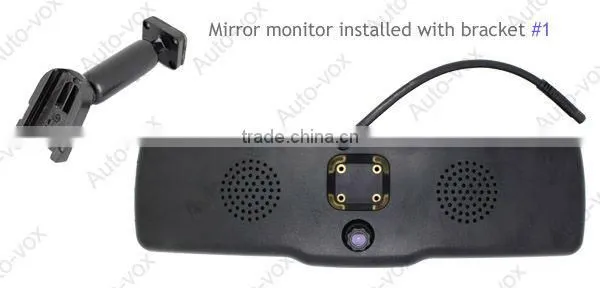

Bracket details:
Trade shows:

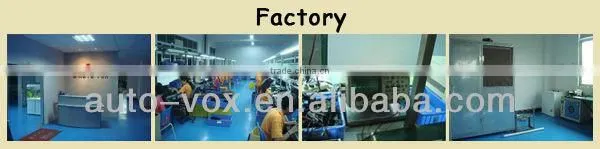

As a well established manufacturer of car parking sensor, car rear view system, for over 6 years, we have gained trust from our customers world wide,owing to our beliefs in “Quality First”, “Customer Focus” and “Value-priced”. In recent years, we are devoting to cutting-edge products such as mirror monitor with GPS/DVR, intelligent parking assist system, CANBUS car alarm and etc.. To satisfy our customer best and increase our growth, we are constantly making innovative products. Cooperate with us, we serve you for your convenience, your concern and your content!
