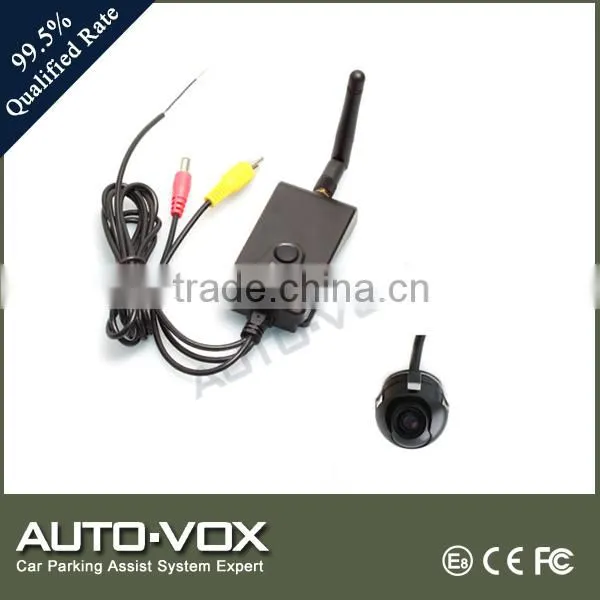

Waterproof Security Wifi Reversing Car Camera

Specifications

Mirror view and normal view switchable

Waterproof security wifi reversing car camera
Support iPhone, iPad and Android device
170 degree wide angle

Key features:

360 degree reverse camera:

* Mirror view and normal view switchable

* Adopt digital high-resolution imaging process:480TV lines

* Extra-low illumination of 0.3 Lux for clear nightvision

* Automatic white balance function

* Viewing angle: 170 °

* Water-proof,shock-proof and anti-jammingfunctions

* Minisize: diameter: 18.5mm, length 20 mm

* Hiding mounting

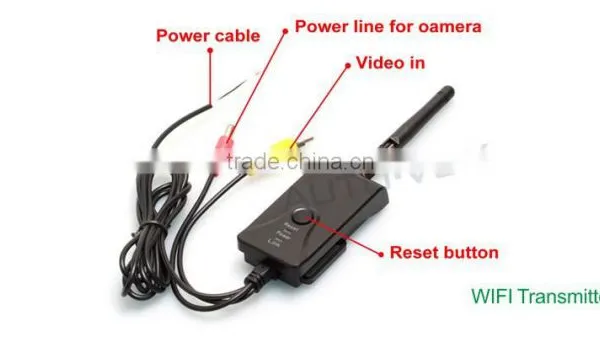

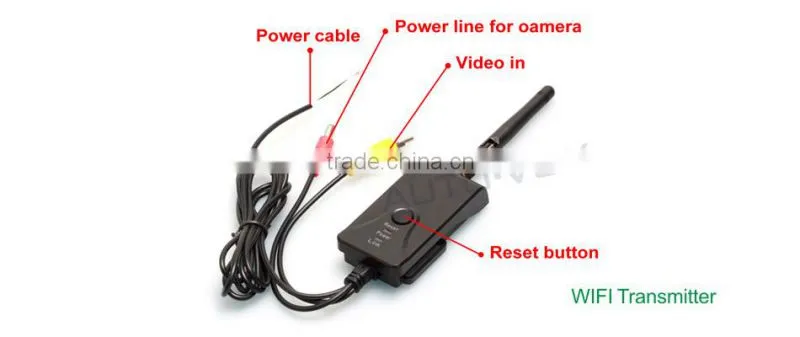

WIFI transmitter:

*WiFi transmission, no need router, no need internet.
*Support iPhone, iPad, and Android phone
*Transmission distance with no obstacle 150meters
*The terminal shall support Android 2.2 or above, and iOS shall support Version 4.3 or above.
*D36Easy installation.

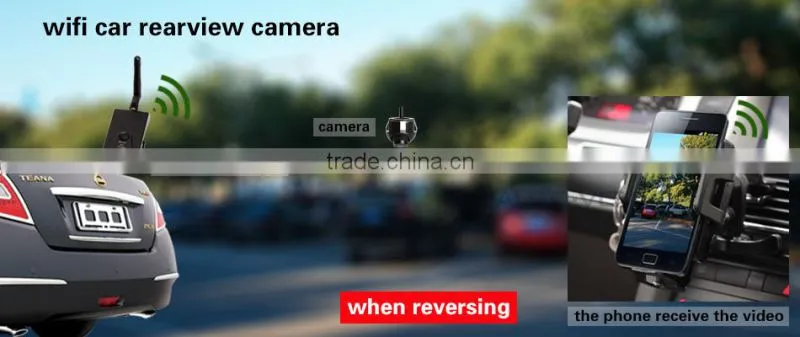

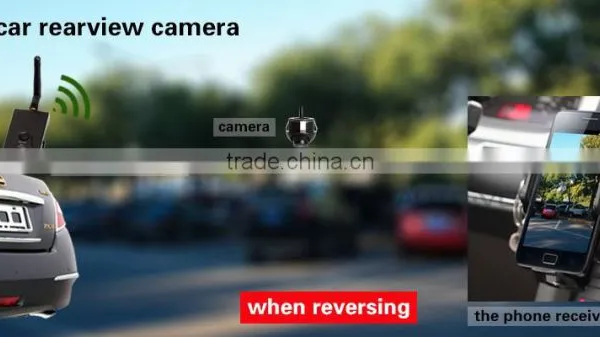

*Aplication: For Car reverse /backup system, for FPV sytem, for CCTV application

Specifications:

Sensor: CMOS
TV System: NTSC
Effective Pixel: 628×586 pixels
Electronic Shutter: 1/50-1/100,000sec
Sync System: Internal
Resolution: 480 TV Lines
Lens Angle: 1.8mm/170
Sensor Area: 5.961mm×4.276mm
Video Output: 1.0Vp-p 75Ohm
S/N Ratio: More than 48db
Waterproof: Ip68
Minimum Illumination: 0.2Lux/F1.5(NO LED)
Current Consumption: No More 300mA
Power Supply: DC12V ± 10%
Operation Temperature: -30 ~ +60 (Rh95% MAX)
Storage Temperature: -40 ~ +70 (Rh95% MAX)
Other Items: Automatic white balance,Agc and BLC

Transmitting frequency 2400MHz-2483.5MH
Modem mode 802.11b: DSSS(CCK,DQPSK,DBPSK)
802.11g/n: OFDM(BPSK,QPSK,16QAM,64QAM)
Transmission distance with no obstacle >150m
Frame rate 30fps
Video resulutions VGA
Video compression H.264
Wireless protocols IEEE 802.11b, IEEE 802.11g
IEEE 802.n(1T1RModes)
Power supply DC 12V
Consumption current 150mA (Max)
Encryption mode WPA2
Rainproof Yes
Weight 80+-5g
Dimensions 78*43*18mm
Operation tempreature -10°C~+50°C
Operation humidity 15%~85% RH
