Universal Water Proof Car Rear View Camera

Universal Water Proof Car Rear View Camera photo-1
Universal Water Proof Car Rear View Camera photo-2
Universal Water Proof Car Rear View Camera photo-3
Universal Water Proof Car Rear View Camera photo-4
Universal Water Proof Car Rear View Camera photo-5
Universal Water Proof Car Rear View Camera photo-6
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
auto-vox
Model Number:
RVC-CMD12
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name auto-vox
Model Number RVC-CMD12

Specifications

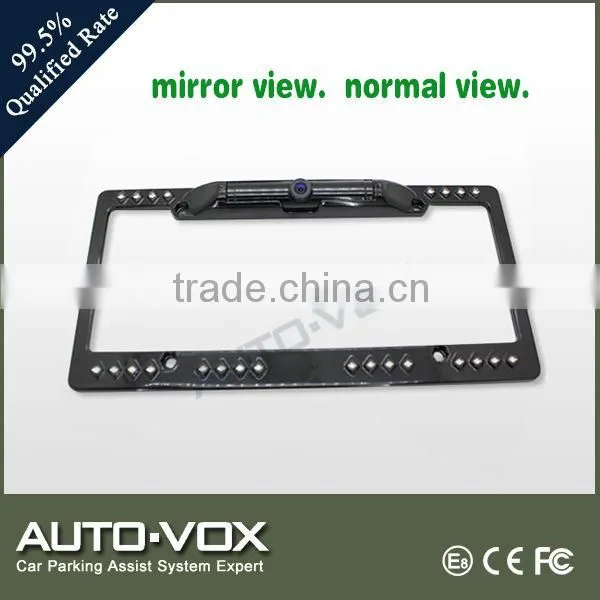

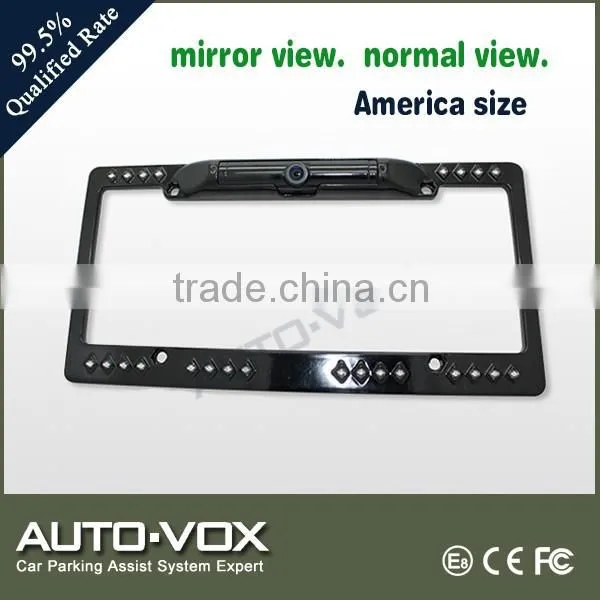

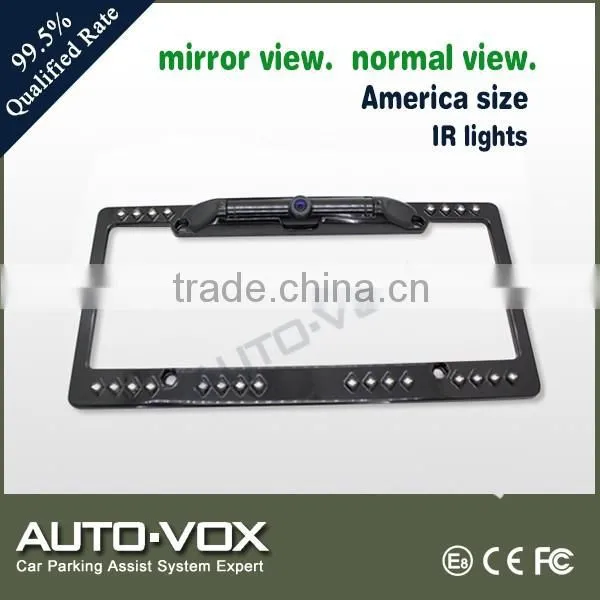

Mirror view and normal view switchable
Viewing angle: 170 degree
Water-proof,shock-proof and anti-jamming functions



universal water proof car rear view camera



  • Mirror view and normal view switchable
  • Adopt digital high-resolution imaging process: 480TV linesExtra-low illumination of 0.3 Lux for clear night visionAutomatic white balance function
  • Viewing angle:120°

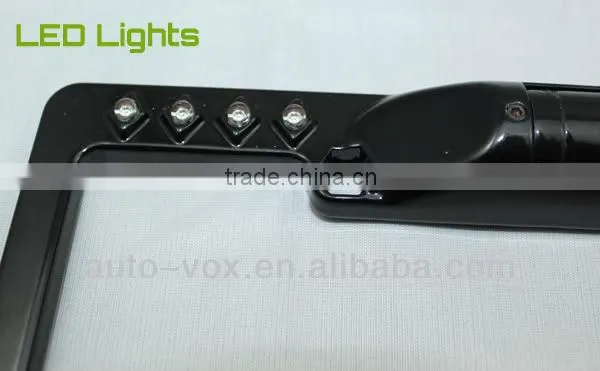

  • With LED light
  • Water-proof,shock-proof and anti-jamming functions

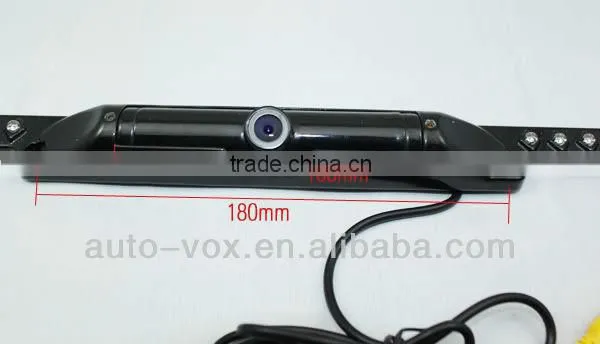

  • Mini size: diameter:18.5mm, length:22mm
  • Pin nailed installation, hiding mounting at upper side of license-plat

universal water proof car rear view camerauniversal water proof car rear view camera




Mirror view and normal view is switchable via a step switch on the power box.



Mirror view is switched on when deliveryYou can switch it to normal view subject to your specific needs.



Mirror view is usually used for rear view while normal view is usually used for front view.



universal water proof car rear view camera







Image device

 1/4-inch colour

 TV system

 PAL or NTSC

 Resolution

  480 TV lines

 Electric Shutter

PAL:625Lines.25Field /sec   NTSC :720Lines.25Field/sec

 Effective pixels

PAL: 720X 576  NTSC: 720X 480

Minimum illumination

  0.3Lux

Viewing angle

  120 degrees (diagonal)

 S/N ratio

  >48dB (AGC-OFF)

 Video output

  RCA connector, 1.0vp-p, 75ohm

 Current consumption

  ≤120mA

 Power supply

  DC8V-12V

 Operating temperature

  -30 to 65 degrees centigrade, RH95% Max.

 Storage temperature

  -35 to 7degrees centigrade, RH95% Max.

Other items

  automatic white balance, AGC and BLC

Water-proof

  Yes, to IP68 standard





universal water proof car rear view camerauniversal water proof car rear view camerauniversal water proof car rear view camera





universal water proof car rear view camerauniversal water proof car rear view camera
