Specifications
WIFI Transmitter With Car 360 Eyeball wireless car front view camera compatible Iphone, IPad, Android systemWIFI Transmitter With Car 360 Eyeball wireless car front view camera
General description:

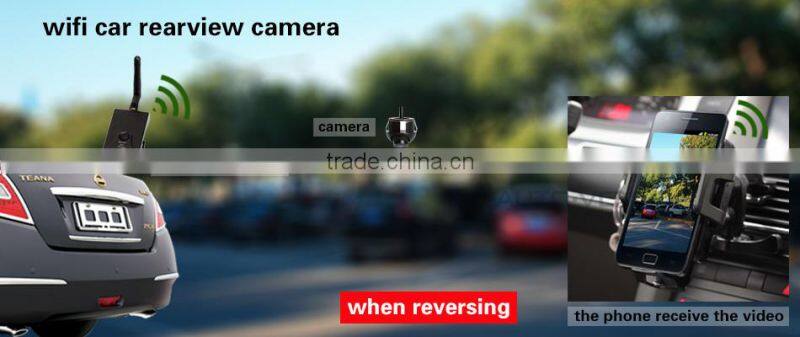

This WiFi transmitter comes with a car rear view camera, also called as car WiFi camera, every time you put your car into reverse gear, the camera can send video signal to the screen of your iPhone, iPad, and Android phone, but need to down load APP to your phone and open the APP firstly.
Pls note it must used with DC12V power supply (12V car), not for 24V truck, bus as well as other heavy duty vehicles.

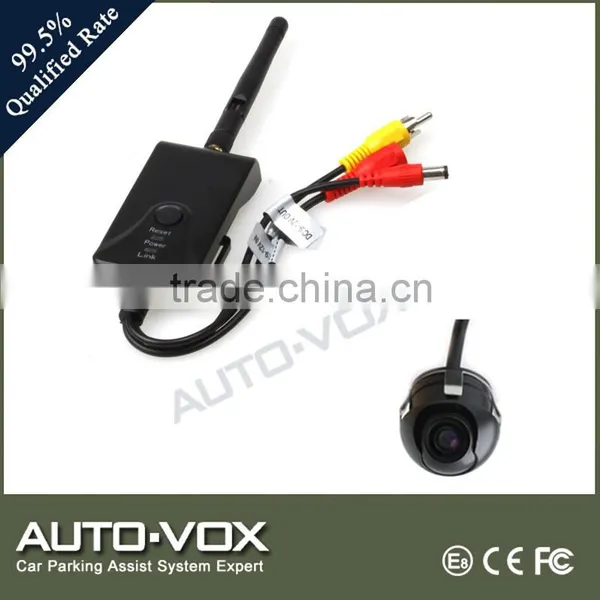

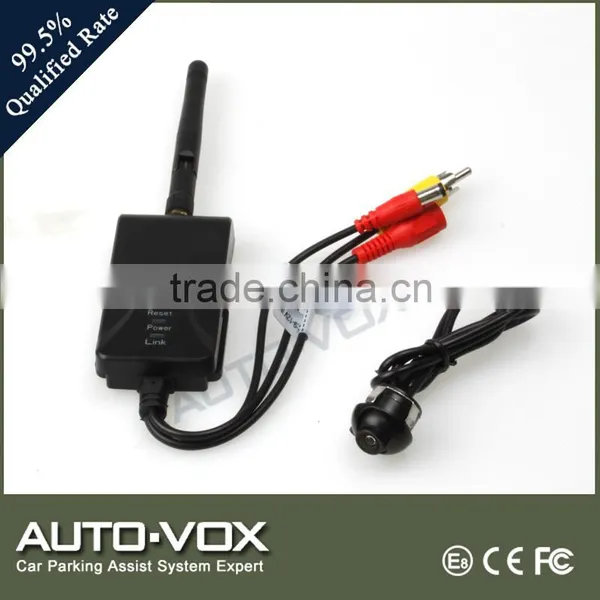

WIFI Transmitter and camera features
l WiFi transmission, no need router, no need internet.
l Support iPhone, iPad, and Android phone
l Transmission distance with no obstacle more than 150meters
l The client terminal shall support Android 2.2 or above, and iOS shall support Version 4.3 or above.
l Easy installation.

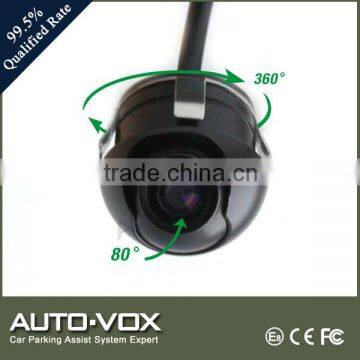

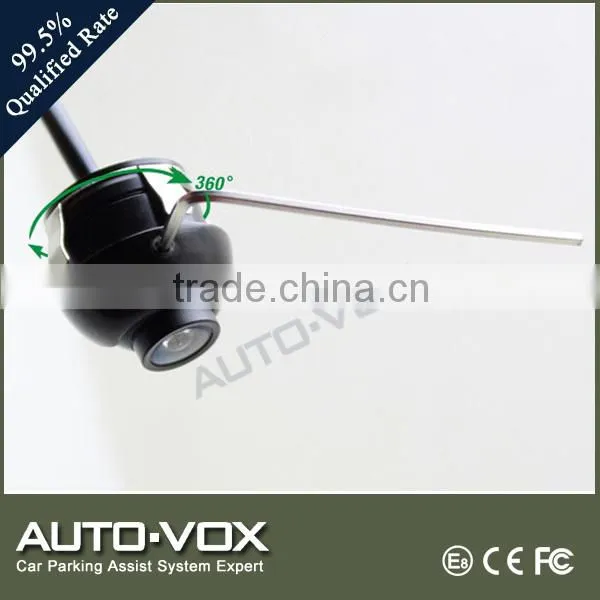

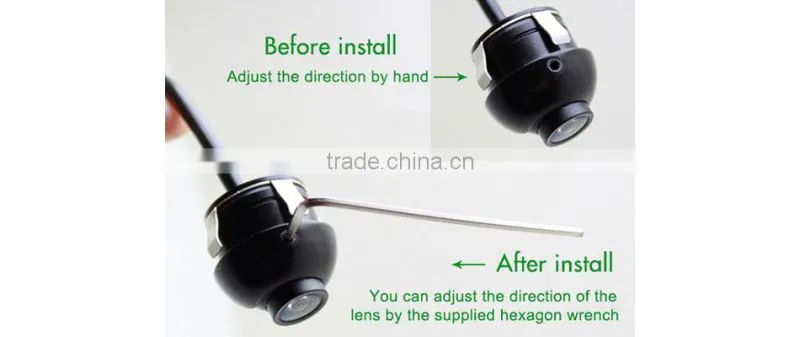

l Adjustable multiple angle camera viewing

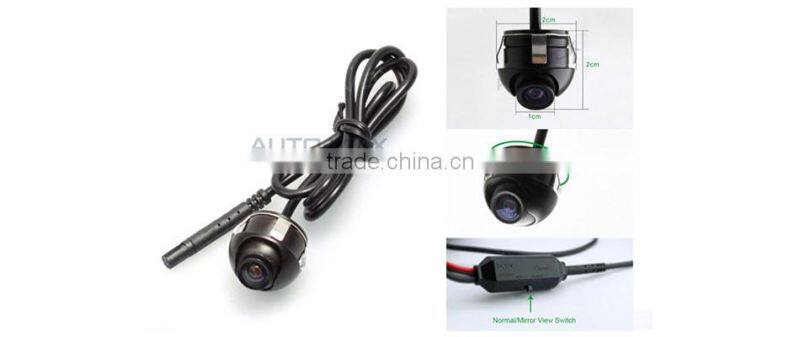

l With mirror & normal view switch (rear view and front view is selectable)
l Minimum illumination, digital compensation for clear night vision
l Camera & transmitter rainproof, dustproof and shockproof

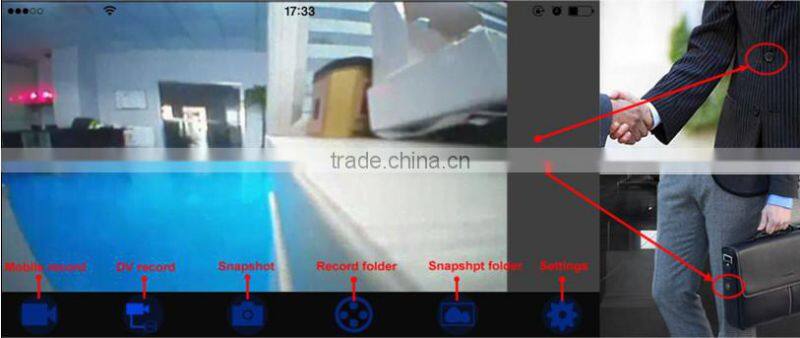

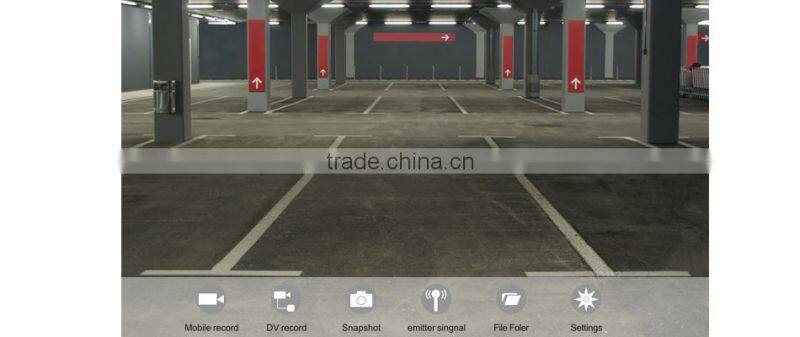

Install APP Soft Ware for Android(iOS) system client
- 1. Search ”WIFI AVIN” software from your google paly (APP store), and install it.
- 2. Connect your phone with the camera by the WIFI named “WIFI AVIN”
- 3. Open the app “WIFI AVIN” to get the video
- 4.
Application:

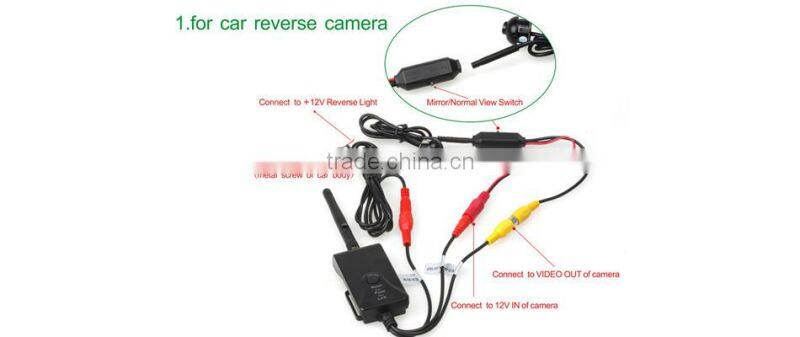

1. For Car reverse /backup system

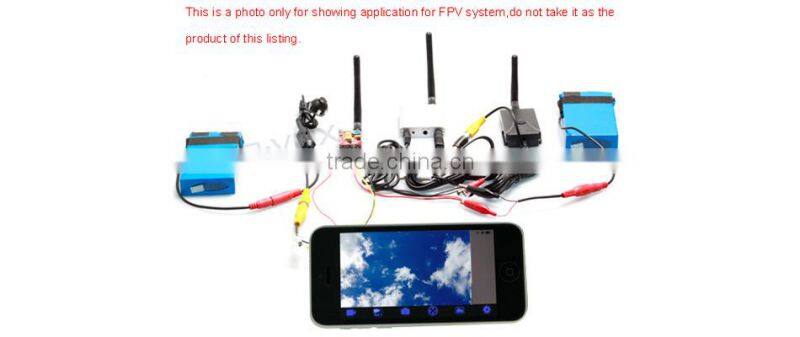

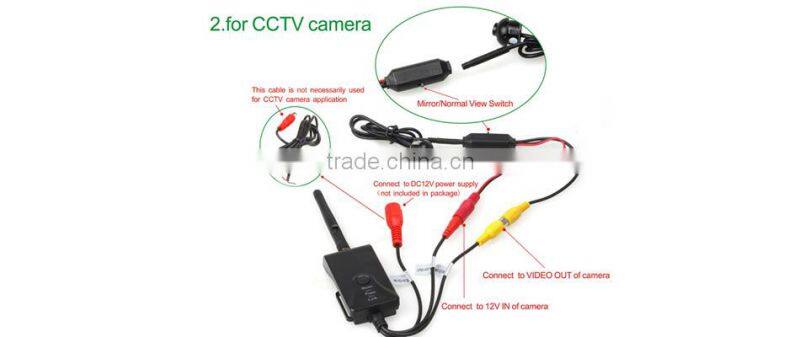

2. CCTV camera system application

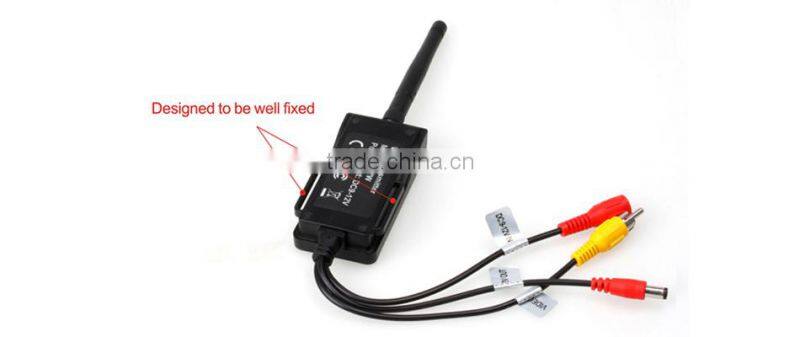

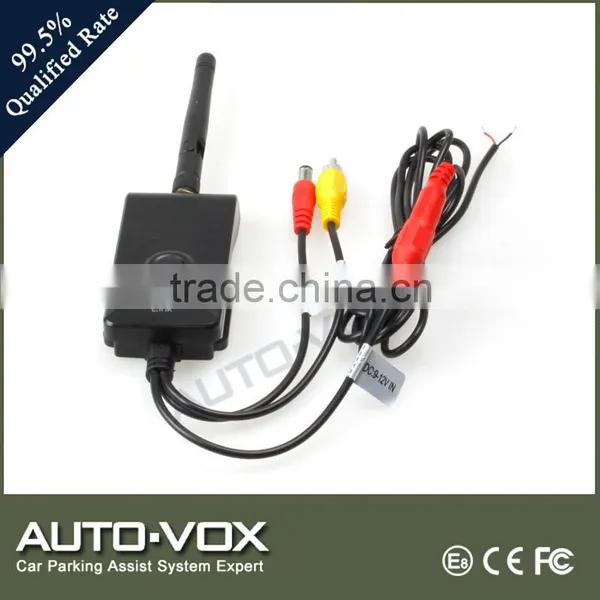

Specifications of WiFi transmitter
Item | Specifications | |
Transmitter | Transmitting frequency | 2400MHz-2483.5MH |
Modem mode | 802.11b: DSSS(CCK,DQPSK,DBPSK) | |
Transmission distance with no obstacle | >150m | |
Frame rate | 30fps | |
Video resulutions | VGA | |
Video compression | H.264 | |
Wireless protocols | IEEE 802.11b, IEEE 802.11g | |
Power supply | DC 12V | |
Consumption current | 150mA (Max) | |
Encryption mode | WPA2 | |
Rainproof | Yes | |
Weight | 80+-5g | |
| Dimensions | 78*43*18mm |
| Operation tempreature | -10℃~+50℃ |
Operation humidity | 15%~85% RH | |

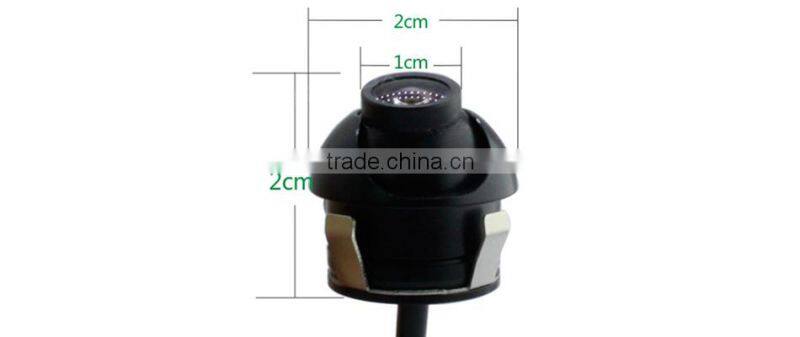

Technical Specifications of camera :
Sensor: CMOS
TV System: NTSC
Effective Pixel: 628×586 pixels
Electronic Shutter: 1/50-1/100,000sec
Sync System: Internal
Resolution: 480 TV Lines
Lens Angle: 1.8mm/170
Sensor Area: 5.961mm×4.276mm
Video Output: 1.0Vp-p 75Ohm
S/N Ratio: More than 48db
Waterproof: Ip68
Minimum Illumination: 0.2Lux/F1.5(NO LED)
Current Consumption: No More 300mA
Power Supply: DC12V ± 10%
Operation Temperature: -30 ~ +60 (Rh95% MAX)
Storage Temperature: -40 ~ +70 (Rh95% MAX)
Other Items: Automatic white balance,Agc and BLC

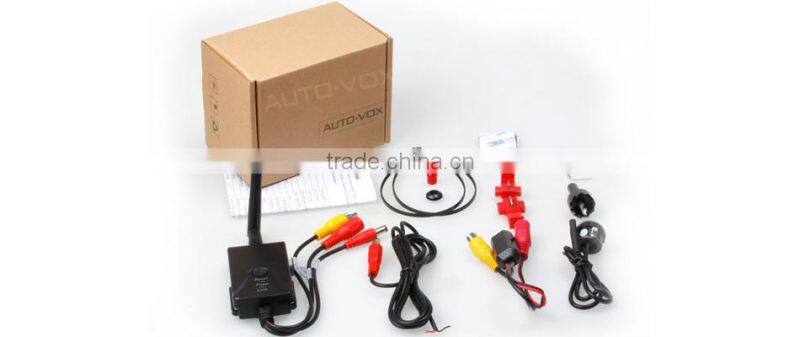

Package Included:
1 X Transmitter with Power & Video Cables,
1 x Extent Power Cable
1 X Camera set,
1 X 3M Sticker, 2 X Cable Ties,
2 X Red SCOTCHLOCK connector, 1 X Manual
