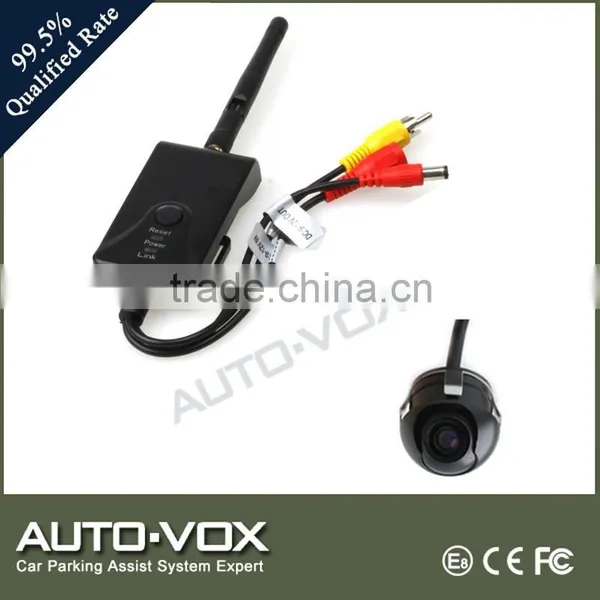

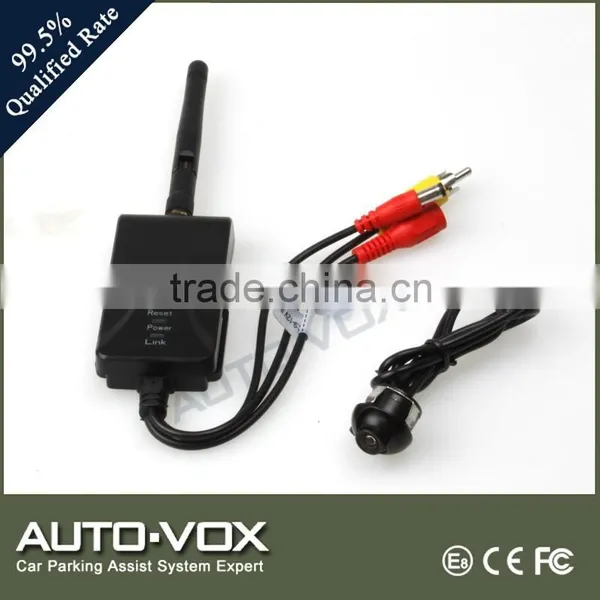

WIFI Transmitter With camera wireless car rear view camera
General description:
This WiFi transmitter comes with a car rear view camera, also called as car WiFi camera, every time you put your car into reverse gear, the camera can send video signal to the screen of your iPhone, iPad, and Android phone, but need to down load APP to your phone and open the APP firstly.
Pls note it must used with DC12V power supply (12V car), not for 24V truck, bus as well as other heavy duty vehicles.
WIFI Transmitter and camera features
l WiFi transmission, no need router, no need internet.
l Support iPhone, iPad, and Android phone
l Transmission distance with no obstacle more than 150meters
l The client terminal shall support Android 2.2 or above, and iOS shall support Version 4.3 or above.
l Easy installation.

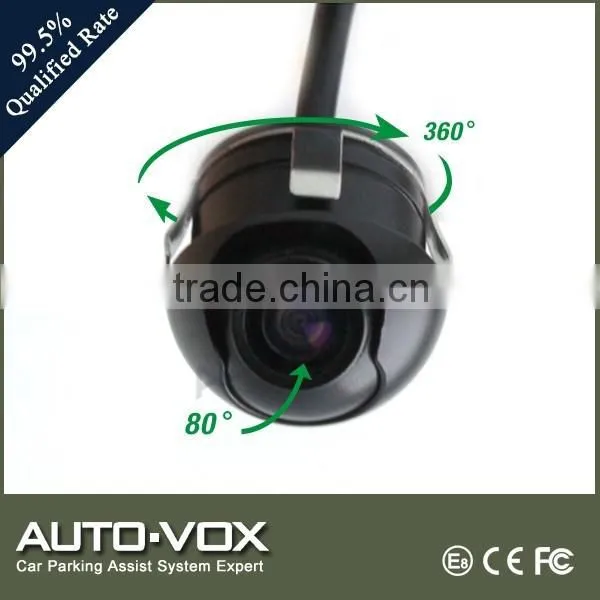

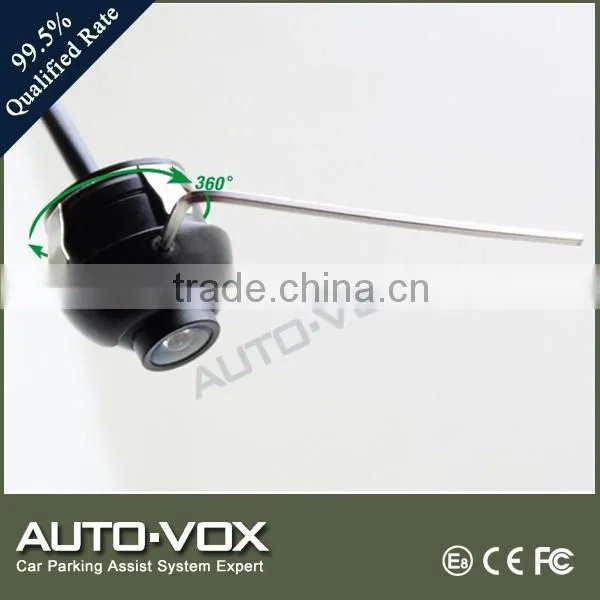

l Adjustable multiple angle camera viewing
l With mirror & normal view switch (rear view and front view is selectable)
l Minimum illumination, digital compensation for clear night vision
l Camera & transmitter rainproof, dustproof and shockproof
Install APP Soft Ware for Android(iOS) system client
- Search ”WIFI AVIN” software from your google paly (APP store), and install it.
- Connect your phone with the camera by the WIFI named “WIFI AVIN”
- Open the app “WIFI AVIN” to get the video
Application:
1. For Car reverse /backup system
2. CCTV camera system application

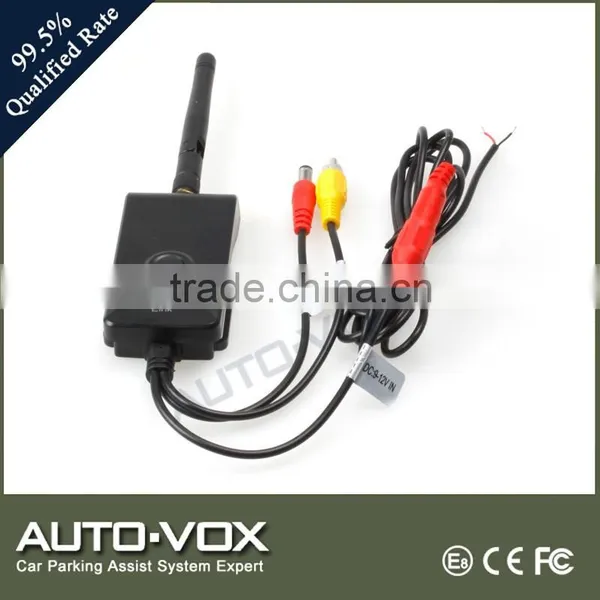

Specifications of WiFi transmitter
Item | Specifications | |
Transmitter | Transmitting frequency | 2400MHz-2483.5MH |
Modem mode | 802.11b: DSSS(CCK,DQPSK,DBPSK) | |
Transmission distance with no obstacle | >150m | |
Frame rate | 30fps | |
Video resulutions | VGA | |
Video compression | H.264 | |
Wireless protocols | IEEE 802.11b, IEEE 802.11g | |
Power supply | DC 12V | |
Consumption current | 150mA (Max) | |
Encryption mode | WPA2 | |
Rainproof | Yes | |
Weight | 80+-5g | |
| Dimensions | 78*43*18mm |
Operation tempreature | -10℃~+50℃ | |
Operation humidity | 15%~85% RH | |
Technical Specifications of camera :
Sensor: CMOS
TV System: NTSC
Effective Pixel: 628×586 pixels
Electronic Shutter: 1/50-1/100,000sec
Sync System: Internal
Resolution: 480 TV Lines
Lens Angle: 1.8mm/170
Sensor Area: 5.961mm×4.276mm
Video Output: 1.0Vp-p 75Ohm
S/N Ratio: More than 48db
Waterproof: Ip68
Minimum Illumination: 0.2Lux/F1.5(NO LED)
Current Consumption: No More 300mA
Power Supply: DC12V ± 10%
Operation Temperature: -30 ~ +60 (Rh95% MAX)
Storage Temperature: -40 ~ +70 (Rh95% MAX)
Other Items: Automatic white balance,Agc and BLC

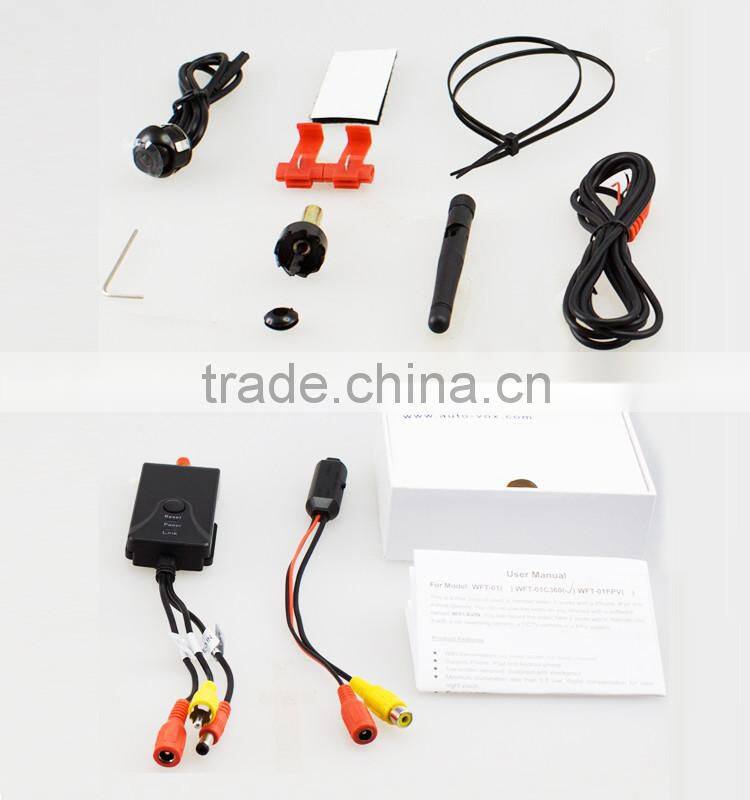

Package Included:
1 X Transmitter with Power & Video Cables,
1 x Extent Power Cable
1 X Camera set,
1 X 3M Sticker, 2 X Cable Ties,
2 X Red SCOTCHLOCK connector, 1 X Manual
1, Packing: Export standard white box or Color box (OEM Package available)
2, Shipping: 7-20 days upon receipt of your payment deliver by DHL, FedEx, UPS, EMS, TNT
Why choose us:
1. 0.1% return rate , 99.5%qualified rate—strict QC system, complete QC process, including IQC,PQC,FQC, QAC,QC staff consist of engineers, technicians and production staff with 8 years professional experience and fully trained to conduct QC
2. 20% Profit is invested on R&D—20% profit is invested on R&D to meet the market demand, we focus on the market feedback and develop market-oriented new models. 2-3 new items will be released each season by our 8-years-experience R&D technicians.
3. 24 hours a day to serve you—24 hours customer service to solve your problems at shortest time, your inquiry& request will be replied within 24hours.
4. High quality components and materials—Key components are sourced from USA, Japan, Korea, Taiwan and reliable local manufacturers with brands such as Sony, Sharp, AU.
About us:
Auto-vox is a well established company with 8 years experience in researching, making and selling car mirror monitor, car camera and other auto electronics. We are customer focus, quality driven with 99.5%qualified rate and valued pricing. We have cooperated with UK famous On line & Off line electronics chain store retailer like Maplin since 2009.
Our customers abroad have supplied our products to Nissan, Citroen car sales headquarters.
In 2015, we become the supplier of BestBuy indirectly. In recent years, we concentrate more on developing innovative products.
Q1: What is your warranty terms?
A1: 18 months is guaranteed from the production date; we share half of shipping and other related cost for returned goods due to our quality faulty; and 1% free spare units will be provided and be shipped with bulk order.
Q2: What is your MOQ?
A2: 100 pieces per model.
Q3: What is your lead time?
A3: 10-15 working days upon receipt of your payment.
Q4:What is your delivery way?
A4: DHL, FedEx, UPS, EMS, TNT, Airfreight ( It’s up to our sincere customers).
Q5: What is your payment terms?
A5: T/T(Bank transfer), PayPal, Western Union, Money Gram.
Q6: Do you support OEM or ODM?
A6: OEM & ODM are welcomed.
Q7: Do you have any certificate for your products?
A7: Yes, we have CE, FCC, RoHS, E-mark certificate for our products.
