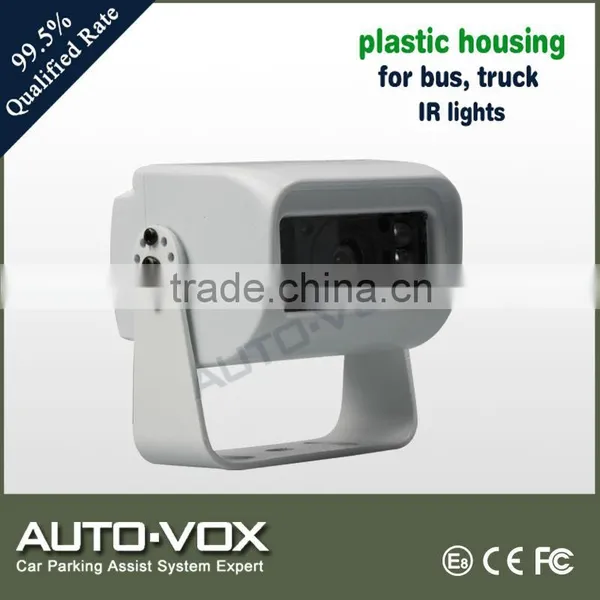

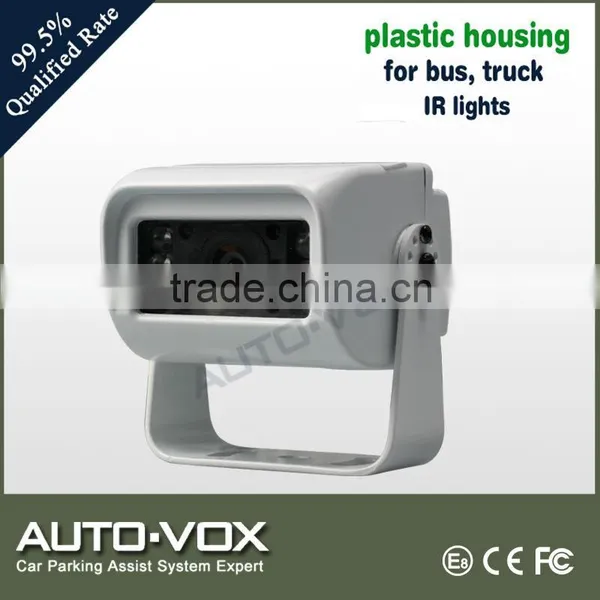

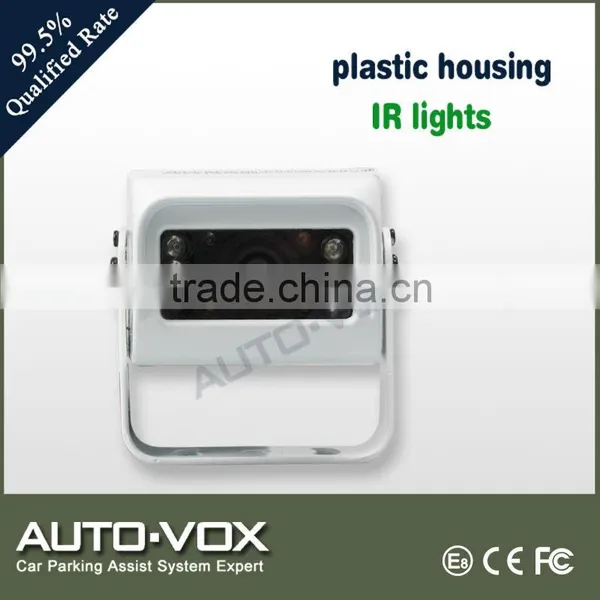

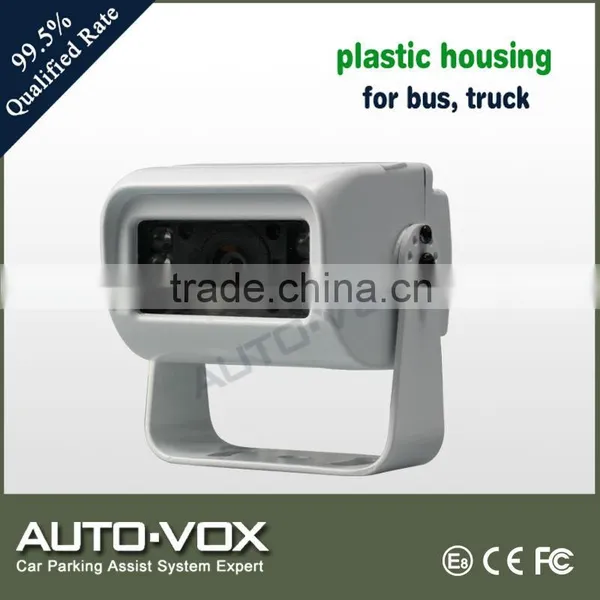

Water-proof car reverse camera suitable for bus car rear camera

Water-proof car reverse camera suitable for bus car rear camera

• Adopt CCD imaging process:420 TV lines  With infrared LED compensatory light
• Automatic white balance function
• View angle:120°
• Water-proof,shock-proof and anti-jamming functions
• Pin nailed installation, suitable for bus, truck and other gigantic vehicle.
• Plastic housing, dimension: 40.3 X 52.5 X 48.62mm
• Power supply: DC12~24V

• mage device:1/4-inch color SHARP CCD.
• TV system:PAL.  Effective pixels:628*492pixels.
• Sensing area:3.58mm x2.688mm.
• Sync. System:internal.
• Resolution:420 TV lines.
• Minimum illumination:0Lux/(infrared LED on).
• Night Vision range:More than 8M.
• Lens:2.9(120)mm.
• S/N ratio:more than 48db (AGC-OFF).
• Electronic shutter:/10,000 seconds.
• Video output:RCA connector, 1.0vp-p, 75ohm.
• Current consumption:<=250mA.
• Power supply:DC 12-24V.
• Operating temperature:-10 to 50 degrees centigrade, RH95% Max.
• Storage temperature:-20 to 60 degrees centigrade, RH95% Max.
• Dimensions:40.3mm*52.5mm*48.62mm.
• Weight:240g. Other items:automatic white balance, AGC and BLC

Mirror view and normal view is switchable

Mirror view and normal view is switchable via a step switch on the power box.

Mirror view is switched on when delivery. You can switch it to normal view subject to your specific needs.

Mirror view is usually used for rear view while normal view is usually used for front view.

Wire connection

This cameras is designed to be applicable to long vehicles such as bus, truck.  They should be installed at proper position. When used for rear view at reversing. Camera with minor image function is used. Wire connection illustrated in diagram 1.

When the camera is intended for reversing. Connect the power cable of the camera with that of the reversing tear. The red wire end is positive the other is negative.
