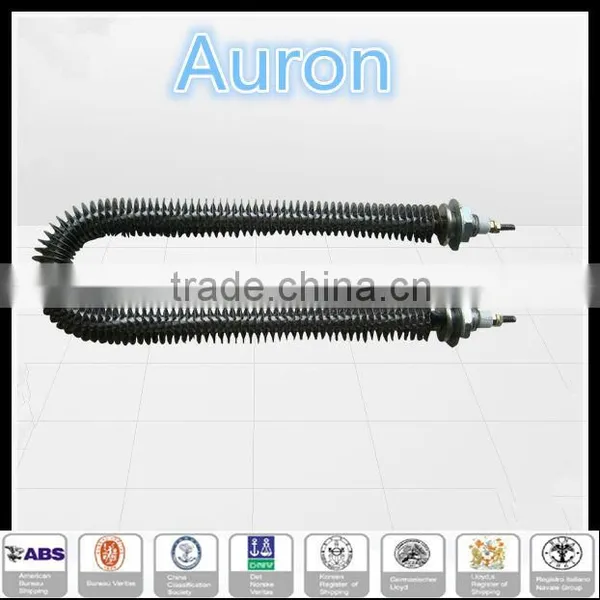

Industrial Finned Air Heater
Industrial Finned Air Heater are constructed like basic tubular elements with the addition of continuous spiral fins, 4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.
Electric heating tube feature:
1.We offer standard as well as customized models
2.We offer different tube diameters like 6 mm, 8 mm, 11 mm, 12.5mm, 16mm & 18mm
3.We offer different sheath materials. It can be availed in different materials like Incoloy 800, SS 304, SS 321, SS 316, Copper & Titanium
4.We offer various shapes as customer demand:immersion heater with flange or screw, explosion proof heater.
5.Various terminal options are available
Electric heating tube applications:
Drying------Heat Treating------Annealing------Load Banks------Curing
Electric heating tube drawing for reference:
Electric heating tube structure of tubular heating element:
| electric heating tube HI-POT TEST | 1500V/S min cold condition |
| electric heating tube insulation resistance | 20M Ω min |
| electric heating tube leakage current | 0.75ma max |
| electric heating tube power tolerance | +5%,-10% |
| electric heating tube voltage | 12V-440V |
| electric heating tube diameter range | 1mm to 40mm |
| electric heating tube heating resistance wire | 0Cr25Al5,Cr20Ni80 or as custom's requirement |
| electric heating tube air tubular heater wattage | ≥ 2w-10w/cm2 |
| electric heating tube water tubular heater wattage | ≥ 6w-20w/cm2 |
| electric heating tube dies and fin tubular heater | ≥ 8W-15w/cm2 |
