Product Details
Condition: | New | Type: | Air Heater | Power Source: | Electric |
Place of Origin: | Jiangsu, China | Brand Name: | AURON | Model Number: | JGS3-220/1 |
Dimension(L*W*H): | customized | Weight: | customized | Voltage: | 220V |
Power(W): | customized | Certification: | ABS,BV,DNV,etc | Warranty: | 1-3 years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

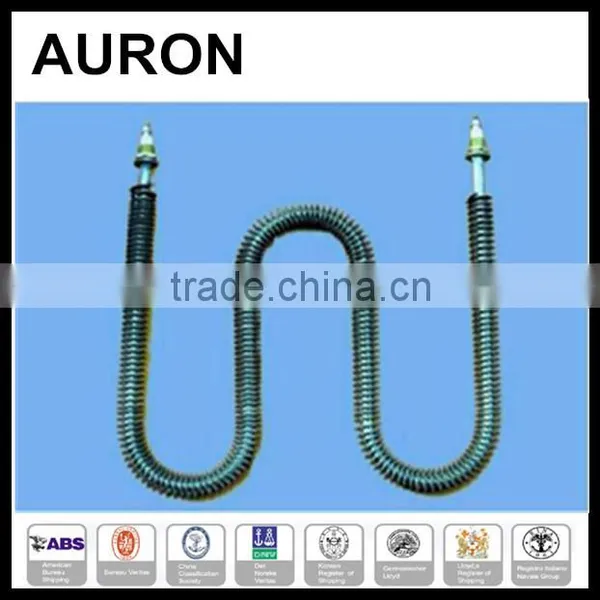

Industrial Finned Air Heater
Industrial Finned Air Heater are constructed like basic tubular elements with the addition of continuous spiral fins, 4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.
Industrial instant finned tubular heater feature:
1.We offer standard as well as customized models
2.We offer different tube diameters like 6 mm, 8 mm, 11 mm, 12.5mm, 16mm & 18mm
3.We offer different sheath materials. It can be availed in different materials like Incoloy 800, SS 304, SS 321, SS 316, Copper & Titanium
4.We offer various shapes as customer demand:immersion heater with flange or screw, explosion proof heater.
5.Various terminal options are available
Industrial instant finned tubular heater applications:
Drying------Heat Treating------Annealing------Load Banks------Curing
Industrial instant finned tubular heater drawing for reference:
Industrial instant finned tubular heater structure of tubular heating element:
industrial instant finned tubular heater HI-POT TEST | 1500V/S min cold condition |
industrial instant finned tubular heater insulation resistance | 20M Ω min |
industrial instant finned tubular heater leakage current | 0.75ma max |
industrial instant finned tubular heater power tolerance | +5%,-10% |
industrial instant finned tubular heater voltage | 12V-440V |
industrial instant finned tubular heater diameter range | 1mm to 40mm |
industrial instant finned tubular heater heating resistance wire | 0Cr25Al5,Cr20Ni80 or as custom's requirement |
industrial instant finned tubular heater air tubular heater wattage | ≥ 2w-10w/cm2 |
industrial instant finned tubular heater water tubular heater wattage | ≥ 6w-20w/cm2 |
industrial instant finned tubular heater dies and fin tubular heater | ≥ 8W-15w/cm2 |
