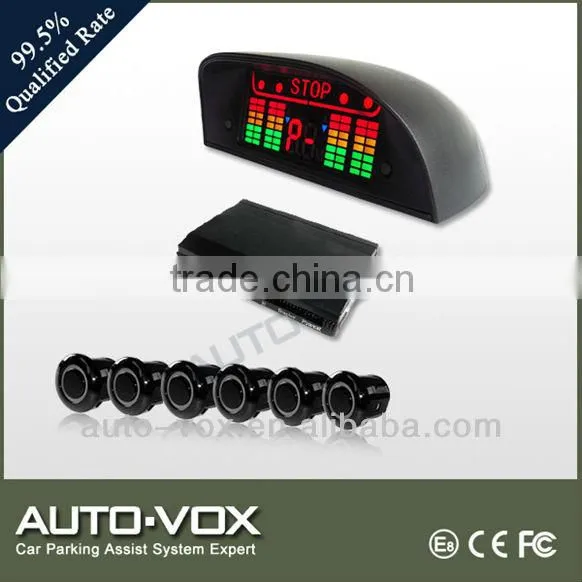

Car front and rear LED car parking sensor with 6 sensors with buzzer alarm

Specifications

1.Three-color LED display
2.Left and right direction indicator
3.Precise BiBiBi alarm from 0.3m~1.5m

Car front and rear LED car parking sensor with 6 sensors with buzzer alarm

· Automatic activation when powered and reverse gear is selected

· High brightness LED indicates distance and orientation of obstacles

· Front 2 and rear 4 sensors for full coverage detection

· Self-diagnosis function

· Compatible with tow bar or back tyre on the rear of vechicle

· Integrated beeper for immediate alert

· 3 stages warning by different beeping frequency and 3 colors LED

· Power supply:  DC10.5V-15V(12V normal)











1. Technical data



Supply voltage	10.5V ~15V (12V nominal)
Current consumption	200 mA max
Working temperature	-30°C ~ 70°C
Storage temperature	-35°C ~ 75°C
Obstacle detection	From 150 cm from the bumper (post dia. 80 mm)
Reliability over time	Satisfies the strictest automotive standards























2. Self diagnosis function





3. Distance Ajusting Modes





4. Sensor







5. Signal





Obstacle distance	Distance category	Beep	LED
150 ~ 110 cm	Safety	Din……Din……Din…..	1.5m ~1.1m
100 ~ 60 cm	Cautious	Din…Din…Din…Din…	1.0m ~0.6m
50 ~ 30 cm	Hazard	Din..Din..Din..Din..Din..Din..	0.5m ~0.3m
Less than 30 cm	Hazard	Din..Din..Din..Din..Din..Din..	P_







6. Pack contains:



1 * command module               6 * ultrasonic sensors            1 * acoustic indicator

1 * power supply cable            1 * hole borer                        1 * accessory kit

1 * instruction manual
