Specifications
high quality 3.5 inch monitor for cameraTFT-LCD monitor
PALor NTSC system auto convert
480TV line
CE

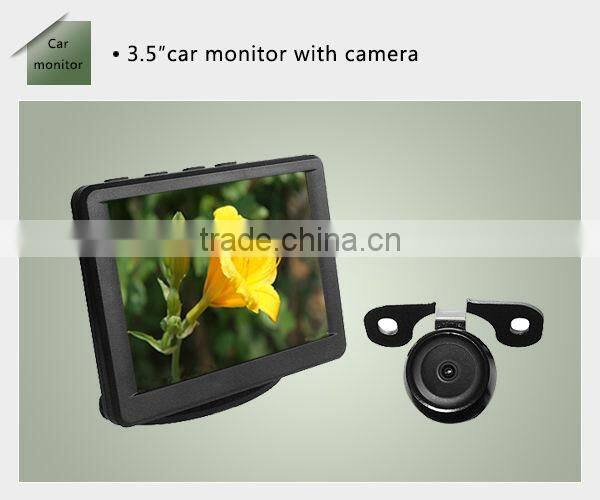

High quality 3.5 inch monitor for camera
Monitor:
Automatically switch on when reverse gear is engaged.
High digital resolution TFT-LCD monitor:960*240(DOT)
Display size:3.5 inches
Monitor can be 360 degree circumrotated
PAL or NTSC system auto convert
With buttons for menu operation
One vedio input
Camera:
Wide angle(170 angel)camera,High resolution(480TV line),extra-low
Illumination(0.3 Lux) for clear night vision
Pin nailed camera mounting at upper side of license-plate
Power supply:DC10.5~15V(12V normal)
Operating temperature:-20~60,RH95% Max
Monitor | |
Supply voltage |
DC10.5V-15V(12V normal) |
Current consumption |
300mA(max.) |
Operating temperature |
-20°C~60°C |
TV system |
PAL or NTSC system (auto-convert) |
Resolution |
960xRGBx240 |
Screen size |
3.5 inches |
Video input |
1x video input |
Turn on mode |
Automatic turn on when receiving video signal |
Camera | |
Supply voltage |
DC10.5V-15V(12V normal) |
Current consumption |
100mA(max.) |
Operating temperature |
-30°C~70°C |
Image device |
¼ inch colour, VC0702 |
TV System |
NTSC system |
Resolution |
420 TV lines |
Effective pixels |
720*480 |
Minimum illumination |
0.5 LUX |
View angle |
120 degree (diagonal) |
S/N ratio |
More than 48db (AGC-off) |
Video output |
RCA connector 1.0vp-p 75 ohm |
Others |
Automatic white balance, AGC and BLC |
