Specifications
3.5 inch digital monitorwaterproof camera
auto convert PAL or NTSC
Mirror and normal view switchable
FCC,CE certificate

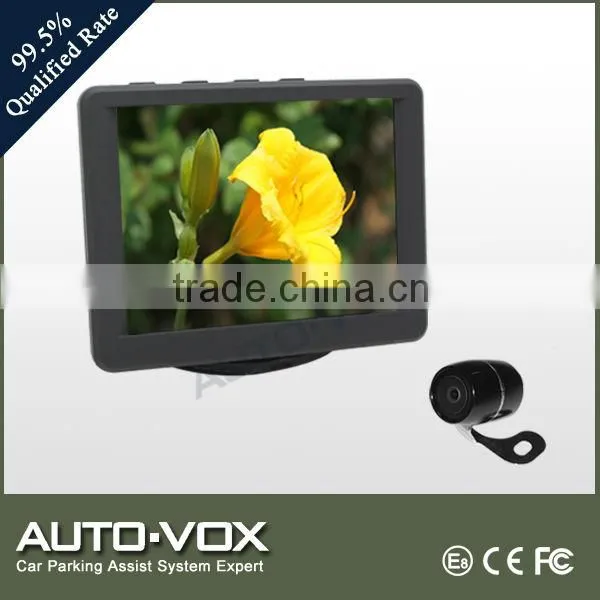

4.3 inch auto digital monitor with camera waterproof
- Automatically switch on when reverse gear is engaged
- Monitor can be 360 degree circumrotated
- PAL or NTSC system auto convert
- Mirror view and normal view switchable
- Pin nailed camera mounting at upper side of license-plate
- Extra low-illumination for clear night vision
1. Technical data
Monitor |
Items |
Specification |
Supply voltage |
DC10.5V-15V (12V normal) |
|
Current consumption |
≤190mA |
|
Operating temperature |
-20°C to 60°C |
|
TV System |
PAL or NTSC system auto convert |
|
Resolution |
960xRGBX240 |
|
Screen size |
3.5 inches |
|
Video input |
One video input |
|
Turn on mode |
Automatic turn on when reversing |
|
Camera |
Image device |
1/4-inch colour |
High resolution |
480TV line |
|
Extra-low illumination |
0.3 Lux |
|
Electric Shutter |
PAL:625Lines.25Field/sec |
|
NTSC :720Lines.25Field/sec | ||
Effective pixels |
PAL: 720X 576 NTSC: 720X 480 |
|
S/N ratio |
>48dB (AGC-OFF) |
|
Video output |
RCA connector, 1.0vp-p, 75ohm |
|
Current consumption |
≤120mA |

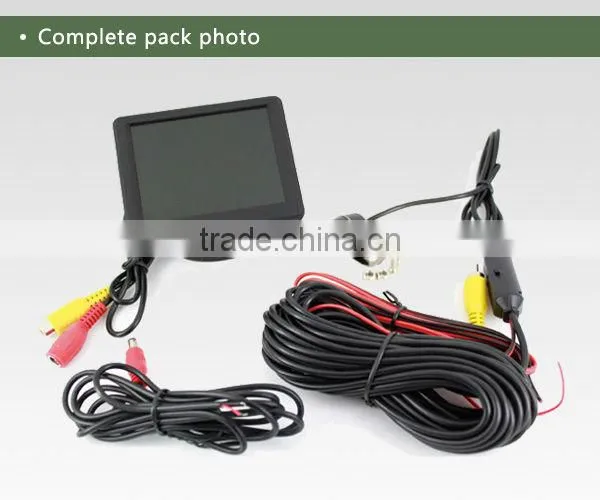

2. Pack contain
1 * Monitor 1 * Camera 1 * Power cable 1 * video cable
4 * Plastic bundles 1 * Manual
