Small Wireless Night Vision Pipe Snake Camera

Shenzhen Auto-Vox Technology Co., Ltd.
Small Wireless Night Vision Pipe Snake Camera thumbnail-1
Small Wireless Night Vision Pipe Snake Camera photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
U-CAN
Model Number:
EIC-902
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name U-CAN
Model Number EIC-902

Specifications

1. 3.5'' color LCD monitor

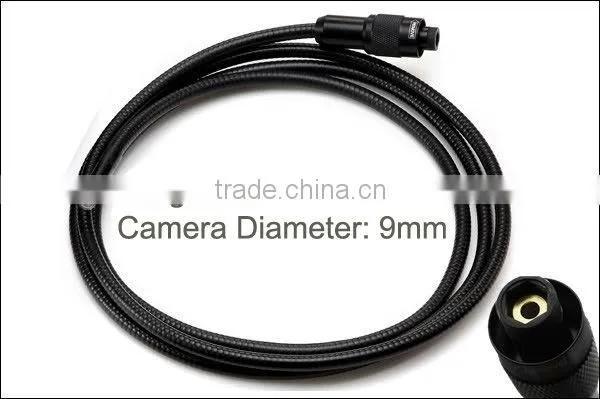

2. 9mm diameter camera
3. 2M extension tube
4. record function,IP67
5. CE certificate

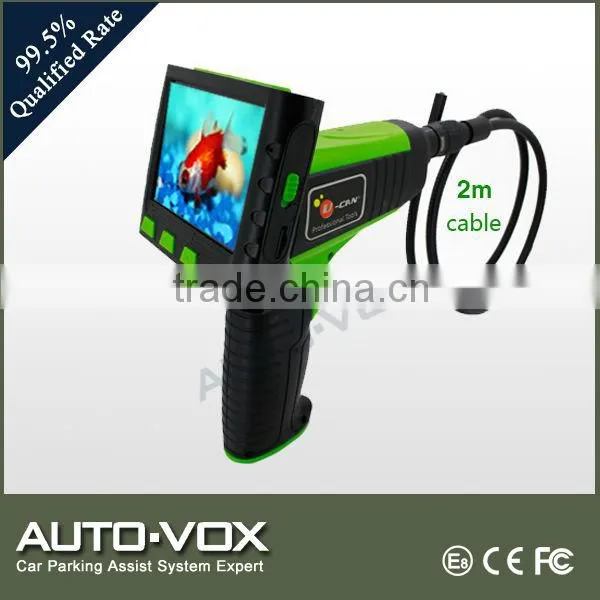

Small wireless night vision pipe snake camera



FEATURES:



1.Wireless transmission
2.3.5" LCD Color Monitor
3.Flexible tube camera for easily inspecting hard-to-reach areas
4.9mm diameter camera with LED lights for small and dark space areas
5.Waterproof camera with level IP67
6.Video record & photo snap functions
7.Supports micro SD card up to 32G
8.Image Orientation adjustable
9.Light weight and handheld design









SPECIFICATIONS:



   CameraImage sensor1/13-inch COMS
Pixel pitch0.219 * 0.219 mm
Transmission frequency2468MHz
Minimum illumination0 Lux
Modulation ModeFM
Bandwidth18MHz
Unobstruted Effective Range10m
Power Supply4 AA batteries
Waterproof levelIP 67
Dimensions190*150*42(mm)(Exclude Flexible Tube)
Weight550g
MonitorLCD screen3.5'' TFT LCD
Effective System320 * 240
Video SystemPAL/NTSC
Transmission frequency2468MHz
Exterior supply voltage6V DC
Consumption current(MAX)490mA
Video output level0.9-1.3v @750hm
Video or Photo file resolution640 * 480
Dimensions110 * 75 * 35mm
Weight160g
Operation Humidity15-85%RH

Note:



* Actual transmission range may vary according to the weather, location, interference and building constructions.
* All the specifications are subject to minor change without prior notice.

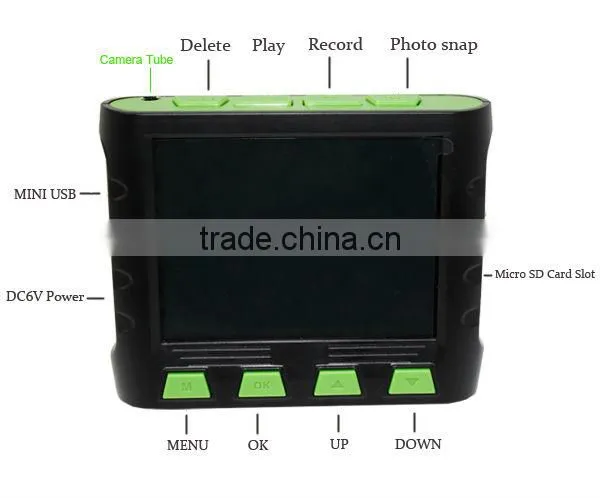

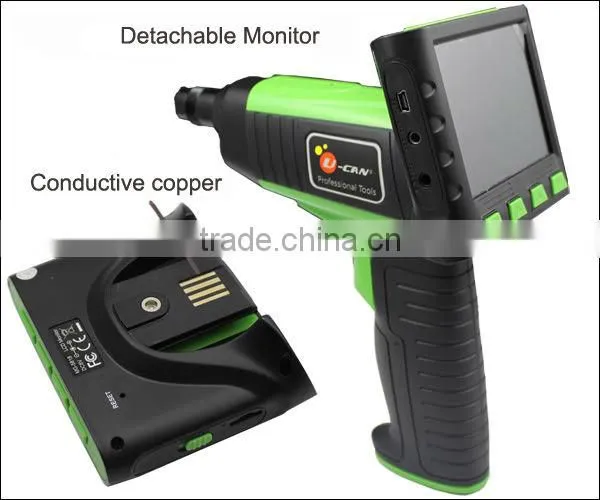

STRUCTURE:



Small wireless night vision pipe snake camera

Small wireless night vision pipe snake cameraSmall wireless night vision pipe snake cameraSmall wireless night vision pipe snake cameraSmall wireless night vision pipe snake cameraSmall wireless night vision pipe snake camera

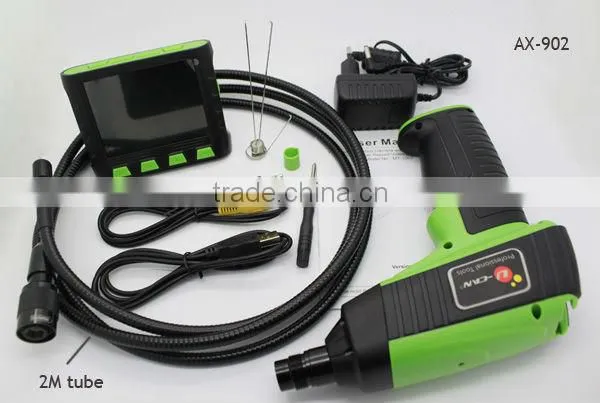

Packing list:







1 * camera



1 * LCD Monitor



1 * Extension tube( Optional)



1 * Adapter



1 * USB Cable



1 * Video Cable



1 * Screwdriver



1 * Mirror



1 * Magnet



1 * Hook



1 * Lantern Ring



Small wireless night vision pipe snake cameraSmall wireless night vision pipe snake cameraSmall wireless night vision pipe snake camera
