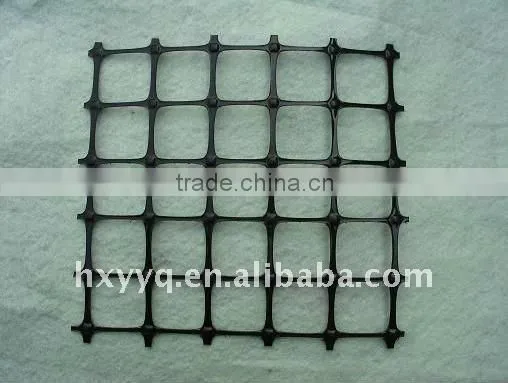

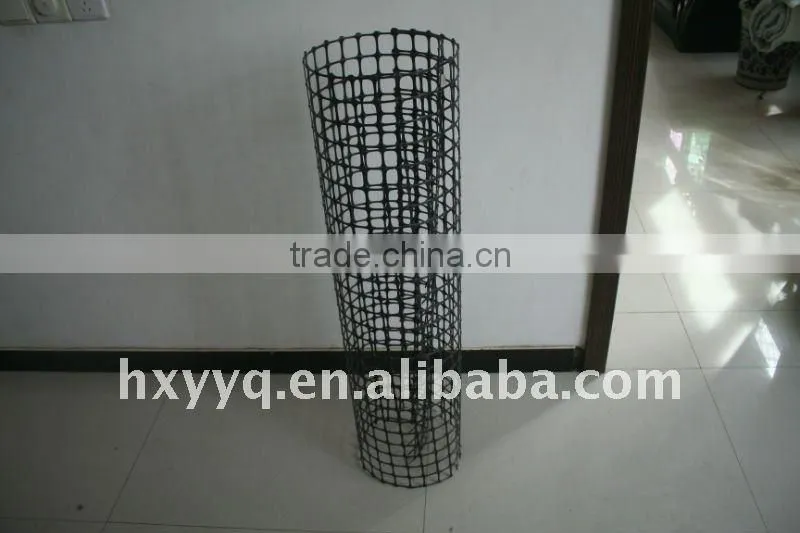

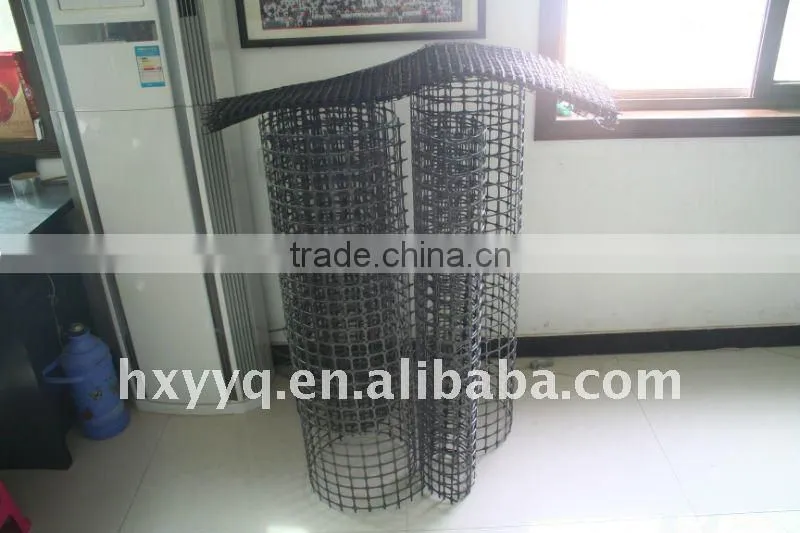

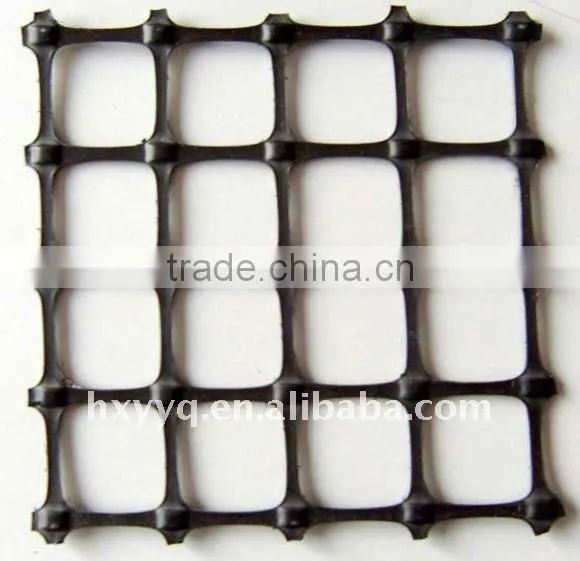

Help CenterTwo-directional Draw and Extend Plastic Geogrid
Related Products
-
Two-directional Draw and Extend Plastic GeogridNegotiableMOQ: 5000 Square Meters -
Two-directional Draw and Extend Plastic GeogridNegotiableMOQ: 5000 Square Meters
-
Single-directional Plastic GeogridNegotiableMOQ: 5000 Square Meters
-
Biaxial Polyester Wapr-knitted GeogridNegotiableMOQ: 5000 Square Meters
-
Single-directional Plastic GeogridNegotiableMOQ: 5000 Square Meters
Specifications
material: plasticmesh size /mm: 12.5x12.5~25.4x25.4
width:1m-6m
length: 50m~100m
we can made these as customers' demand
The product adopt continuous coating fiberglass and as a new ideal highway pavement reinforcement base material ,it is characterized by high tensile strength in both axial and lateral direction, low stretch rate ,high temperature-resistance, alkali-resistance as well as pavement, cement pavement to prevent cracks arise ad prolong pavement
service life. It also can be used as basal reinforcement material of hillside, reservoir, harbor, port, water cannel, breast wall, etc
We can produce as the customer’ inquiry.
1. reinforce the carry capacity and prolong the using time of the base;
2. avoid the road subside and crack and keep the road orderliness;
3. be easy to construction, save time and strength, short the time for the project, and save the
servicing;
4. avoid the culvert becoming crack;
5. provide stability for slopes and avoid the losing of the water and soil;
6. reduce the thickness of the underlay and saving the cost;
7. Can replace the wire netting.
[APPLICATION]
(1)Road surface reinforcement of road, railway and airport road;
(2) Maintenance, reconstruction and widening of old road surface( asphaltum road or cement concrete road).
(3)Reinforcement of soft soil roadbed, irrigation channels and water dams.
SPECIFICATION:
Item |
TGSG15-15 |
TGSG20-20 |
TGSG30-30 |
TGSG40-40 |
Quality per meter square g/m2 |
300±30 |
300±30 |
400±40 |
500±50 |
Width m |
4.0 6.0 |
|||
Warp Tensile Strength per meter KN/m |
15 |
20 |
30 |
40 |
Weft Tensile Strength per meter KN/m |
15 |
20 |
30 |
40 |
Warp elongation ≤% |
16 |
|||
Weft elongation ≤% |
13 |
|||
Warp Tensile Strength at 2% elongation KN/m |
5 |
8 |
11 |
13 |
Weft Tensile Strength at 2% elongation KN/m |
7 |
10 |
13 |
15 |
Warp Tensile Strength at 5% elongation KN/m |
8 |
10 |
15 |
16 |
Weft Tensile Strength at 5% elongation KN/m |
10 |
13 |
15 |
20 |
