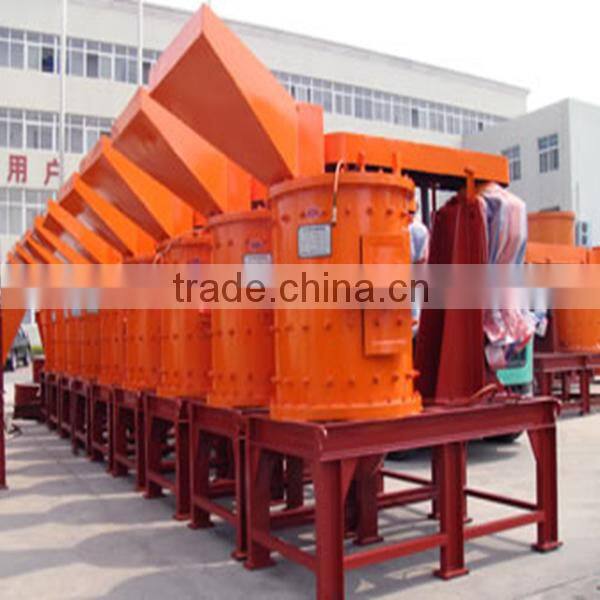

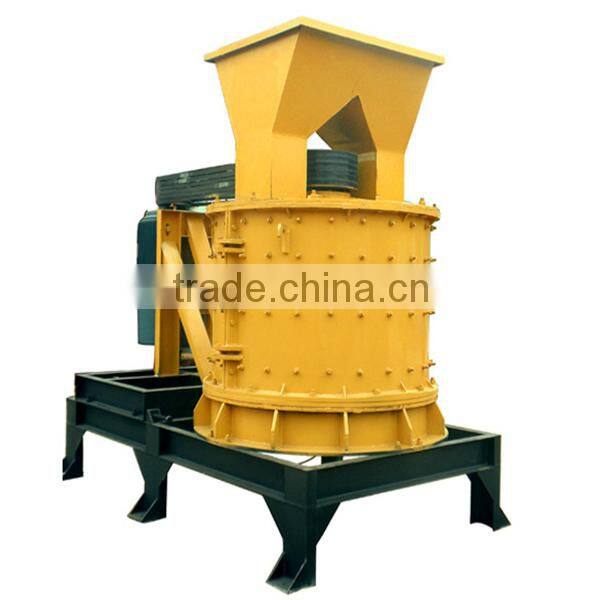

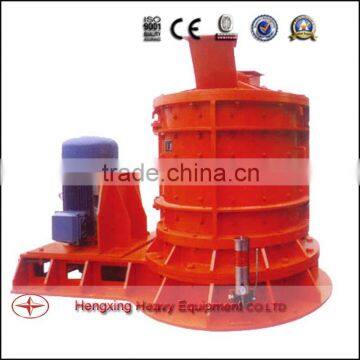

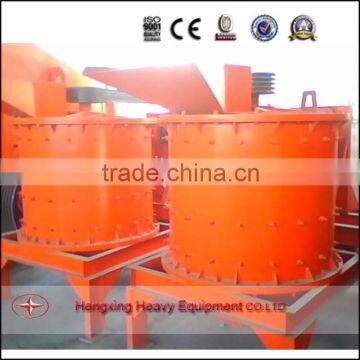

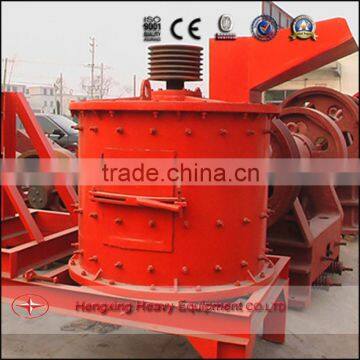

Vertical Combination Crusher
Vertical combination crusher:
Vertical combination crusher combine the hammer crusher and impact crusher to be an ideal equipment for building materials, mining,chemical, metallurgy, cement, coal and other industries. What’s more, in the cement industry, the crusher would be used as the secondary crusher. The compressive strength of the materials could not exceed 140MPa, humidity no more than 15%.
Features:
1). Low running costs
2). Energy saving, high crushing rate
3). Less influence by the material moisture
4). Low working noise, less dust pollution
5). Suitable for crushing medium-hard materials, extra-hard materials
6). Products form into cubes, minimal iron contamination
Working principle:
Materials from the upper feed part of the machine vertically fall into high speed rotation of the impeller, and then form an umbrella shunt in the impeller with the other part under the centrifugal force. The surrounding material produce high speed impact and crushing. After the material crashing into each other, the material will go on crushing and grinding between the impeller and the casing of the machine. Crushed materials discharge from the bottom. Get the required end product by controlling the screening equipment.
main parameters of the vertical combination crusher:
Type |
Feed size (mm) |
Output size (mm) |
Capacity (t/h) |
Motor power(kw) |
Speed (r/min) |
LxWxH (mm) |
PFL-800 |
<100 |
<3-5 60%-90% |
10-20 |
22 |
934 |
2100x1200x1700 |
PFL-1000 |
<120 |
<3-5 60%-90% |
20-40 |
45 |
769 |
2600x1400x1900 |
PFL-1250 |
<150 |
<3-5 60%-90% |
40-70 |
75 |
530 |
2800x1600x2100 |
PFL-1500 |
<180 |
<3-5 60%-90% |
70-100 |
132 |
495 |
3100x1900x2200 |
PFL-1750 |
<200 |
<3-5 60%-90% |
130-190 |
160 |
424 |
3710x2360x2390 |
PFL-2000 |
<220 |
<3-5 60%-90% |
100-160 |
185 |
370 |
4100x2660x2620 |
Service:
Pre-services:
According to your demand, we provide a professional advice and plan.
Sale services:
Provide good price and good quality of the products, we would make sure the products reach a its quality standard before shipping.
After sale services:
l Experienced professional workers are available to guide and train your employees about how to install and operate equipment as well as detailed installing drawing.
l We are responsible for all the repairs that caused by our quality problems (if reasonable operation) within one year's warranty.
