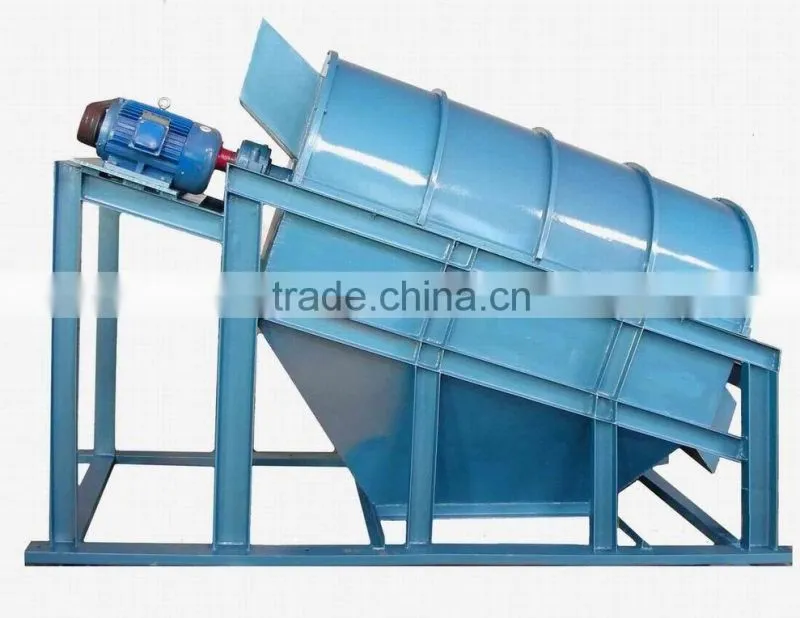

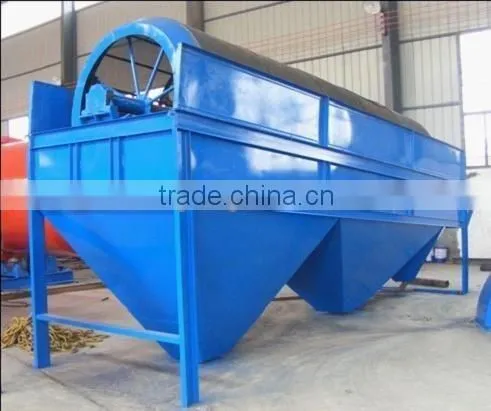

Rolling Screen For Particle Materials :
This machine is adaptable to low moisture material of hardness such as shale, coal gangue, etc. With reasonable design, this trommel has large production capacity. For those materials of high moisture, seive holes should be enlarged.
Features of Trommel screen:
1. Installation of small angle, it is not easy to block.
2. Occupy a small space.
3. Low noise and little dust pollution.
4. Smooth operation.
5. High screening efficiency.
6. Large output.
7.Unique screen design, result in longer screen life and less blocking of mesh screen,
Trommel Screen Working Principle:
The crushed stone entered the roller, on the one hand, they will be selected as the roller’ rotation.
On the other hand, the stone with intensity will flow forward to the slope of roller and will be selected
through different screens. The small stone fall into the funnel, then will be moved to the finished heap.
Technique Data of Gold Trommel:
Model |
Capacity |
Power |
Drum diameter |
Drum length |
Screen size |
Dimension |
Weight |
GT1015 |
50 |
4.0 |
1000 |
1500 |
<3~10 |
3000*1400*2145 |
2200 |
GT1020 |
100 |
5.5 |
1000 |
2000 |
3460*1400*2145 |
2800 |
|
GT1225 |
160 |
7.5 |
1200 |
2500 |
4146*1600*2680 |
4200 |
|
GT1530 |
250 |
11 |
1500 |
3000 |
4460*1900*2820 |
5100 |
|
GT1545 |
350 |
15 |
1500 |
4500 |
5960*1900*3080 |
6000 |
|
GT1848 |
450 |
22 |
1800 |
4800 |
6500*2300*4000 |
7500 |
|
GT2055 |
600 |
30 |
2000 |
5500 |
7500*2500*4000 |
8600 |
