China Factory Rotary Drum Coal Slurry Dryer :
1. Brief introduction of coal slurry dryer :

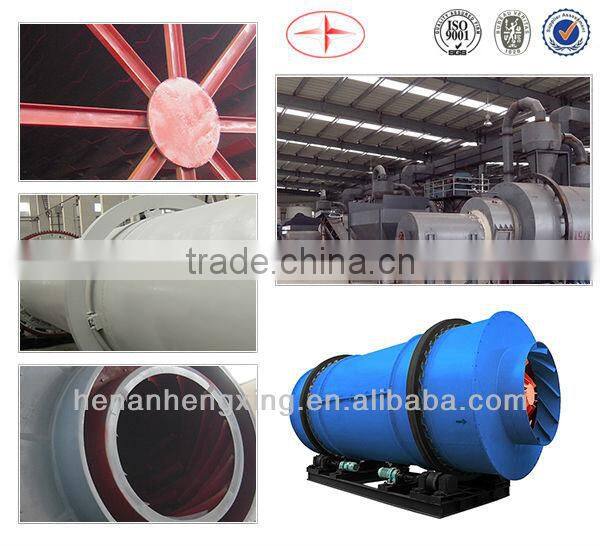

Rotary drum coal slurry dryer is widely used for drying slag limestone, coal powder, slag, clay, etc. Dryer can also be used in building materials, metallurgy, chemical and cement industry. Rotary Dryer mainly consists of dryer body, raw material feeding plate, driving and supporting device, seal ring, etc. Dryer can be generally divided into four types, they are: rotary dryer, triple-drum dryer, indirect heat transfer dryer, vertical dryer. Different kind of dryer has its own characters and advantages, the specific choice of a special dryer depends on different elements.
2. coal slurry dryer Working Principle:

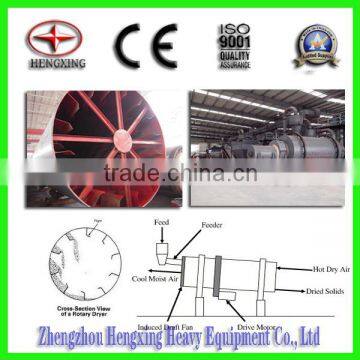

Material to be dried enters the rotary drum coal slurry dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the rotary dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow) of the rotary dryer, or toward the feed end from the discharge end (known as counter-current flow) of the dryer. The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the rotary dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated.
3. Rotary Drum Coal Slurry Dryer Technical Parameters:
|
type(mm) |
indiclination(%) | rotation speed(r/min) | input tempreture(ºC) | motor power(kw) | outpur(t/h) | weight(t) | reforance |
| Φ600×6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 | |
| Φ800×8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 | |
| Φ800×10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 | |
| Φ1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 | |
| Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 | |
| Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 | |
| Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 | |
| Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 | |
| Φ2200×12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 | |
| Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 | |
| Φ2200×20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 | |
| Φ2400×20000 | 3-5 | 1.5-5 | ≤800 | 37 | 18-30 | 60 | |
| Φ2800×15000 | 3-5 | 1.5-5 | ≤800 | 40 | 20-35 | 72.5 | |
| Φ2800×18000 | 3-5 | 1.5-5 | ≤800 | 40 | 25-35 | 75 | |
| Φ3000×20000 | 3-5 | 1.5-5 | ≤800 | 55 | 28-40 | 78 | |
| Φ3000×25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-45 | 104.9 |

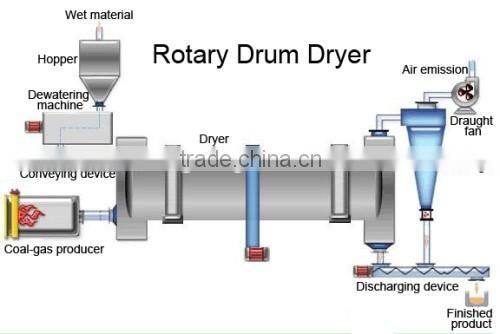

4.Rotary Drum Dryer Flowchart:

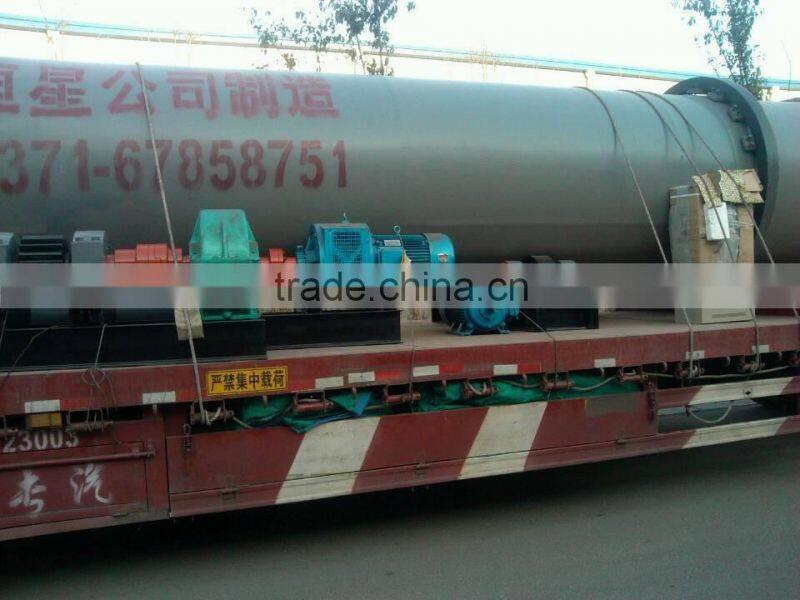

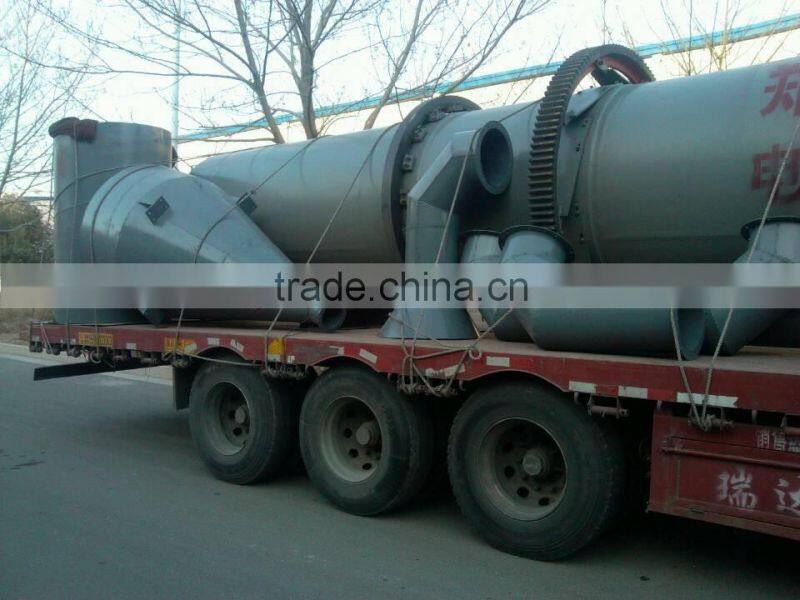

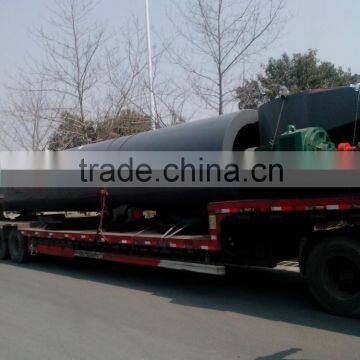

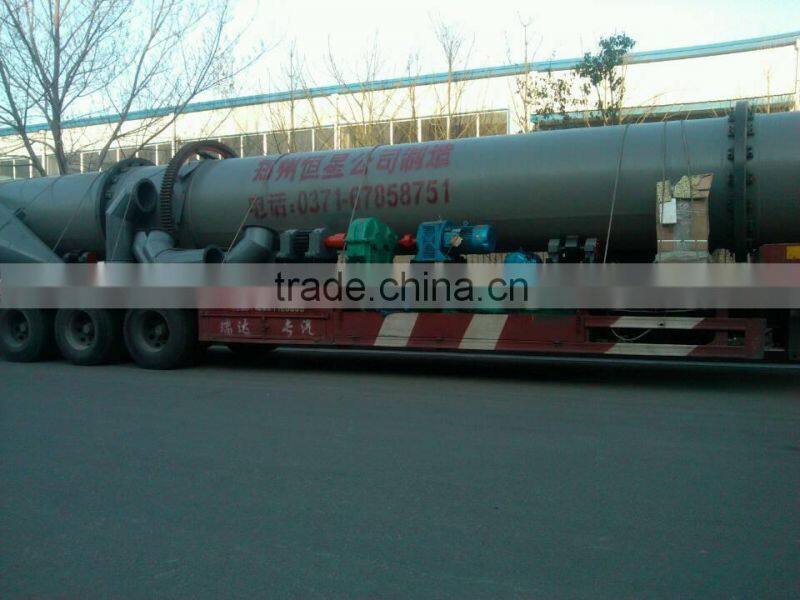

5.Our Company rotary dryer Delivery:

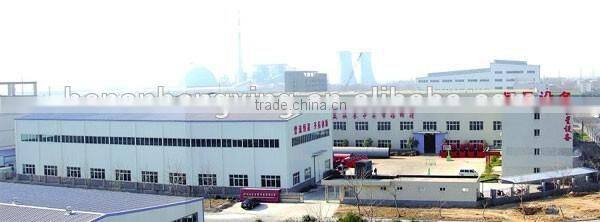

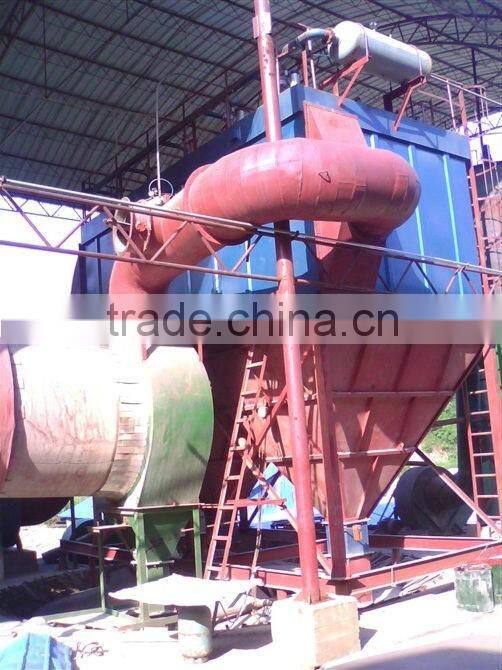

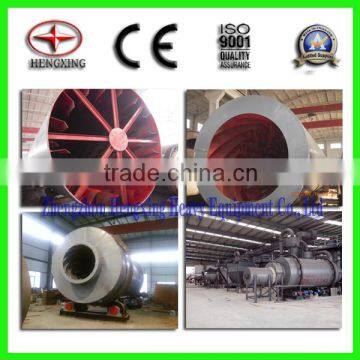

6.Our Company Rotary Dryer Production Site:
Our company has realized the computer informationization of management, production, and the CAD and CAPP of production research and process design. We have 29800 square meters of total factory area. We have established strict quality control system to make sure each manufacture step is perfect.
We have passed some international certifications such as ISO, SGS, GMP,CE etc. You can rest assured aboutour machinery.
With advanced CAD&CAPP technology we have built long coorperate relationships with world customers such as America, Cannada, Poland, India, Russia, Australia, Brazil, South Africa, Mongolia, etc. Our products have been exported to 98 countries.
You are welcome to visit our factory to see our rotayr drum dryer at any time!!
Contact:
Ms Sara Pang
Mobile phone : (whatsapp number): 0086137 8347 1727
Skype: sarapang6
Wechat: sarapang6
