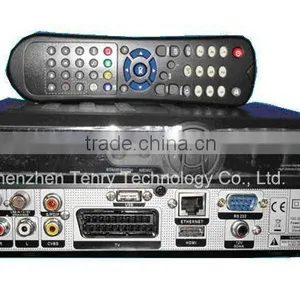

Help CenterOrton X403P HD Receiver
Related Products
Specifications
1, Same function with Openbox S9, with smaller size2, CA+ CI
3, Lan connector(Ethernet)
4, HDMI, USB2.0, Orton X403p HD
Opticum HD X403P, Orton X403P HD, Globo HD X403P:
Specification:
- One slot for Smart Card in Conax system
- One Slot for Common Interface Module
- Support of SD/HD(MPEG2/MPEG4 H.264),DVB-S,DVB-S2 system
- High resolution video output-HDMI
- Standard resolution video output-SCART,RCA
- Supported video resolutions-576p,720p,1080i
- Front panel display-LED 4 digit
- Digital audio output S/PDIF-coaxial
- Analog audio output-RCA stereo
- Software update by USB,RS-232C
- 12V out for connecting external devices
- Lan connector (Ethernet)
- USB connector compliant with USB 2.0 standard
- Low power consumption in Stand-by mode,below 1W
- Automatic Stand-By mode after 3 hours from last using receiver for power saving
- Compatible with Diseqc 1.0,1.1,1.2 and USALS
- Electronic Program Guide-EPG
- Multilngual Menu, including English
- Time Shift (video pausing,rewinding)
- PVR Ready-possibility to record on external USB drive
- Recording one channel and watch another FTA channel within a single transponder
- Blind Scan supported
- Parental Lock for channels and Menu
- Possiility to save up to 5000 channels(TV and Radio)
- Fast channels switching
- Possibility of creating own channels lists
- Possibility of creating Favourite Lists
- Sort/Group/Channels search options
- Channel Editing features-Remove,Lock,Skip,Move,Rename
- Subtitle support-Teletext and DVB
- Teletext support
- Tool to convert files for playback on your computer
- Build-in Dolby Digital decoder(downmix to stereo)
- Colour-black
- OPTICUM USB HDD supported
- Channels Editor
- Support connection to an external FTP server (FTP client)
Main processor
- Type: ALI 3602
- Speed: 396 MHz
Memory
- FLASH size: 4 MBytes
- SDRAM size: 128 MBytes
Tuner & Channel Decoder (Satellite)
- Input connector
- Type: F-Type
- Standard: IEC 169-24
- Gender: Female
Loop through out
- Type: F-Type
- Standard: IEC 169-24
- Gender: Female
- Frequency Range from 950MHz to 2150MHz
- Input impedance Value: 75 Ω,Type: unbalanced
- Signal level from -65 dBm to -25 dBm
- LNB Power 13-18VDC Max. current: 500 mA
- Overload Protection
22kHz Tone
- Frequency: 22 kHz±1 kHz
- Amplitude: 0,6±0.2 V
DiSEqC Control: Version 1.0;Version 1.1;Version 1.2;USALS
Demodulation: 8PSK,QPSK
- Input Symbol Rate DVB-S from 2 Ms/s to 45 Ms/s
- Input Symbol Rate DVB-S2 QPSK from 10 Ms/s to 30 Ms/s
- Input Symbol Rate DVB-S2 8PSK from 10 Ms/s to 30 Ms/s
- FEC Decoder DVB-S: 1/2; 2/3;3/4;5/6;7/8;AUTO
- FEC Decoder DVB-S2 (QPSK): 1/2;2/3;3/4;3/5;4/5;5/6;8/9;9/10;AUTO
- FEC Decoder DVB-S2 (8PSK): 2/3;3/4;3/5;5/6;8/9;9/10;AUTO
MPEG Transport Stream A/V Decoding
- Transport Stream
- MPEG-2 ISO/IEC 13818-1&MPEG-4 ISO/IEC 14496-1
- MPEG Profile level:MPEG-2 MP@ML&MPEG-2 MP@HL;MPEG-4 AVC/H.264 HP@L4
- Aspect Ratio: 4:3 Letter Box,4:3 Pan Scan,16:9
- Video Resolution: 720*576[PAL],720*480[NTSC],1920*1080i
- Audio Decoding: MPEG/MusiCam Layer 1;MPEG/MusiCam Layer 2;Dolby AC-3
- Audio ModeStereo: Join Stereo,Mono
- Sampling Rate: 32 kHz;44,1 kHz;48 kHz
Front Panel
- Display:Digits 4
- Buttons Quantity: 7
- Slots Card Reader: 1
- Common Interface: 1
TV SCART
- Video CVBS output
- Video RGB output
- Audio R/L output
RCA
- Video CVBS output
- Audio R/L output: 1xR+L pair
- Digital Coaxial Audio output
- 0/12V output
- 12V DC RCA output
RS-232
- Type: 9-pin D-SUB
- Gender: Male
- Transfer Rate: 115,2 bps
- 1*USB Type: 2.0
- 1*HDMI Slots: Version: 1.2
- ETHERNET: 1xRJ45
Power Supply
- Input VoltageType: AC 50/60Hz; from 100V to 250V
Power Supply
- Type: SMPS
- Power Consumption: 12W max.
- Standby Power Consumption: <1W max.
Protection: Internal Fuse,Lightning protection
- Physical Specification
- Size: (Wigth)220 mm*(High)40 mm*(Depth)160 mm
- Weight (netto): <1.50 kg
- Operating Temperature from: 5 °C to 45 °C
- Storage Temperature from: -10 °C to 70 °C
