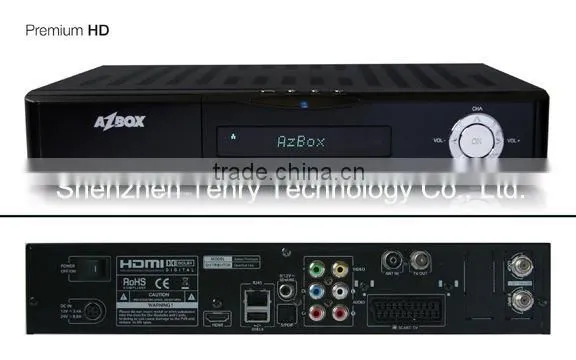

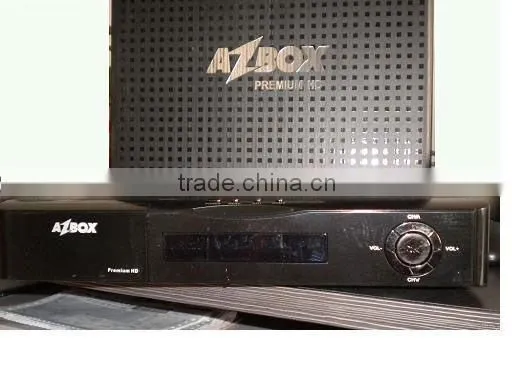

Help CenterAZBOX Premium HD Receptor
Related Products
Specifications
DVB-S2 AZBOX premium HD1. Sigma Designs SMP8634LF CPU
2. Linux OS
3. Big Storage memory
4. Wi-Fi and internal HDD
Popular AZBOX Premium hd Receptor:
DVB-S2 hd premium Azbox
1) Performance Features
Sigma Designs SMP8634LF CPU
Linux Operative System
128 MB DDR System Memory
128 MB DDR Video Memory
Big Storage memory (Nor Flash 8MB, DOM 256MB),
total flash memory 264 MB
PAL and NTSC Video Output formats
Support resolution up to 1080p (supported
resolutions: 576i (480i), 576p (480p), 720p, 1080i, 1080p)
2) Audio and video supported formats and codec’s (For TV applications and Media Player)
Supported Video Containers: MPEG1/2/4 (M1V, M2V, M4V); MPEG1/2 PS (M2P, MPG); MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS), VOB, AVI, ASF, WMV, IFO, ISO; Matroska (MKV), MOV (H.264), MP4, RMP4
VC-1: MP@HL; VC-1: AP@L3 Supported Audio Containers: AAC, M4A, MPEG audio
(MP1, MP2, MP3, MPA), WAV, WMA, FLAC, Ogg Supported Audio Codec’s: AAC; AAC +; Dolby
Digital, WMA, WMA Pro, MP1, MP2, MP3, LPCM, FLAC, Vorbis, Audio Passthrough: DTS; Dolby Digital
Supported subtitles formats: SMI, SRT, TXT, SUB, SSA Supported pictures formats: JPEG, BMP, GIF
3) DVB-S/S2 Tuner Specifications
Input Frequency: 950 ~ 2150Mhz
Modulation: QPSK, 8PSK
FEC: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 6/7, 7/8, 8/9, 9/10
Demodulation IC: CX24116
Input Impedence: 75Ω
IF Frequency: 36.128Mhz

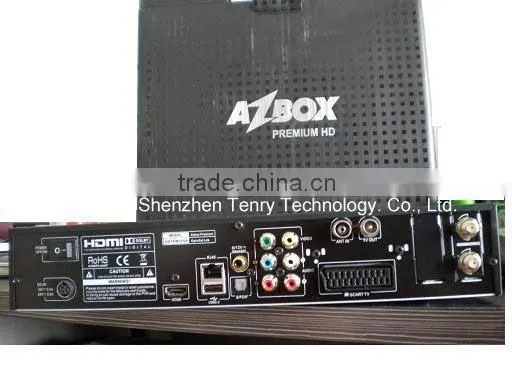

4) Connections
1x HDMI
3x Video Component (YCbCr)
1x RCA Video
2x RCA Audio (L/R)
1x RJ45
2x USB 2.0
1x Optical S/PDIF
1x SCART
1x 0/12V
1x RF Modulator ANT In, TV Out
1x Power Switch
5) Wi-Fi
802.11b/g miniPCI
6) Internal HDD socket
Internal socket for 2,5'' and 3,5'' Hard Disk Drives
7) Accessories
RCU with batteries, power adapter and power cable
8) Power consumption
5 W in standby mode
60 W in operation with HDD
9) Measurement details
Dimensions (W x H x D): 340x 243 x 66 (mm)
Gross Weight: 2.65 kg
Net Weight: 2.11 kg
Gross Weight with HDD: 3.04 kg
Net Weight with HDD: 2.49 kg
10) Power Supply (Voltage, Type)
12V 3.4A / 24V 0.8A
