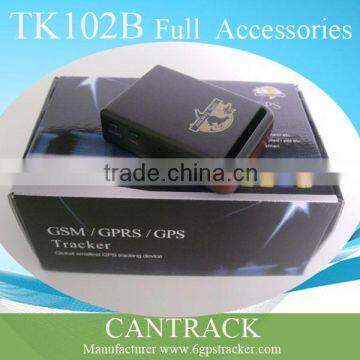

Alibaba gold supplier personal mini gps chip tracker T102B with IOS Android App Platform
[ How to use our GPS trackers to track your vehicle or child in time ?
1). Use your mobile to call device number in tracker, it will reply a google link shows as below:
Http:///?q=N22.674528,E114.023550
Speed:000.0km/h
Time:11:20:03
Date:20/09/13
IMEI:353588020144934
2). Input Latitude & longitude from message on Google earth software or Google mao etc, it will show the currecnt location .
3). Tracking by our gps tracking software, further details please contact us in time.
2. Brief Info
Based on existing GSM/GPRS network and GPS satellites, TK102B can locate and monitor any remote target by SMS or GPRS.
TK102B is compact and easy use for personal and vehicle tracking, with built-in GPS chip and GSM module to capture GPS data.
It will send gps data to authorized mobile numbers by SMS and show the current location on the phone. Also can track the location on Google earth or Google map.
Moreover, GPS data can be transmitted by GPRS to the Internet server for real-time tracking on-line.
Operator can dial the device number by mobile to monitor the voice(Voice surveillance fuction)
3. Application Environment
1)Vehicle rental / Fleet management etc
2)Protect children / the old / the disabled / pet etc
3)Provide peace-of-mind for businessmen
4)Manage Personnel
5)Track Criminals Secretly
6)Magnetic Cover and Waterproof Bag for Hidden Tracking
4. Product Functions
A, Real-time tracking : know your car location anytime anywhere
B, Continuous tracking: send a tracking data every 30s
D, Remote voice surveillance: dial the device number to monitor the voice around the device
E, Geo-fence: device will send alarm once exceed the designed geo-fence
F, Movement alarm: device will send alarm once car exceed the designed place when it keep stay at a place
G, Overspeed alarm: device will send alarm once driving speed exceed the value
H, SOS alarm: it will send alarm if press the SOS button
I, Low voltage alarm: when the voltage close to 3.7V it will send alarm
J,Support TF card to storage data when there is no GSM signal
Dimension |
64mm x 46mm x 17mm |
Weight |
50g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900 |
GPS Chip |
MT3336 |
GPS Sensitivity |
-159dBm |
GPS Accuracy |
5m |
Time To First Fix |
Cold status 45s Warm status 35s Hot status 1s |
| Wall charger | 110v-220v input |
| Battery charger | 5v output |
Car Charger |
12v-24v input |
5v output | |
Battery |
Chargeable changeable 3.7V 800mAh Li-ion battery |
Standby |
48hours |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +55°C |
Humidity |
5%--95% non-condensing |
1.Any inquiry will be replied within 24 hour.
2.Professional manufacturer and Strict Quality Control. Please visit our website at :htttp://
3.OEM &ODM aviailable
1›Silk-printing logo on the device
2›Customized color box
3›We can help you convert any of your idea into production
4.High Quality ,Unique Design,Reasonable&Competitive price,Fast Lead Time
5.Warranty
All devices have been strictly Quality Checked in house before packaging.
All products have been well packed before shipping.
One year warranty for all modules.All products will be free from maintenance within the warranty period.
6.Faster Delivery
1).Sample and mini order(within 1~3 working days after receipt of payment)
2).Bulk order,lead time will be 2~5 days after receipt of payment.Please contact us to make sure the current inventory.
7.Payment
T/T,Western Union,Paypal
8.Shipping
We have strong cooperation with DHL,TNT,UPS,FEDEX,China ari port. You may also choose your own forwarder.
Welcome to contact us at Skype:cantrackgps6 Mobile:+86 13713801172
