Home > Computer Products > Network Hardware & Parts > Network Switch > SWITCH,SMART,,POE,8 PORT,1-8 Port Support PoE (15.4Watts per Port)

SWITCH,SMART,,POE,8 PORT,1-8 Port Support PoE (15.4Watts per Port)

SWITCH,SMART,,POE,8 PORT,1-8 Port Support PoE (15.4Watts per Port) thumbnail-1
SWITCH,SMART,,POE,8 PORT,1-8 Port Support PoE (15.4Watts per Port) thumbnail-2
SWITCH,SMART,,POE,8 PORT,1-8 Port Support PoE (15.4Watts per Port) thumbnail-3
SWITCH,SMART,,POE,8 PORT,1-8 Port Support PoE (15.4Watts per Port) thumbnail-4
SWITCH,SMART,,POE,8 PORT,1-8 Port Support PoE (15.4Watts per Port) photo-1
SWITCH,SMART,,POE,8 PORT,1-8 Port Support PoE (15.4Watts per Port) photo-2
SWITCH,SMART,,POE,8 PORT,1-8 Port Support PoE (15.4Watts per Port) photo-3
SWITCH,SMART,,POE,8 PORT,1-8 Port Support PoE (15.4Watts per Port) photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≤ 8
Transmission Rate:
10/100/1000Mbps
Contact Supplier Request Quote Chat Now
Optical Network Video Technologies (Shenzhen) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, ≤ 8
Transmission Rate 10/100/1000Mbps
Function POE
Communication Mode Other, Full-Duplex & Half-Duplex
Certification CE,FCC,RoHS, FCC Class A, CE, RoHS
Switch Capacity 16Gbps
Brand Name ONV
Model Number ONV-POE33008P
Place of Origin China

Feature
IEEE 802.3af power on up to 8 ports
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
8 10/100/1000 Mbps Ports with AutoUplink™
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 120W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Hardware based 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDI-X
8K entry MAC address table of the PoE Switch ONV-POE33008P with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply

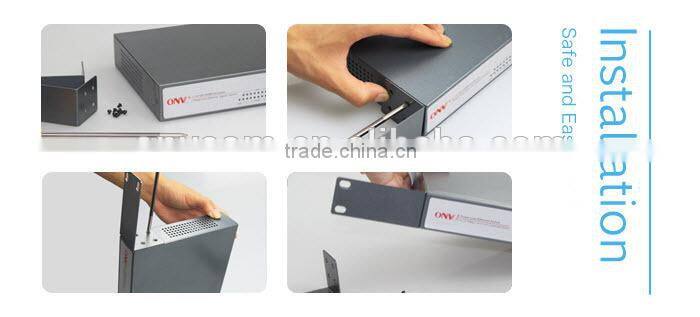

Installation Steps



SWITCH,SMART,,POE,8 PORT,1-8 Port support PoE (15.4Watts per port)





Target Industries
HD monitor transmission and power supply
Wireless AP layout transmission and power supply
Network telephone transmission , intelligent house and home system
Intelligent transportation supervisory system (ITS)
High-speed Way supervisory/Tele-Communication System
Security protection system, TV medical treatment
Long-distance Muti-media Schooling, Campus monitoring
Long-distance broadcast television transmission system
High-building Security Protection, Military Tele-Com projects

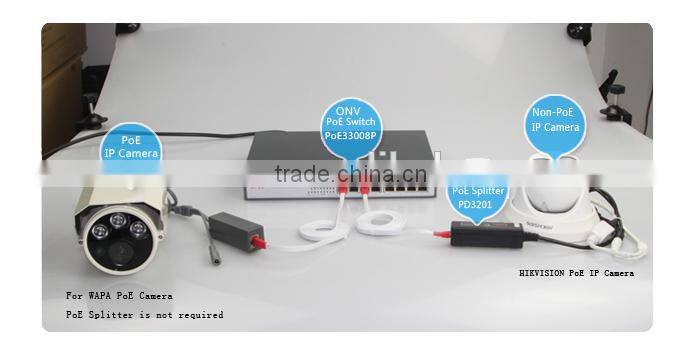

Physical Application Reference

SWITCH,SMART,,POE,8 PORT,1-8 Port support PoE (15.4Watts per port)

The picture



SWITCH,SMART,,POE,8 PORT,1-8 Port support PoE (15.4Watts per port)

SWITCH,SMART,,POE,8 PORT,1-8 Port support PoE (15.4Watts per port)

SWITCH,SMART,,POE,8 PORT,1-8 Port support PoE (15.4Watts per port)



Specification



Product Name 8-Port Gigabit PoE Switch 15.4W
Model ONV-POE33008P
Connector Type 8x 10/100/1000Mbps RJ45 Ports
Network Media 1000Base-TX (≤100m, Catalogue 5 cable)
Bandwidth 16Gbps(No blocking)
Address Database Size 1K
Network Latency Switch Throughput:11.9Mpps@64Bytes
Forwarding Mode Store-And-Forward Architecture
LED Display Power, Ethernet Data, PoE working status
PoE Ports 1-8 Port support PoE (15.4Watts per port)
PoE Port Power 15.4Watts per port)
PoE Standard IEEE802.3af
PoE Feature Output power 15.4Watts (IEEE802.3af)
Power Consumption 120W
Working Environment Working temperature:-20°~ 55°C , Storage temperature: -40°~ 85°C,Working Humidity: 5%~95%, non-condensing
Certification FCC Class A, CE, RoHS
Radiation No
Power Supply Type End-span (Mid-span optional)

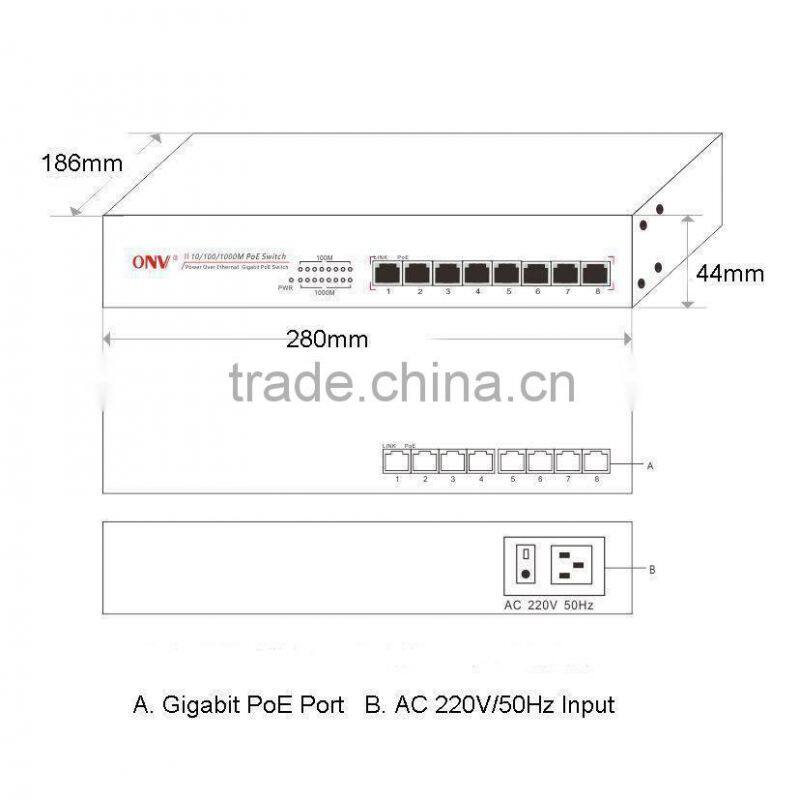

Product Size 279X195X44mm
Warranty 1 Year Warranty, Life-time Maintenance










Order Information

Product Model: ONV-POE33008P
Description: 8-PORT 10/100/1000M SWITCH WITH 8-PORT POE, IEEE 802.3af, PoE Power Output:15.4Watts,PoE Budget: 120Watts
Power Pin Assignment: Data provided over pairs over 1/2 and 3/6 ,Power over spare pairs 4/5(+) and 7/8 (-)





Accessories in the Package:



SWITCH,SMART,,POE,8 PORT,1-8 Port support PoE (15.4Watts per port)

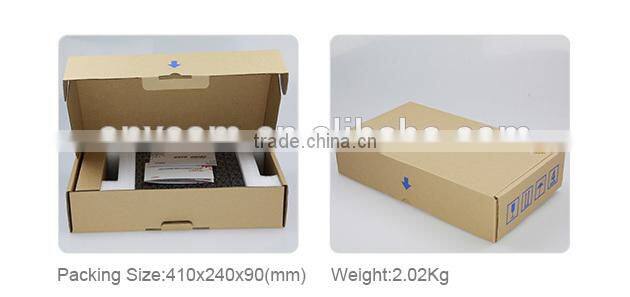

Package Contents



 8-PORT 10/100/1000M SWITCH WITH 8-PORT POE (ONV-POE33008P)



 AC Power Cable

 User Guide



 Warranty Card

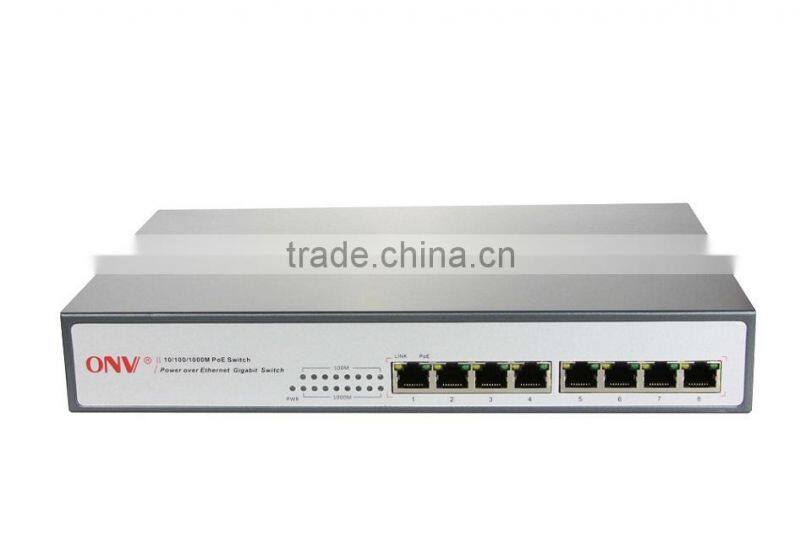

Product Display











SWITCH,SMART,,POE,8 PORT,1-8 Port support PoE (15.4Watts per port)

Certificate:



SWITCH,SMART,,POE,8 PORT,1-8 Port support PoE (15.4Watts per port)







Factroy :

SWITCH,SMART,,POE,8 PORT,1-8 Port support PoE (15.4Watts per port)
