Managed 18 -Port POE Switch for IP Camera with 2 Gigabit TP/SFP Combo Ports (260Watts/440Watts)
Specifications:
| Product | 16-PORT 10/100 SWITCH WITH 16-PORT POE |
| Type | POE31016PM |
| Network Ports | 16 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Power Pin Assignment |
Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-) |
| PoE Distance | 100m |
| Transmission Method | Store-And-Forward |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| Performance Specifications | Bandwidth:7.2 Gbps |
| Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission | |
| Buffer memory:8M embedded memory per unit | |
| Address database size:8,000 media access control (MAC) addresses per system | |
| Addressing:48-bit MAC address | |
| Mean Time Between Failure (MTBF):190,000 hours (~ 21 years) | |
| Acoustic Noise: 0 dB | |
| Network Protocol and Standards | IEEE 802.3i 10BASET |
| IEEE 802.3u 100BASETX | |
| IEEE 802.3x Flow Control | |
| IEEE 802.1af DTE Power via MDI | |
| IEEE 802.3af | |
| Status LEDs | System: Power, PoE Maximum Power |
| Per Port: Link, Activity, Speed, PoE Active, PoE Fault | |
| Power Supply | Total Power Consumption: 440 W maximum |
| PoE Watt budget: 260W | |
| IEEE802.3af Power Consumption: 250W maximum (Ports 1 – 16) | |
| AC110~265V 50Hz | |
| Physical Specifications | Dimensions (H x W x D):44 x315 x 440mm |
| Weight:2.25kg | |
| Environmental Specifications | Operating temperature: 0 to 55°C |
| Storage temperature: -20 to 75°C | |
| Operating humidity: 90% maximum relative humidity, non-condensing | |
| Storage humidity: 95% maximum relative humidity, non-condensing | |
| Operating altitude: 10,000 ft (3,000 m) maximum | |
| Storage altitude: 10,000 ft (3,000 m) maximum | |
| Electromagnetic Emissions | CE mark, commercial |
| FCC Part 15 Class B | |
| VCCI Class B | |
| EN 55022 (CISPR 22), Class B | |
| Safety | CE Mark ,commercial |
| CE/LVD EN60950 | |
| Warranty | 1 years for PoE Switch |
| 2 years for power supply | |
| Package Contents | 16-PORT 10/100 SWITCH WITH 16-PORT POE (POE31016PM) |
| AC power line | |
| Installation guide | |
| Warranty/Support Information card |
Mangement Specifications:
| Power Supply Type | End-span (Mid-span optional) |
| QoS | Based on Port QoS |
| NM | Configuration management based on Web |
| NMP | SNMP,IEEE 802.1Q ,IEEE 802.1p ,802.3ad ,802.1D |
Order Information:
Product:POE31016PM
Type:16-PORT 10/100 SWITCH WITH 16-PORT POE,IEEE 802.3af,PoE Power Output:15.4Watts,PoE Budget:270Watts
Power Pin Assignment:Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)
Accessories in the package:
| Package Contents | 16-PORT 10/100 SWITCH WITH 16-PORT POE (POE31016PM) |
| AC power line | |
| Installation guide | |
| Warranty/Support Information card |
Department / Workgroup PoE Switch:

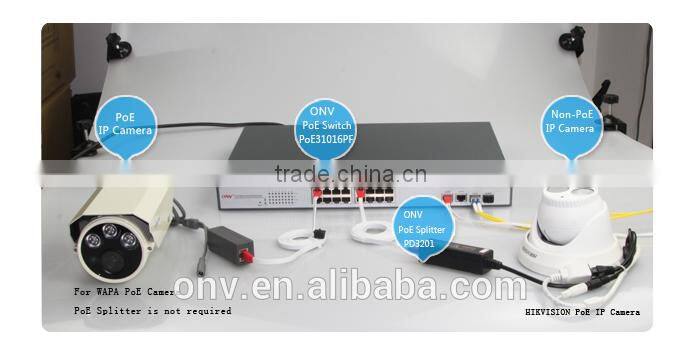

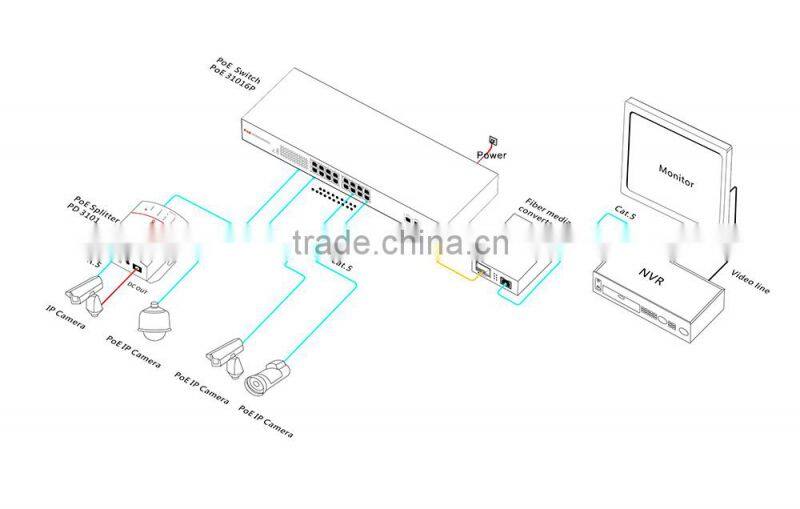

Providing 16-Port PoE in-line power interfaces, the POE31016P can easily build a power centrally-controlled IP phone system, IP Camera system and Wireless AP group for the enterprise. For instance, up to 16 PoE IP cameras can be installed around the corner in the company for surveillance demands or up to 16 PoE Wireless AP to build a wireless roaming environment in the office. Without the power-socket limitation, the Switch makes the installation of cameras or Wireless AP more easily and efficiently.
18-Port POE Switch : POE 31016PM
To provide enhanced network management with cost saving benefit to customers, ONV releases the new version of the POE31016PM, the Layer 2 Web Smart Switch with PoE injector function.
The POE31016PM is equipped with 16 Fast Ethernet ports integrating with PoE injector function. With 270 Watts PoE power budget, it provides a compact, affordable, safe and reliable power solution for small to medium enterprises.
Product features:
IEEE 802.3af power on up to 16 ports
Supply power to wireless access points and surveillance cameras over Cat-5 cabling
16 10/100 Mbps Ports with AutoUplink™
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 250W for all PoE ports
Supports PoE IEEE 802.3af compliant PDs
Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
8K entry MAC address table of the PoE Switch POE31016PM with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply
Reset button for system management
Remote Web interface for Switch management and setup
Target Industries:
HD monitor transmission and power supply
Wireless AP layout transmission and power supply
Network telephone transmission , intelligent house and home
system
Intelligent transportation supervisory system(ITS)
High-speed Way supervisory/Tele-Communication System
Security protection system, TV medical treatment
Long-distance Muti-media Schooling, Campus monitoring
Long-distance broadcast television transmission system
High-building Security Protection, Military Tele-Com projects

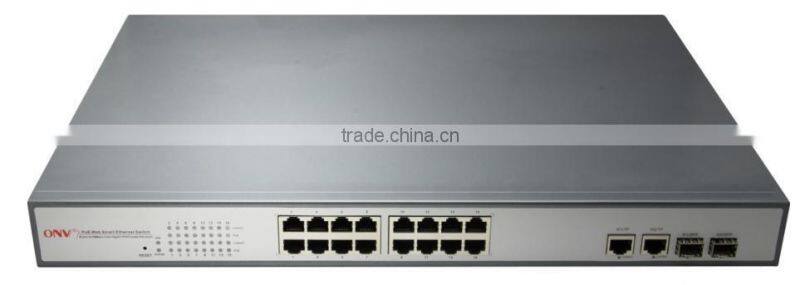

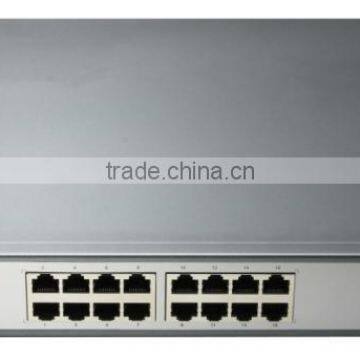

Product pitcture:

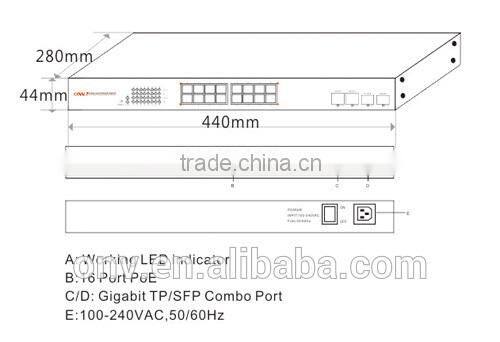

Demension:

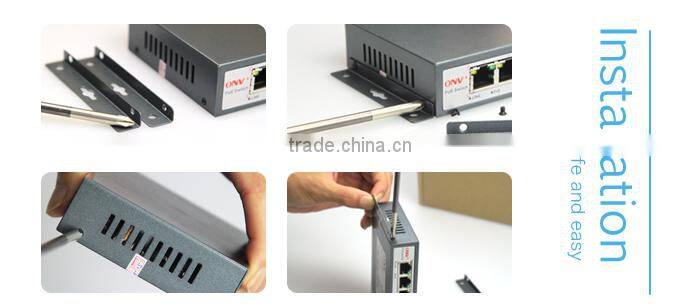

Installation Step:
Certificate:
Office and factory picture:

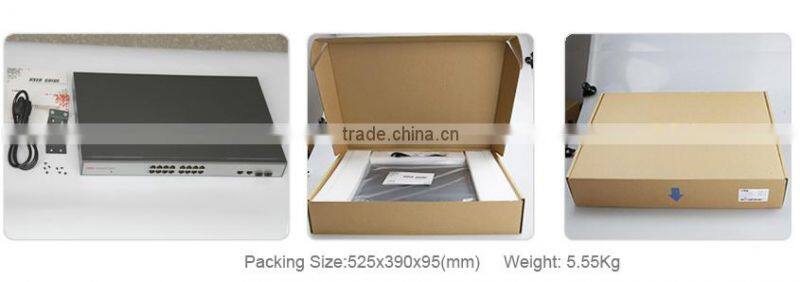

Packing pictrue:
Welcome your inquiry, feel free to contact us with more information,please!
