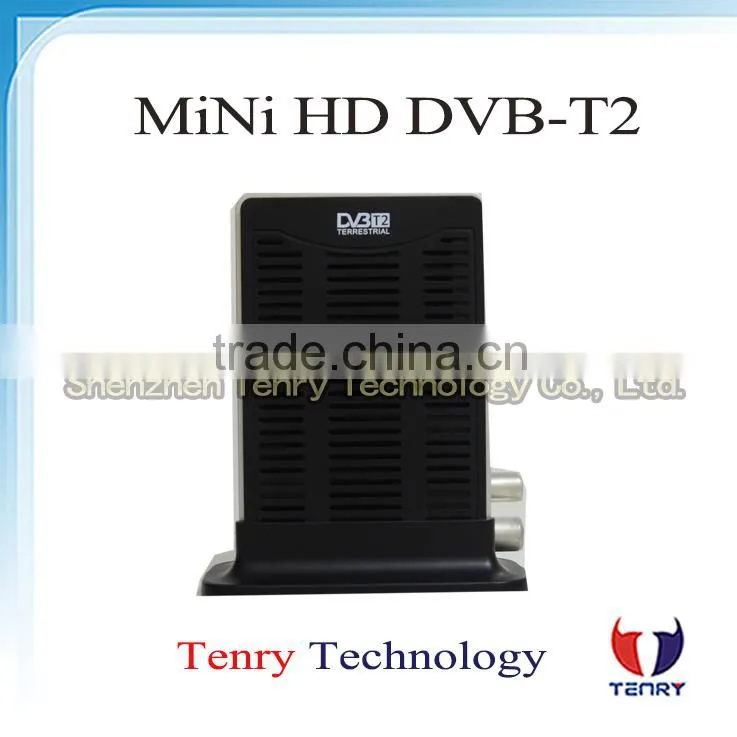

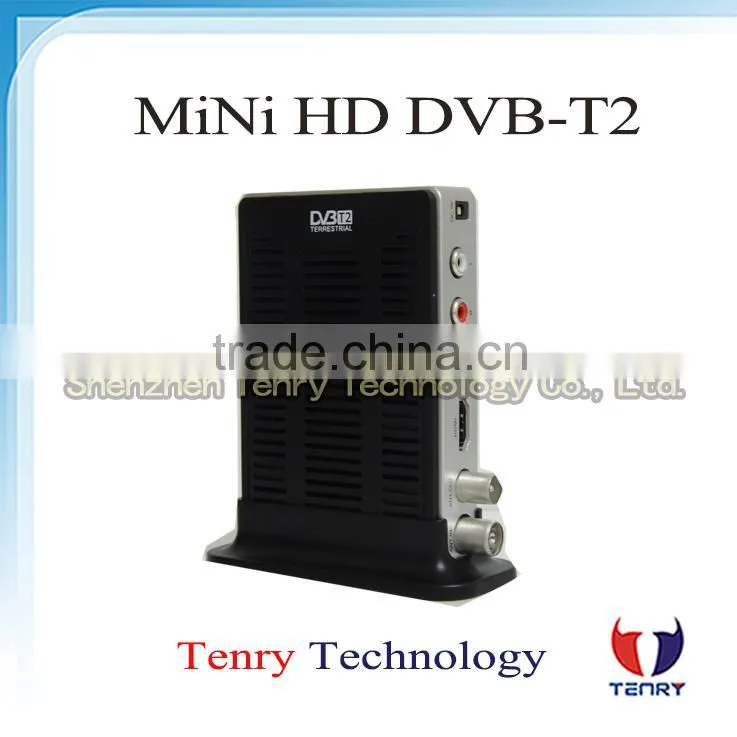

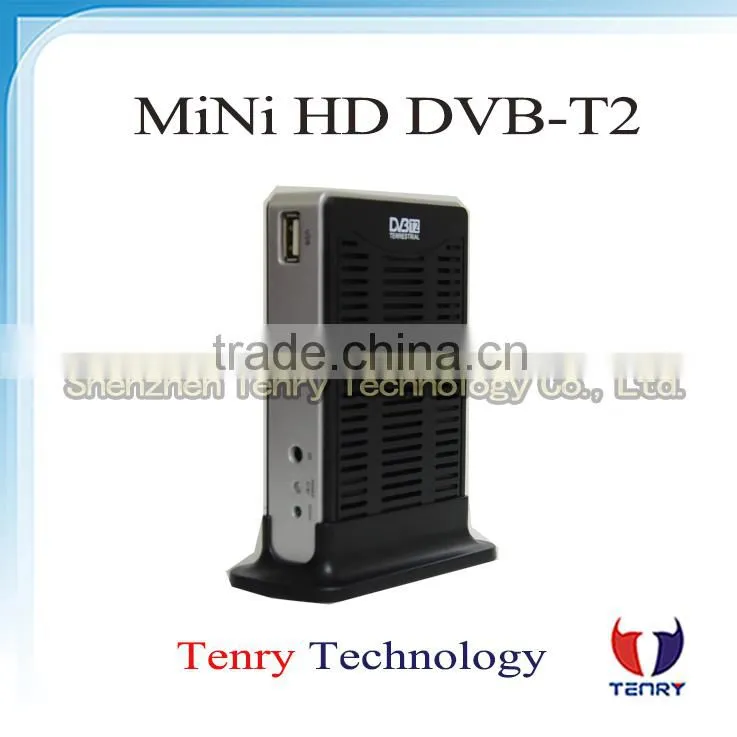

MINI DVB-T2,DVB-T2 Set Top Box,Tuner DVB-T2

MINI DVB-T2,DVB-T2 Set Top Box,Tuner DVB-T2 thumbnail-1
MINI DVB-T2,DVB-T2 Set Top Box,Tuner DVB-T2 photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TENRY
Model Number:
TEN028
Contact Supplier Request Quote Chat Now
Shenzhen Tenry Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TENRY
Model Number TEN028

Specifications

DVB-T2,DVB-T2 Set Top Box,Tuner DVB-T2
1.MPEG-4/H.264 DVB-T2
2. USB 2.0 &HDMI
3.PVR,view JPEG
4.DVB-T2/DVB-T

HD DVB-T2  (Digital Video Broadcasting – Second Generation Terrestrial)



HD Tuner DVB-T2 Tuner Main Features



with DVB-T2 standard



* MPEG-2 MP@ML/ MPEG-4, H.264 SD& HD Decoding



* MPEG Layer 1& 2, Dolby Digital Audio Decoding



* Supports AVI, MPG, VOB, MPEG, DIV, etc multimedia play formats



* Video resolution support: 1080P/ 1080i/ 720P/ 720i/ 576



* Multi language menu supported



* 1000 TV channels and radio programs available



* Supports USB upgrade, PVR playback



* Standard Electronic Program Guide(EPG)



* Supports multi-search function, including automatic/ manual/ list search



* Screen display ratio: 4:3 and 16:9



* Various channel editing function(Favorites, Move, Skip, Lock, and Delete)



* Switch power supply of AV 90-250V



 Specifications of DVB-T2 Decoder



MPEG4 Fully SD/HD Tuner DVB-T/T2,  SD/HD MPEG2 and  MPEG4 AVC H.264
Resolution Full HD tuner DVB-T2,support up to 1080P
PAN/NTSC Automatic PAL/NTSC conversion
Scan Auto and manually scan all available TV and radio channels
Channels Number Aspect ratio 16:9 and 4:3, 1000 channels memory
OSD Language OSD language:Arabic, Bosnian, French, German, Russian, English


EPG Small windows screen picture with EPG graphic menu,7-Day EPG function
Channel Search Auto search & Manual search function
SoftUpgrade Software upgrade via USB
Teletext Support teletext/ subtitle/audio language selection,VBI Teletext,Teletext/ Bit Map subtitle, compliant with ETS1
control Parental control
Save Channel Automatic save for last channel
LCN Support Logic Channel Number(LCN)
USB USB2.0 Front Panel,
Multimedia Format      Picture: JPEG,BMP,PNG
  Audio: MP3,WMA
  Video: DivX,MPG,MKV,MP4,AV

1.Main Chip Sets
Flash Memory 32MB Serial Flash
DDR2 Memory 512MB
Demodulator IC
2.Tuner
Input Frequency VHF:  174~230MHz,UHF: 470~862MHz
RF input Level -20~-81dBm
IF Bandwidth 7MHZ and 8MHZ
Modulation QPSK,16QAM,64QAM,256QAM
3.USB Decode
DVR supporting Stereo/MONO/Left/Right
Media Supporting USB2.0 Port, playback the media in USB flash disk or USB HDD
USB2.0 HOST DVR with USB HDD, Time shifting with USB HDD
4.Multimedia support format
music MP3,WMA
photo JPEG,BMP,PNG
5.Video Decode
Decode Format MPEG-2 MP@HL, MPEG-4 SP, DIVX1 3.11(Optional), 4.X, 6.X,FLV Format, H.264MP@HL, VC-1,RM&RMVB(Optional)
Output Format 1080p,1080i,720p,576p,576i,480p,480i
Aspect Ratio 4:3/16:9/Letterbox/ selectable

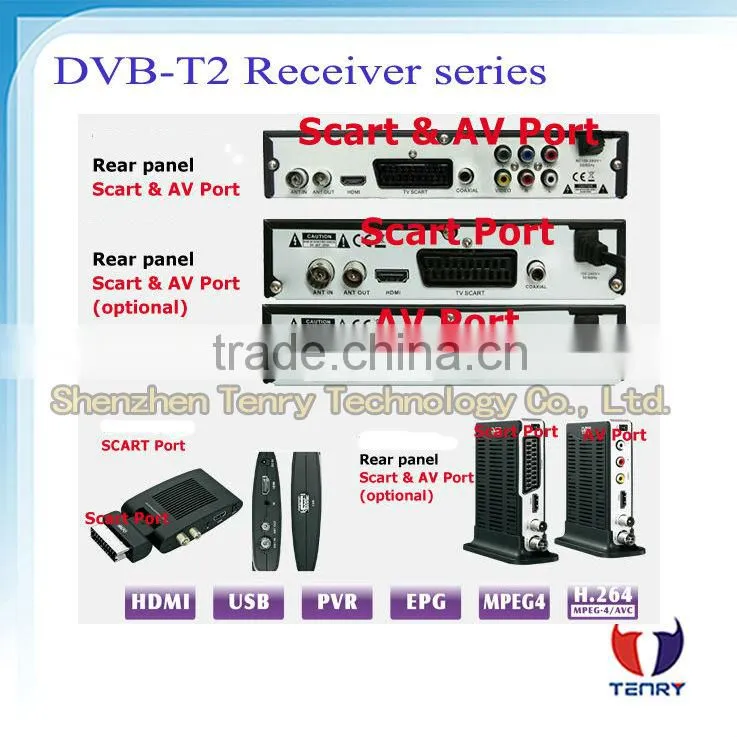

Output Port HDMI(V1.3C),YPbPr,CVBS
6.Audio Decode
Decode Format MPEG-1,MPEG-2 (Layer I/II),MP3, AC-3(Optional),E-AC-3(Optional),AAC-LC,HE-AAC 5.1
Audio output S/PDF(Coaxial),RCAX2(L/R)
7.AV Output
Video Bandwidth 5.5MHz(-3dB)
Video Impedance 75Ω
Video Voltage Level 1.0 Vp-p
Audio Freq. Range 20~20KHz
Audio Impedance 600Ω
Audio Voltage Level 2V rms(5.6Vp-p)



Packing Details of tuner DVB-T2



Unit Packing Size

PCS/ Carton

230*210*45mm

20pcs

Carton CBM (0.06m3)

QTY per Container

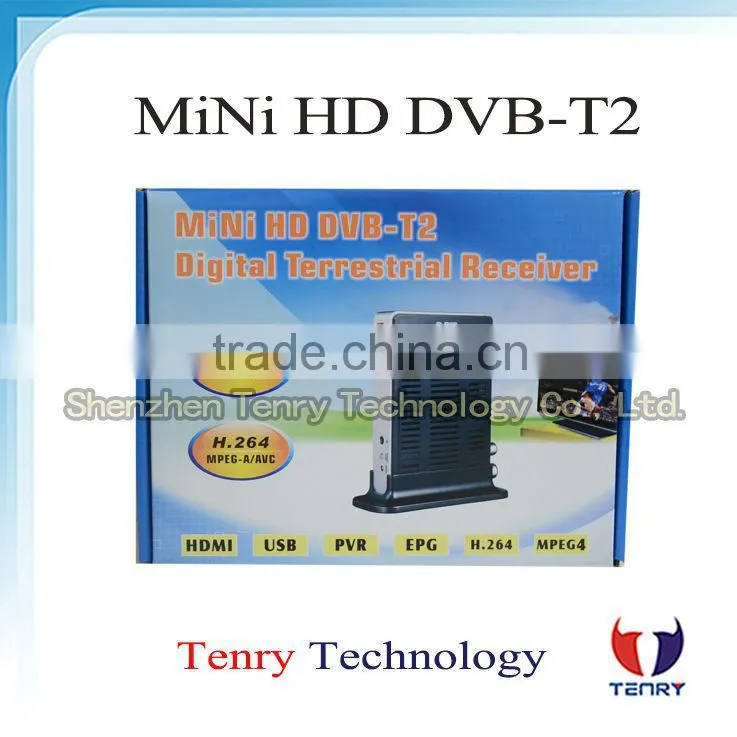

Gift box

15.5*9*5.5

Unit Weight:

Carton Weight:

0.68kg

16.5kg
