Power over ethernet splitter 48v input 25.5W 5V/12V option
Feature
1. Complies with IEEE 802.3at Power over Ethernet, IEEE 802.3/802.3u 10/100Base-TX Ethernet standard
2. Splits the 48V DC power over RJ-45 Ethernet cable into different DC output
3. LED indicators for power input indication
4. Data and power transmission distance up to 100 meters
5. Adjustable two different output voltage options (5V/2A, 12V/2A) to fit various devices
6. Auto-Detect of IEEE 802.3af PoE equipment, protects devices from being damaged by incorrect installation
7. Works with EIA568, category 5,4-pair cables for 10Base-Tor100Base-TX

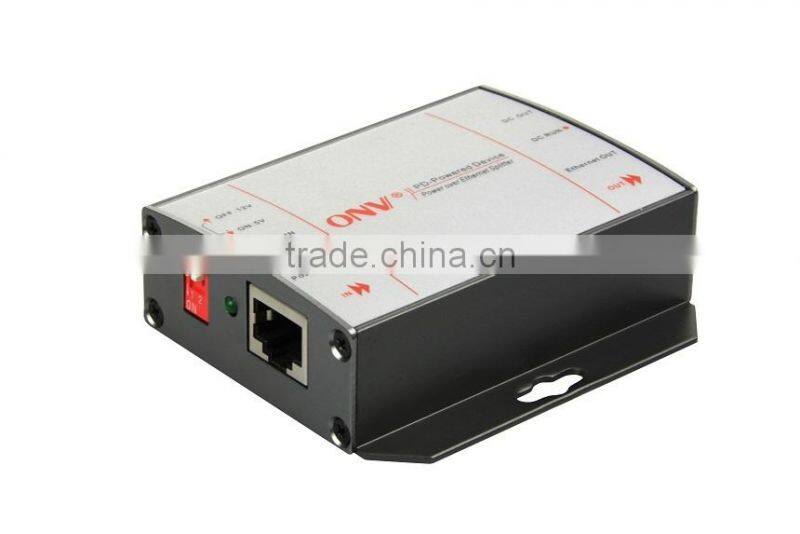

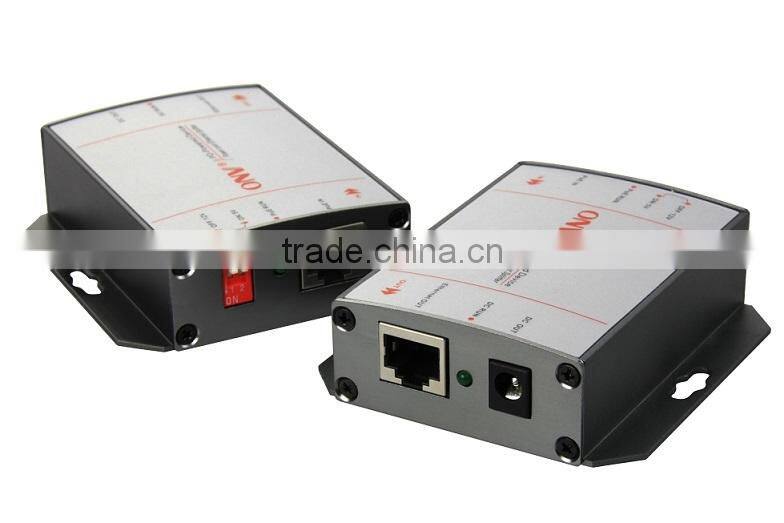

The picture
Specification
| Product Name | 10/100M 802.3at PoE Splitter 5V/12VDC 25.5W |
| Product Model | ONV-PD3101-at |
| Connector Type | Input: PoE port, Output: DC12/5V Power, RJ45 |
| Network Medium | 100Base-TX (≤100, Catalogue 5 cable) |
| Network Protocol | IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| Performance | 5V/12VDC Adjustable |
| PoE Port | Power over Ethernet (25.5W) |
| PoE Port Power | Output Power: 25.5Watts. |
| PoE Standard | IEEE802.3at (25.5Watts Output) |
| PoE Power Supply Type | Support Both Mid-span and End-Span |
| PoE Cable Core | 4/5+,7/8- and 1/2+, 3/6- |
| LED Display | Power, Network, PoE working status |
| Product Size | LxWxH: 80x76x25mm, 0.16Kg |
| Package Size | LxWxH: 120x88x50mm, 0.21Kg |
| Working Environment | Operating temperature: 0 to 55° C Storage temperature: -20 to 75°C |
| Warranty | 1 Year Warranty |
Order Information
Product Model:ONV-PD3101-at
Description:10/100M 802.3at PoE Splitter, IEEE 802.3at, 25.5Watts,5VDC/12VDC output, 10/100M
Power Pin Assignment: Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-)
Accessories in the Package
| Package Contents | 10/100M PoE Splitter |
| DC power line | |
| Installation guide | |
| Warranty Card |
Our factory and sale office
Shipment
Why choose ONV?
1. Have CE,FCC,ROHS certification
2. Twelve years of production experience
3. Have a R&D team
4. Good services
5. Prompt delivery
6. Competitive prices
7. Accept OEM & ODM cooperation
If you still have problen about our product or you want know more information about it, we are glad to serve you anytime.
