10/100/1000M Full Duplex Repeater-poe Splitter 802.3af
US$ 1 - 20
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≤ 8
Transmission Rate:
10/100/1000Mbps
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ONV Promote Product 10/100M Ethernet Splitter Rj45 POE Splitter Support IEEE802.3afUS$ 1 - 20MOQ: 1 Piece -
ShenZhen ONV Company Gigabit 802.3at PoE Splitter (PD3101G-at)US$ 1 - 20MOQ: 1 Piece
-
ShenZhen ONV Company Gigabit Poe Splitter Single Port Consumer's FavoriteUS$ 1 - 20MOQ: 1 Piece
-
Long Distance Extention 10/100M PoE Extender IEEE802.3afUS$ 1 - 20MOQ: 1 Piece
-
10/100M Camera Video Splitter POE Splitter Support IEEE802.3afUS$ 1 - 20MOQ: 1 Piece
Products Status
Stock
Ports
Other, ≤ 8
Transmission Rate
10/100/1000Mbps
Function
POE, SNMP, VLAN Support
Communication Mode
Other, Full-Duplex & Half-Duplex
Certification
CE,FCC,RoHS
Brand Name
ONV
Model Number
ONV-PD3101G
Place of Origin
Guangdong, China
Product Description
10/100/1000M camera video poe splitter support 802.3af
Feature
- Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3ab 10/100/1000Base-T Ethernet standard
- Splits the 48V DC power over RJ-45 Ethernet cable into different DC output
- LED indicators for power input indication
- Data and power transmission distance up to 100 meters
- Adjustable two different output voltage options (5V/2A, 12V/1A) to fit various devices
- Auto-Detect of IEEE 802.3af PoE equipment, protects devices from being damaged by incorrect installation
- Works with EIA568, category 5,4-pair cables for 10Base-Tor100Base-TX

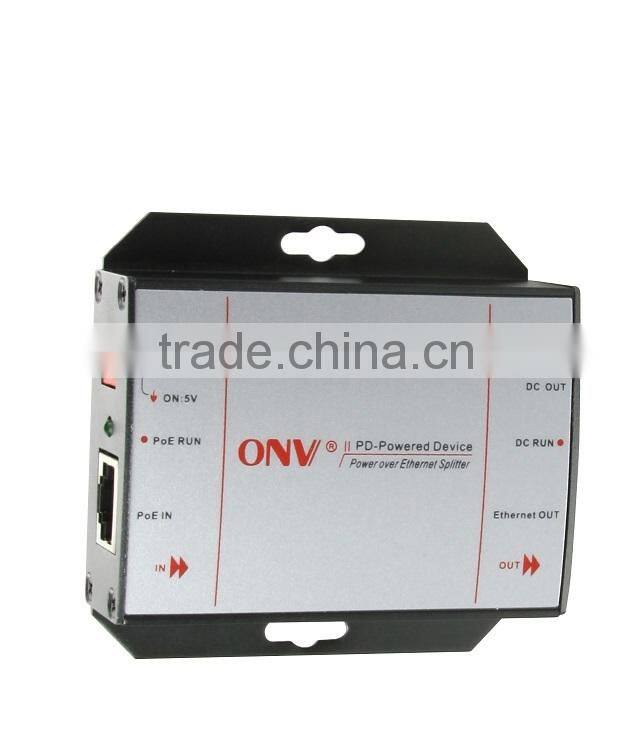

The picture
Specification
| Product Name | 10/100/1000M PoE Splitter DC 5V/12V 15.4W |
| Product Model | ONV-PD3101G |
| Connector Type | Input: PoE port, Output: DC12/5V , RJ45 |
| Network Medium | 1000Base-TX (≤100, Catalogue 5 cable) |
| Network Protocol | IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| Performance | 5V/12VDC Adjustable |
| PoE Port | Power over Ethernet (15.4W) |
| PoE Port Power | Output Power: 15.4 Watts. |
| PoE Standard | IEEE802.3af (15.4Watts) |
| PoE Power Supply Type | Support Both Mid-span and End-Span |
| PoE Cable Core | 4/5+, 7/8- and 1/2+, 3/6- |
| Power Consumption | 15.4Watts |
| Certifications | CE mark,commercial,FCC Part 15 Class B, RoHS |
| LED Display | Power, Network, PoE working status |
| Product Size | LxWxH: 80x76x25mm, 0.15Kg |
| Package Size | LxWxH: 120x88x50mm, 0.2Kg |
| Working Environment | Operating temperature: 0 to 55° C Storage temperature: -20 to 75°C |
| Warranty | 1 Year Warranty |
Order Information
Product Model:ONV-PD3101G
Description:10/100/1000M PoE Splitter, IEEE 802.3af, 15.4Watts,5VDC/12VDC output, 10/100/1000M
Power Pin Assignment:Data provided over pairs over 1/2 and 3/6 ,Power over spare pairs 4/5(+) and 7/8 (-)

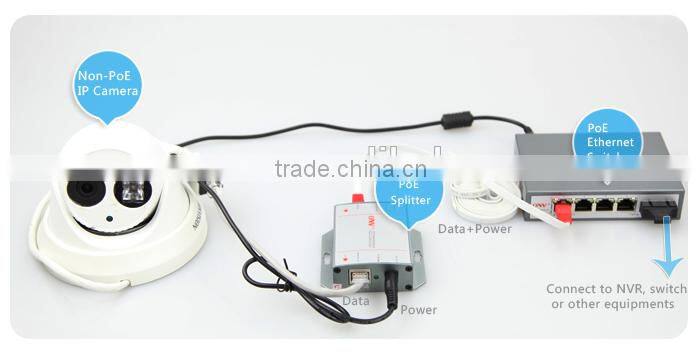

Application
Accessories in the Package
| Package Contents | 10/100/1000M PoE Splitter |
| DC power line | |
| Installation guide | |
| Warranty Card |
Why choose ONV?
- Twelve years of production experience
- Have a R&D team
- Good services
- Prompt delivery
- Competitive prices
- Accept OEM & ODM cooperation
Our factory and sale office

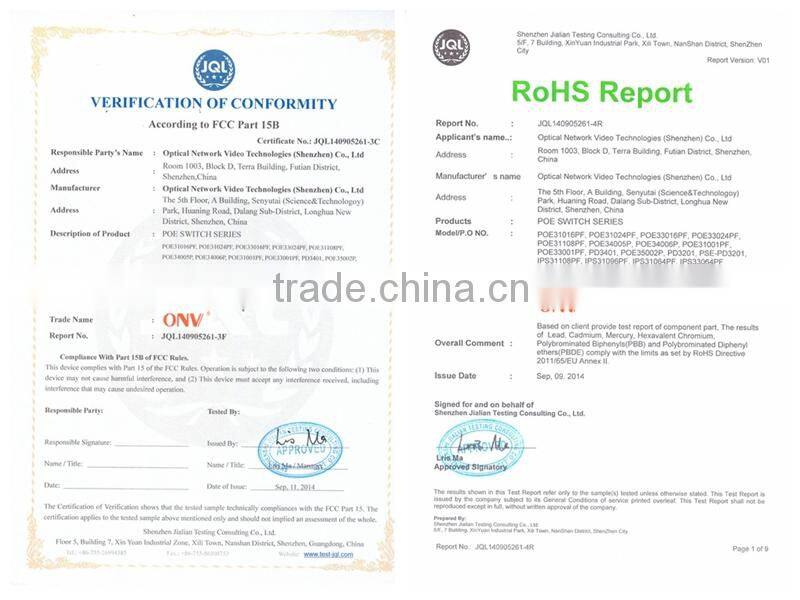

Certification
Attended exhibition
If you still have problen about our product or you want know more information about it, we are glad to serve you anytime.
