Home > Computer Products > Network Hardware & Parts > Network Switch > Gigabit 8 Port Poe Injector/ Poe Midspan Supplier
Gigabit 8 Port Poe Injector/ Poe Midspan Supplier
US$ 1 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, 16, 8 ports in and 8 ports out
Transmission Rate:
10/100/1000Mbps
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Quality and Best Sale Poe Injector 10/100M 8 Ports Midspan Poe Injector 802.3atUS$ 1 - 100MOQ: 1 Piece -
ShenZhen ONV Company 16 Port Power Over Ethernet Gigabit Poe InjectorUS$ 1 - 100MOQ: 1 Piece
-
ONV Company 10/100M 16 Port Power Over Ethernet Poe Injector for IP Camera(ONV-PSE31016)US$ 100 - 250MOQ: 1 Piece
-
ShenZhenONV Company 10/100M Poe Injector 16 Port for Security System Support IEEE802.3afUS$ 100 - 250MOQ: 1 Piece
-
24 Ports PoE Midspan With Each Port 60W SwtichNegotiableMOQ: 1 Piece
Products Status
Stock
Ports
Other, 16, 8 ports in and 8 ports out
Transmission Rate
10/100/1000Mbps
Function
POE, SNMP, VLAN Support
Communication Mode
Other, Full-Duplex & Half-Duplex
Certification
CE,FCC,RoHS
Brand Name
ONV
Model Number
ONV-PSE3108G
Place of Origin
Guangdong, China
Product Description
Specifications
poe power supply
1 8 1000Mbps poe output port
2 IEEE802.3af, 15.4W for each poe port
3 AC220v 50Hz input
4 OEM welcome
Original Design 8 Ggabit Port PoE Injector for CCTV security
1 8 10/100/1000Mbps poe output ports
2 8 ethernet input RJ45 ports
3 support power through Cat5 for HD IP camera
4 IEEE802.3af, 15.4W for each poe port
5 AC220v 50Hz input
6 CE/FC/RoHS authentication
7 Ex-work price available
8 OEM/ODM accepted
poe power supply poe injector details
| Brand | ONV | |
| Product | 16 Port POE Injector | 8 POE Out port |
| 8 Ethernet IN port | ||
| Type | PSE3108/ PSE3108-at/ PSE3108G/ PSE3108G-at | |
| Network port | 16 10/100mbps or 10/100/1000Mbps RJ45 ports | Auto MDI/MDIX |
| POE power supply mode | End-span (data pairs 1/2,3/6) (usually this one) | 1/2(+), 3/6(-) |
| Mid-span (spare pairs 4/5,7/8) | 4/5(+), 7/8(-) | |
| Network Medium | 10BASE-T:UTP CAT3/4/5 | <=100m |
| 100BASE-T:UTP CAT5 | <=100m | |
| 1000BASE-T:UTP CAT5 | <=100m | |
| over-temperature protection | >100 degree | |
| Performance Specification | POE Out Voltage:48V | |
| PSE3108/ PSE3108-at:10/100Mbps | ||
| PSE3108G/ PSE3108G-at:10/100/1000Mbps | ||
| Port Protection: meet IEC61000-4-2(ESD) | ||
| MTBF:190,000 hours | ||
| Network Protocol and Standards | IEEE 802.3i 10BASET | |
| IEEE 802.3u 100BASETX | ||
| IEEE 802.3x Flow Control | ||
| IEEE 802.1af DTE Power via MDI | ||
| IEEE 802.3af | ||
| LEDs Indicator | POE working status | |
| power support | Total power: 120W(IEEE802.3af)/ 240W(IEEE802.3at) | |
| POE port power: 15.4W(IEEE802.3af)/ 25.5W(IEEE802.3at) | ||
| AC90V-264V | ||
| Phisical specifications | Dimension:279L x 195W x 44H mm | |
| Weight:1.25kg | ||
| Environmental specifications | Operating temperature:0°Cto 55°C | |
| storage temperature:-20°Cto 75°C | ||
| Operating humidity:10% to 90%( non-condensing ) | ||
| storage humidity:10% to 95%( non-condensing ) | ||
| Quality Ganrantee | CE Mark,Commercial, FCC part 15 class B,RoHS | |
| Waranty | 1 year guarantee | |
Advantages
- we have our own factory, and all our workers are very experienced ones.
- Our R&D team has more than 12 years R&D experience.
- we always adopt the newest design solutions
- our products are with high quaity, and we have passe CE/FC/RoHS certificates.
- We can offer very competitive price in the market.
- We guarantee best after sales service
- Our experts are always ready to help you when you met difficulties in actual application of our products.
Order Information
Product : PSE3108G
| Model | Model description |
| PSE3104 | 4 port 10/100M POE injector, IEEE 802.3af, PoE output 15.4W, Total power consumption 60W |
| PSE3104-at | 4 port 10/100M POE injector, IEEE 802.3af, PoE output 25.5W, Total power consumption 120W |
| PSE3104G | 4 port 10/100/1000M POE injector, IEEE 802.3af, PoE output 15.4W, Total power consumption 66W |
| PSE3104G-at | 4 port 10/100/1000M POE injector, IEEE 802.3af, PoE output 25.5W, Total power consumption 120W |
| PSE3108 | 8 port 10/100/1000M POE injector, IEEE 802.3af, PoE output 15.4W, Total power consumption 120W |
| PSE3108-at | 8 port 10/100/1000M POE injector, IEEE 802.3af, PoE output 25.5W, Total power consumption 220W |
| PSE3108G | 8 port 10/100/1000M POE injector, IEEE 802.3af, PoE output 15.4W, Total power consumption 120W |
| PSE3108G-at | 8 port 10/100/1000M POE injector, IEEE 802.3af, PoE output 25.5W, Total power consumption 240W |
Large pictures for poe power supply poe injector

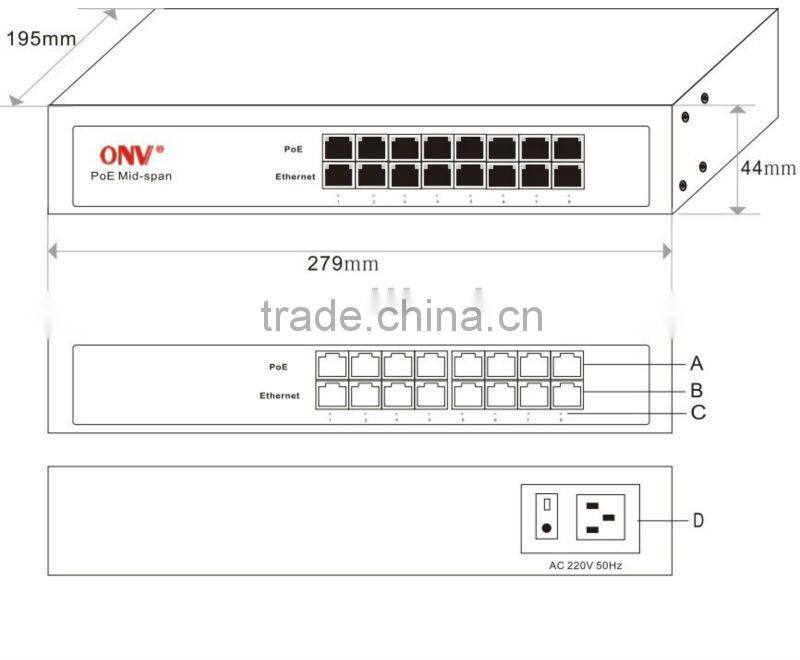

Size picture
Appication
Office pitures
If you still have problen about our product or you want know more information about it, we are glad to serve you anytime.
