ONV Company 10/100M 16 Port Power Over Ethernet Poe Injector for IP Camera(ONV-PSE31016)

Optical Network Video Technologies (Shenzhen) Co., Ltd.

US$ 100 - 250 MOQ: 1 Piece

Key Specifications

Products Status:

Stock

Ports:

Transmission Rate:

10/100Mbps

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Ports 16

Transmission Rate 10/100Mbps

Function POE

Communication Mode Other, Full-Duplex & Half-Duplex

Certification CE,FCC,RoHS

Brand Name ONV

Model Number ONV-PSE31016

Place of Origin China

Product Description

Fast ethernet 16-port poe switch power injector(ONV-PSE31016)

Feature

Supply power to wireless access points and surveillance cameras over cat-5 cabling.
16 -Port 10/100Mbps “Data input”
16 -Port 10/100Mbps “Data + Power output”
2 lightning protection for Power supply input port and network port
Complies with IEEE 802.3af
Supports PoE power up to 15.4W
Remote power feeding up to 100 meters
1U rack design, suitable for cabinet-mounted

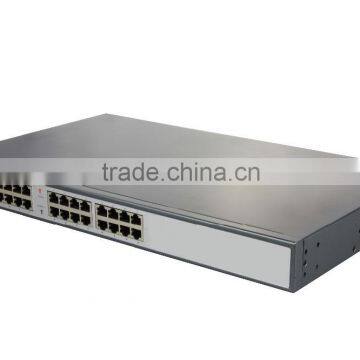

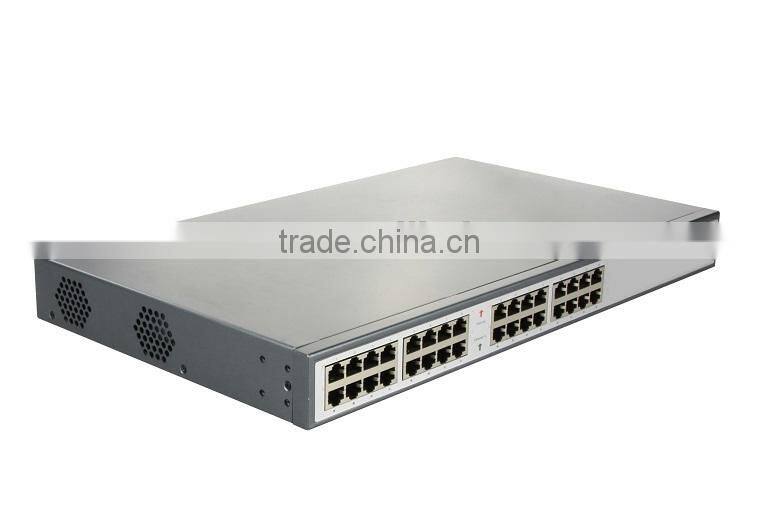

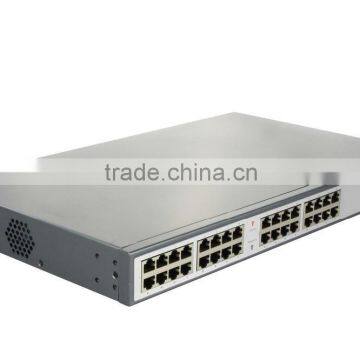

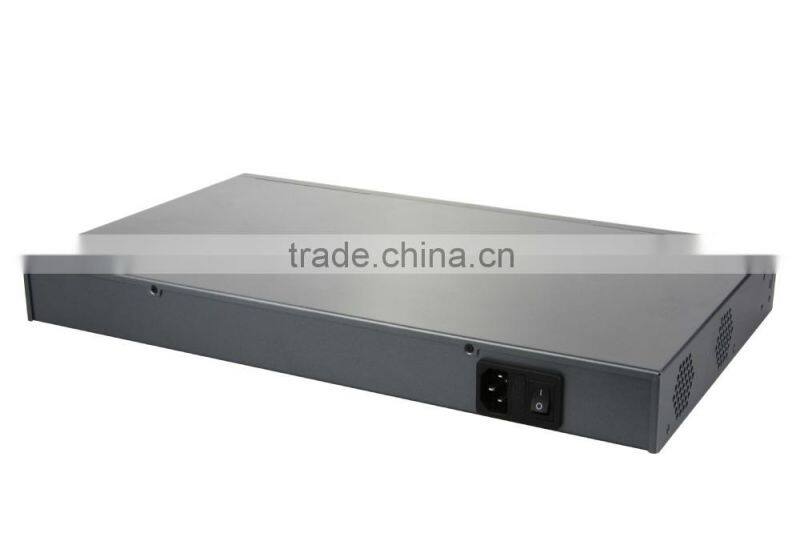

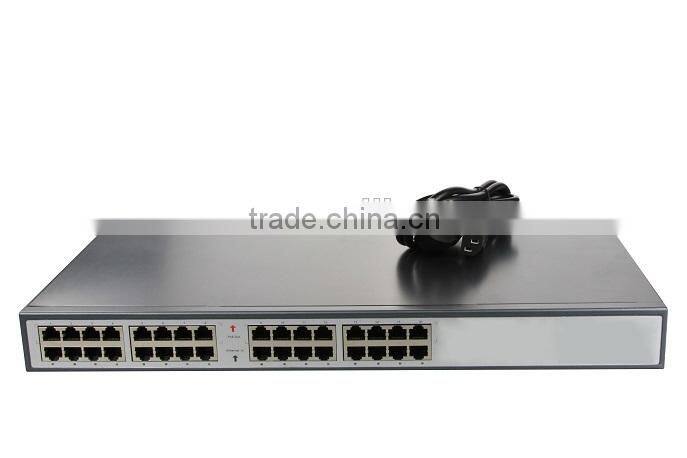

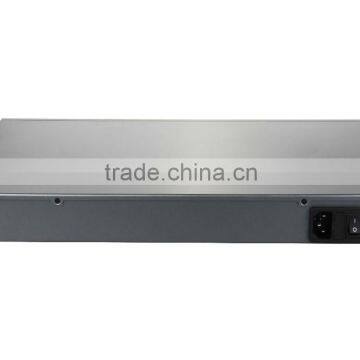

The picture:

Specification

Product Name	16-Port 10/100M PoE Injector 15.4W
Model	ONV-PSE31016
Connector Type	16-Port 10/100M RJ45 Input, 16-Port PoE output
Network Media	100Base-TX (≤100, Catalogue 5 cable)
LED Display	PoE working status
Power Input	AC100-240V 50/60Hz
PoE Ports	16-Port PoE (IEEE802.3af)
PoE Port Power	15.4Watts output (IEEE802.3af)
PoE Standard	IEEE802.3af
Power Consumption	240W
Working Environment	Operating temperature: -20 to 75° C; Storage temperature: -40 to 85°C
Certification	CE mark,commercial,FCC Part 15 Class B, RoHS
Power Supply Type	Mid-span, End span(optional)
Product Size	LxWxH: 445x260x45mm

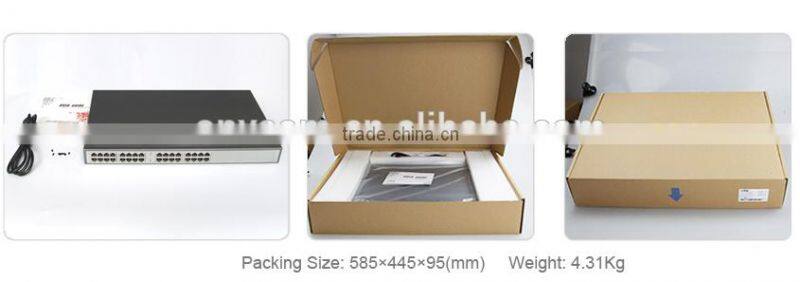

Package Size	LxWxH: 585x445x95mm
Warranty	1 Year Warranty

Order Information
Product Model: ONV-PSE31016

Model	Model description
ONV-PSE31016	16 Port 10/100M PoE injector, IEEE 802.3af 15.4W per port, Total power consumption: 240W
ONV-PSE31016G	16 Port 10/100/1000M PoE injector, IEEE 802.3af 15.4W per port, Total power consumption: 240W
