Best Sall and God Quality 4 Gigabit Port Injector Poe 15.4W per Port for IP Camera
10/100/1000M 4 port poe injector 15.4W per port
- 4x 10/100/1000Mbps RJ45 ports
- lightning protection for Power supply input port and network port
- Complies with IEEE 802.3af
- Supports PoE power up to 15.4 Watts
- Remote power feeding up to 100 meters
- 1U rack design, suitable for cabinet-mounted

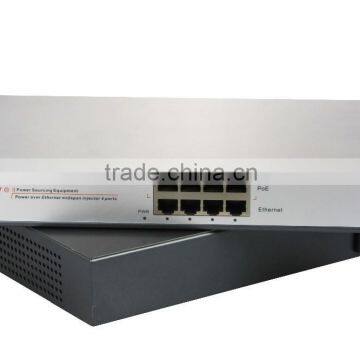

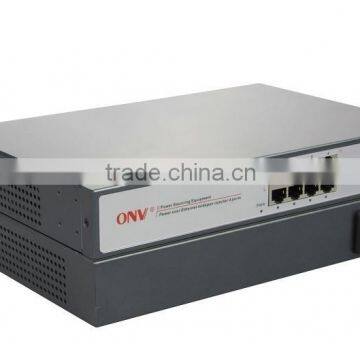

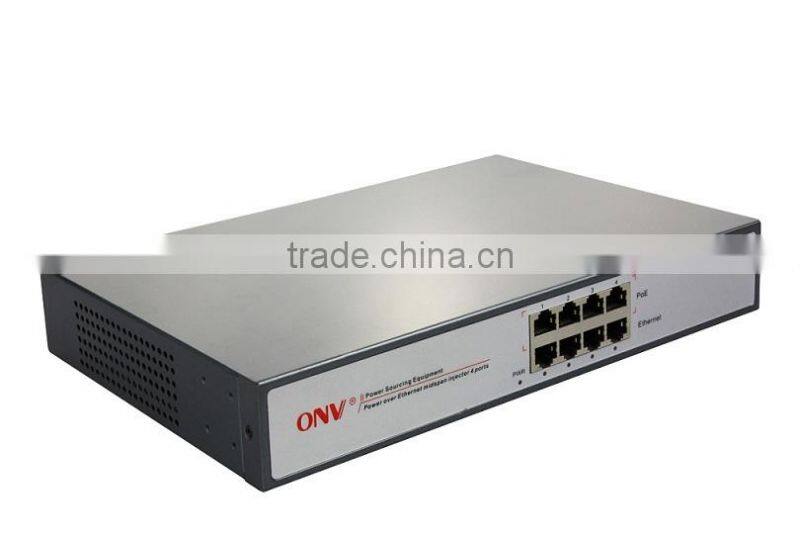

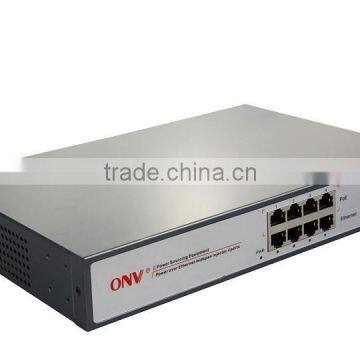

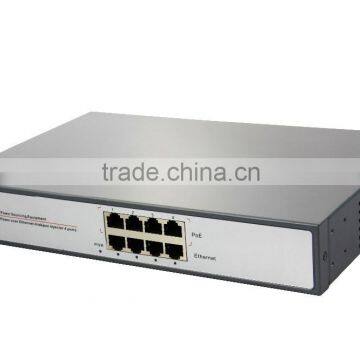

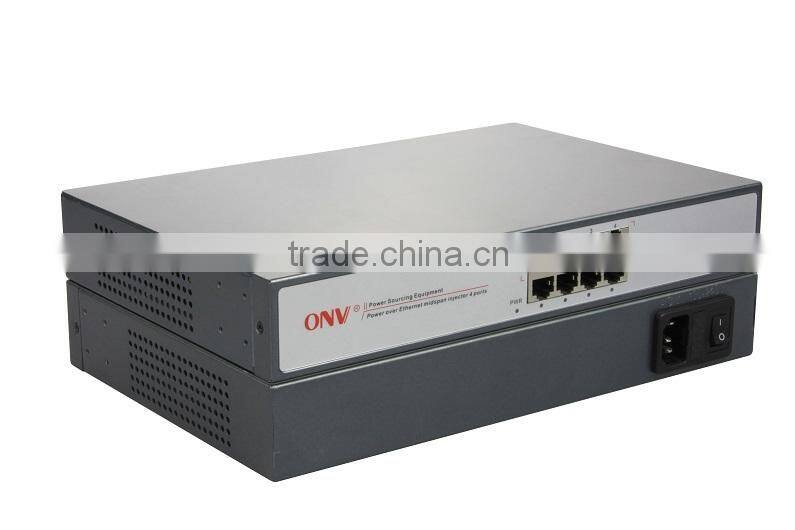

The picture:
Specification
| Product Name | 10/100/1000M 4-Port PoE Injector 15.4W |
| Model | ONV-PSE3104G |
| Connector Type | 4x Port 10/100/1000M RJ45 Ethernet input, 4x PoE output |
| Network Media | 100Base-TX (≤100, Catalogue 5 cable) |
| Network Protocols | CSMA/CD, TCP/IP, IEEE 802.3, 802.3u, 802.3ab |
| LED Display | PoE working status |
| Power Input | AC100-240V 50/60Hz |
| PoE Ports | 4x PoE Ports(IEEE802.3af) |
| PoE Port Power | 15.4Watts output (IEEE802.3af) |
| Power Consumption | 60Watts |
| Working Environment | Operating temperature: 0 to 55° C; Storage temperature: -20 to 75°C |
| Certification | CE mark,commercial,FCC Part 15 Class B,RoHS |
| Power Supply Type | Mid-span, End span(optional) |

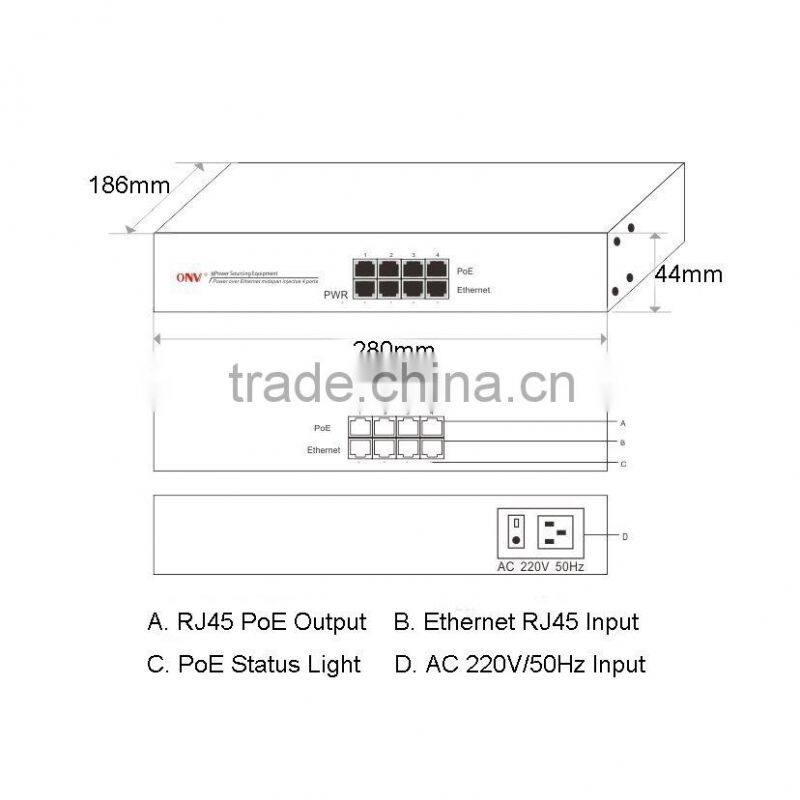

| Product Size | LxWxH: 280x186x44mm, 1.4kg |
| Package Size | LxWxH: 410x240x90mm, 2.1kg |
| Warranty | 1 year warranty, 3 years warranty for power adapter. Lifetime Maintenance |
- We have our own factory, and all our workers are very experienced ones.
- Our products are with high quaity, and we have passe CE/FC/RoHS certificates.
- We can offer very competitive price in the market.
- We guarantee best after sales service
Order Information
Product Model: ONV-PSE3104
Model |
Model description |
ONV-PSE3104 |
4 port 10/100M POE injector, IEEE 802.3af, PoE output 15.4W, Total power consumption 60W |
ONV-PSE3104-at |
4 port 10/100M POE injector, IEEE 802.3af, PoE output 25.5W, Total power consumption 120W |
ONV-PSE3104G |
4 port 10/100/1000M POE injector, IEEE 802.3af, PoE output 15.4W, Total power consumption 66W |
ONV-PSE3104G-at |
4 port 10/100/1000M POE injector, IEEE 802.3af, PoE output 25.5W, Total power consumption 120W |

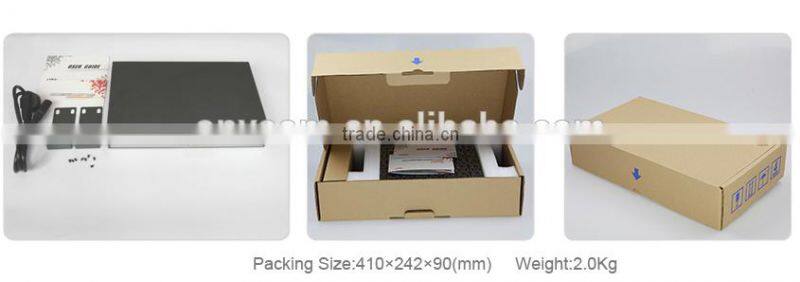

Package List
|
Package List
|
4-Port 100M PoE injector with 4 PoE Ports 15.4W
|
|
User Guide
| |
|
Warranty Card
|

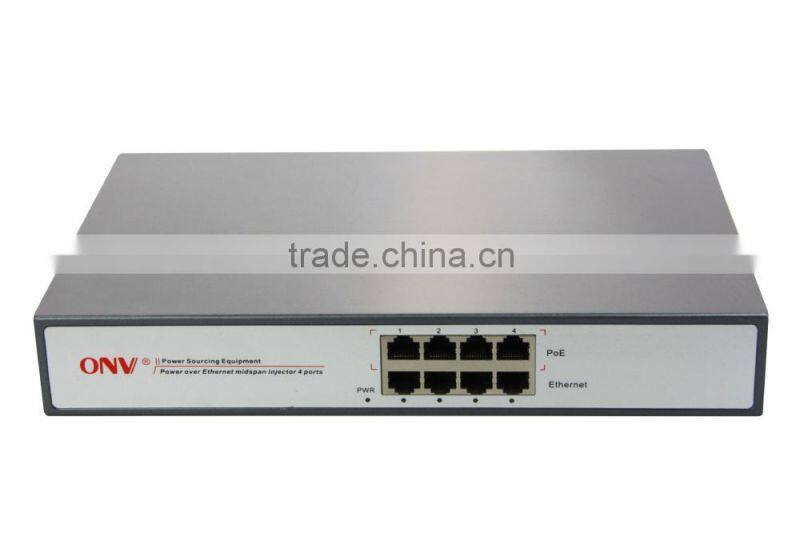

Product Display:
Our factory
Shipment
Attended exhibition
If you still have problen about our product or you want know more information about it, we are glad to serve you anytime.
Tel:+8613886951478
Skype:tommy900525
Send Inquiry to This Supplier
