Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≤ 8
Transmission Rate:
10/100/1000Mbps
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Port Gigabit Power Over Ethernet InjectorUS$ 1 - 20MOQ: 1 Piece -
ShenZhen Best Sell and High Quality 10/100/1000M Port POE Injector 25.5WUS$ 1 - 20MOQ: 1 Piece
-
4 Port High Power Poe Injector Made in China for IP Camera(IEEE802.3at)US$ 1 - 100MOQ: 1 Piece
-
25.5W 4 Port High Power Power Over Ethernet Injector for IP Camera(IEEE802.3at)US$ 1 - 100MOQ: 1 Piece
-
ONV High Power 48V Single 10/100/1000M Port POE Injector 25.5WUS$ 1 - 20MOQ: 1 Piece
Products Status
Stock
Ports
Other, ≤ 8
Transmission Rate
10/100/1000Mbps
Function
POE
Communication Mode
Other, Full-Duplex & Half-Duplex
Certification
CE,FCC,RoHs
Brand Name
ONV
Model Number
PSE3101DCG
Place of Origin
Guangdong, China
Product Description
Specifications
poe injector supplier
1:10/100/1000mbps RJ45 ports
2:IEEE802.3af standard,
3:Lightning protection
4:CE/FC/RoHS, OEM
power over ethernet injector
1:10/100/1000mbps RJ45 ports,Auto MDI/MDIX,
2:IEEE802.3af standard,single port power is 15.4W
3:Lightning protection for ports
4:CE/FC/RoHS certificates
5:OEM accepted
6:Ex-work price available
7:Best after sales service
poe injector Detail
| Brand | ONV | |
| Product | single port Port POE Injector | 1 POE Out port |
| 1 Ethernet IN port | ||
| Type | PSE3101DC/ PSE3101DCG | |
| Network port | 2 10/100mbps or 10/100/1000Mbps RJ45 ports | Auto MDI/MDIX |
| POE power supply mode | End-span (data pairs 1/2,3/6) (usually this one) | 1/2(+), 3/6(-) |
| Mid-span (spare pairs 4/5,7/8) | 4/5(+), 7/8(-) | |
| Network Medium | 10BASE-T:UTP CAT3/4/5 | <=100m |
| 100BASE-T:UTP CAT5 | <=100m | |
| 1000BASE-T:UTP CAT5 | <=100m | |
| over-temperature protection | >100 degree | |
| Performance Specification | POE Out Voltage:48V | |
| PSE3108/ PSE3108-at:10/100Mbps | ||
| PSE3108G/ PSE3108G-at:10/100/1000Mbps | ||
| Port Protection: meet IEC61000-4-2(ESD) | ||
| MTBF:190,000 hours | ||
| Network Protocol and Standards | IEEE 802.3i 10BASET | |
| IEEE 802.3u 100BASETX | ||
| IEEE 802.3x Flow Control | ||
| IEEE 802.1af DTE Power via MDI | ||
| IEEE 802.3af | ||
| LEDs Indicator | POE working status | |
| power support | Total power: 16W(IEEE802.3af)/ 30W(IEEE802.3at) | |
| POE port power: 15.4W(IEEE802.3af)/ 25.5W(IEEE802.3at) | ||
| AC90V-264V | ||
| Phisical specifications | Dimension:279L x 195W x 44H mm | |
| Weight:1.25kg | ||
| Environmental specifications | Operating temperature:0°Cto 55°C | |
| storage temperature:-20°Cto 75°C | ||
| Operating humidity:10% to 90%( non-condensing ) | ||
| storage humidity:10% to 95%( non-condensing ) | ||
| Quality Ganrantee | CE Mark,Commercial, FCC part 15 class B,RoHS | |
| Waranty | 1 year guarantee | |
Our Advantages
- we have our own factory, and all our workers are very experienced ones.
- Our R&D team has more than 12 years R&D experience.
- our products are with high quaity, and we have passe CE/FC/RoHS certificates.
- We can offer very competitive price in the market.
- We guarantee best after sales service
- Our experts are always ready to help you when you met difficulties in actual application of our products.
Detailed Picture for 48V 8 Ports POE Switch

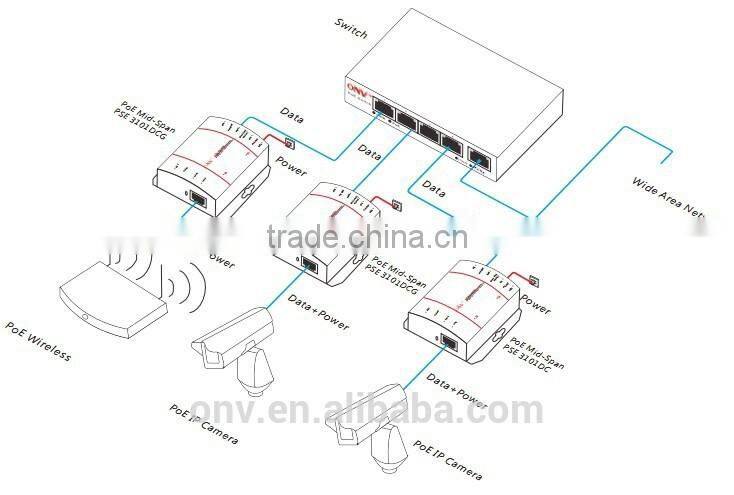

Practical Application Picture
Certifications
Office Picture
If you still have problen about our product or you want know more information about it, we are glad to serve you anytime.
