ONV 10/100M Full Duplex Repeater-power Over Extender IEEE802.3af

FOB Price

US$ 1 - 20 / Piece

1 Piece(Min. Order)

Port ShenZhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Ports	Other, ≤ 8
Transmission Rate	10/100Mbps	Function	POE, SNMP, VLAN Support
Communication Mode	Other, Full-Duplex & Half-Duplex	Certification	CE,FCC,RoHS
Brand Name	ONV	Model Number	ONV-PD3101
Place of Origin	China

Product Description

Product features

1. Complies with IEEE 802.3af Power over Ethernet
2. Extends the range of PoE an additional 100 meters
3. Forwards both Ethernet data and PoE power to remote devices
4. Automatically detects and protects PoE equipments from being damaged by incorrect installation
5. Multiple units, daisy-chain installation support
6. No external power cable required for installation
7. Compact size, Wall-Mountable design
8. Plug-and-Play

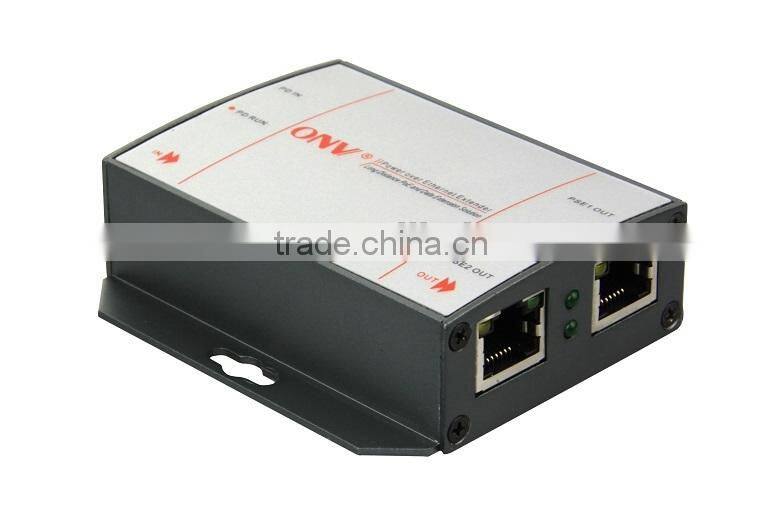

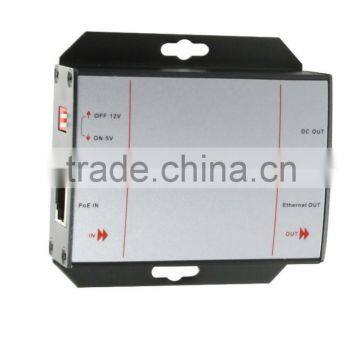

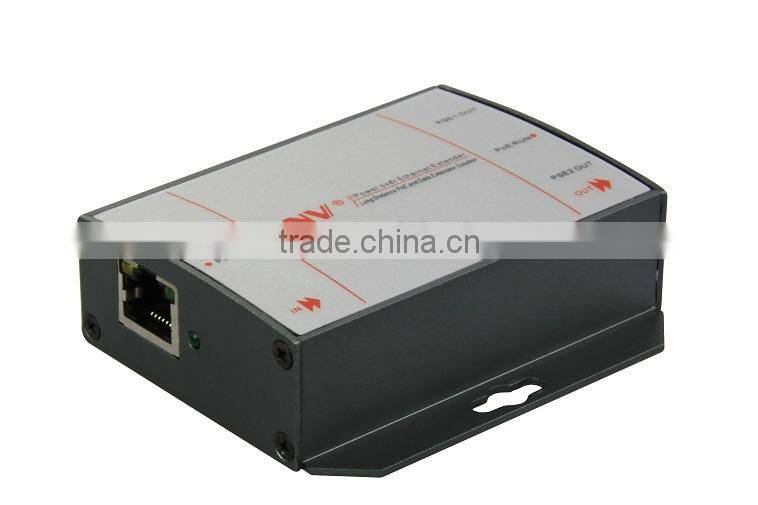

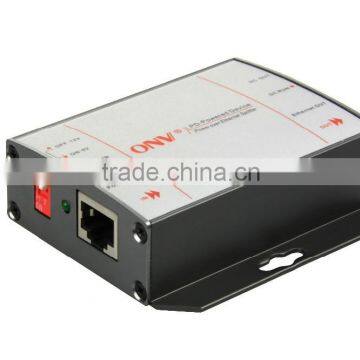

The picture

Specification

Product Name	10/100M PoE Extender 15.4W - Extend 100 Meters
Product Model	ONV-PSE-PD3101
Connector Type	Input: Data+Power; Output: Data+Power (Self-adjustable Power)
Network Medium	100Base-TX (≤100, Catalogue 5 cable)
Bandwidth	1.6Gbps
MAC Address Table	1K
Network Protocol	IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI
Performance	Store-And-Forward Architecture; Extend the transmission distance of 100 meters
PoE Port	Input Power: 15.4Watts, Output Power: 12Watts for one port ouput, 6Watts for 2 port output
PoE Standard	IEEE802.3af
PoE Power Supply Type	End-Span
PoE Cable Core	1/2+, 3/6- (4/5+, 7/8- optional)
LED Display	Power, Ethernet, PoE working status
Product Size	LxWxH: 80x76x25mm
Package Size	0.2kg
Working Environment	Operating temperature: 0 to 55° C; Storage temperature: -20 to 75°C
Warranty	1 Year Warranty

Order Information
Product Model:ONV-PSE-PD3101
Description: 10/100M PoE Extender, 100 Meters, IEEE 802.3af, 15.4Watts
Power Pin Assignment: Default PoE power supply 12/ 36 line pairs, and alternative PoE power supply is 45/ 78 line pairs

Accessories in the Package

Package Contents	10/100M PoE Extender(ONV-PSE-PD3101)

	User Manual
	Warranty Card

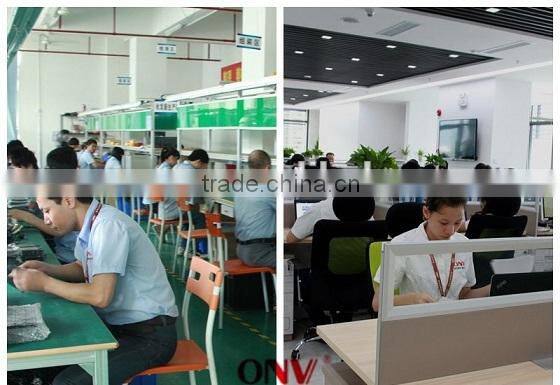

Our factory and sale office

Why choose ONV?
1. Have CE,FCC,ROHS certification
2. Twelve years of production experience
3. Have a R&D team
4. Good services
5. Prompt delivery
6. Competitive prices
7. Accept OEM & ODM cooperation

If you still have problen about our product or you want know more information about it, we are glad to serve you anytime.
Tel:+8613886951478
Skype:tommy900525
