10/100M poe extender
PoE extender features
1. Complies with IEEE 802.3af Power over Ethernet
2. Extends the range of PoE an additional 100 meters
3. Forwards both Ethernet data and PoE power to remote devices
4. Automatically detects and protects PoE equipments from being damaged by incorrect installation
5. Multiple units, daisy-chain installation support
6. No external power cable required for installation
7. Compact size, Wall-Mountable design
8. Plug-and-Play

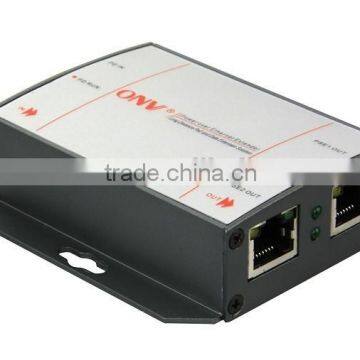

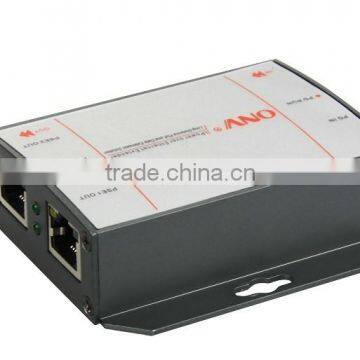

The picture
Specification
| Product Name | 10/100M PoE Extender 15.4W - Extend 100 Meters |
| Product Model | ONV-PSE-PD3101 |
| Connector Type | Input: Data+Power; Output: Data+Power (Self-adjustable Power) |
| Network Medium | 100Base-TX (≤100, Catalogue 5 cable) |
| Bandwidth | 1.6Gbps |
| MAC Address Table | 1K |
| Network Protocol | IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| Performance | Store-And-Forward Architecture; Extend the transmission distance of 100 meters |
| PoE Port | Input Power: 15.4Watts, Output Power: 12Watts for one port ouput, 6Watts for 2 port output |
| PoE Standard | IEEE802.3af |
| PoE Power Supply Type | End-Span |
| PoE Cable Core | 1/2+, 3/6- (4/5+, 7/8- optional) |
| LED Display | Power, Ethernet, PoE working status |
| Product Size | LxWxH: 80x76x25mm |
| Package Size | 0.2kg |
| Working Environment | Operating temperature: 0 to 55° C; Storage temperature: -20 to 75°C |
| Warranty | 1 Year Warranty |

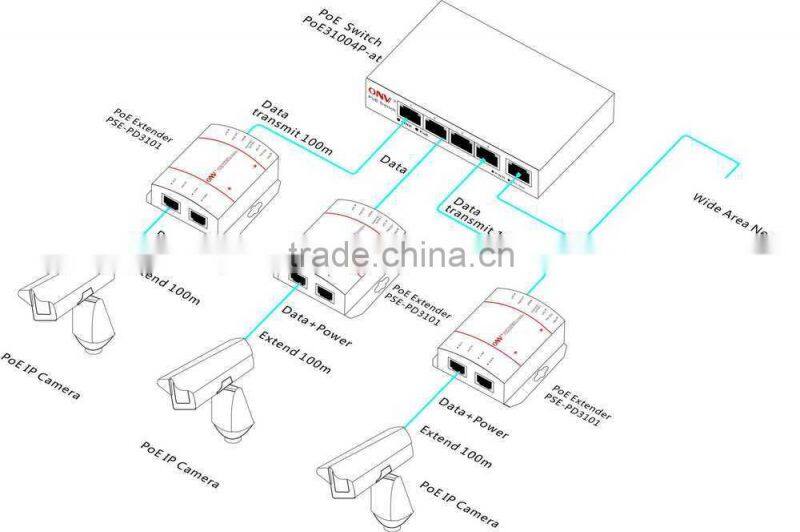

Application
Order Information
Product Model:ONV-PSE-PD3101
Description: 10/100M PoE Extender, 100 Meters, IEEE 802.3af, 15.4Watts
Power Pin Assignment: Default PoE power supply 12/ 36 line pairs, and alternative PoE power supply is 45/ 78 line pairs
Accessories in the Package
| Package Contents | 10/100M PoE Extender(ONV-PSE-PD3101) |
| User Manual | |
| Warranty Card |
