24 Port Gigabit Managed Optical Fiber Switch Ethernet Switches 48v
Packaging & Delivery
Packaging Details: Netural Packing or ONV packing; 10pcs/20pcs for one carton.
Delivery Days: 1-3 days for samples; 1-2 weeks for bulk order.
Key Features
1:20 Port 100/1000Base-X + 4 TP/(100M/1G) SFP Combo ports
2:L2+ features provide better manageability, security, QoS, and performance.
3:Support 100BASE-FX and 1000BASE-X optical module.
4:Extended large buffer size, up to 32Mb packet buffer.
5:Extended large MAC table size, up to 32K MAC able.
6:Extended large ACL table size, up to 1K ACL table, it enhanced the security capability.
7:Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, IP Source Guard, ARP inspection, ACLs etc.
8:Support spanning tree STP(802.1D) and RSTP(802.1W).
9:Jumbo frames support up to 9.6K kilobtyes.
10:Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.
11;G.8032, support <50ms industrial quick ring protection
Product parameter
| Technical parameter list | |
| Product Name | 24-Port Gigabit Managed Optical Fiber Switch |
| Model | ONV-S33024F4TG-M |
| Connector Type | 20 Port 100/1000Base-X + 4 TP/(100M/1G) SFP Combo ports |
| Network Media | 100BASE-T: Cat5 UTP; 100BASE-TX: Cat6 UTP |
| Bandwidth | 48G |
| Address Database Size | 32K |
| Forwarding Mode | Store-and-Forward |
| Buffer Memory | 32M |
| Network Protocols | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control |
| LED Display | RUN, PWR |
| Working Environment | Operating temperature: -10 to 60 ℃; Storage temperature: -20℃ to70 ℃ ; Operating humidity: 10% to 90% , non-condensing |
| Transmission Distance | Single mode sigle fiber 20km |
| QoS | Yes |
| VLAN | Yes |
| Product Size | 440x270x44mm |
| Warranty | 1 year warranty |
Ordering Information
Product Model: ONV-S33024F4TG-M
Product Description: 24-Port gigabit managed Optical Fiber Switch, with 20 Port 100/1000Base-X + 4 TP/(100M/1G) SFP Combo ports.
Package List
Package Contents |
24-Port Gigabit Managed Optical Fiber Switch (ONV-S33024F4TG-M) |
| Power Cable | |
User Guide | |
Warranty Card |
Note: SFP module is not included in this package. Please purchase it separately.

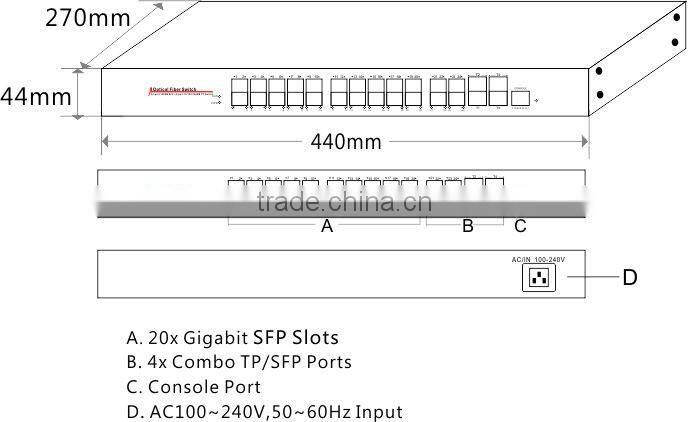

Size
