8 Port Fiber Optic Gigabit Ethernet Network Switch Ethernet switches
Packaging & Delivery
Packaging Details: Netural Packing ; 10pcs/20pcs for one carton.
Delivery Days: 1-3 days for samples; 1-2 weeks for bulk order.
Features
1Meet IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEE802.3 1000BASE-T, IEE802.31000BASE-LX fast Ethernet standard
Can transfer data for network surveillance cameras
2:8x 1000Mbps SFP ports, and 2x gigabit auto-sensing RJ45 ports which support auto-flip (Auto MDI/ MDIX), Simplifying network set up and maintenance
3:Complies with IEEE 802.3x full-duplex flow control standard, Backpressure standard for half-duplex flow control
4:Adopts store-and-forward architecture, ensure data integrity
5:Support for broadcast and multicast storm control
6;Support jumbo frames under all speeds (1000M)
Product parameter
| Technical parameter list | |
| Product Name | 8-Port Fiber Optic Gigabit Ethernet Network Switch |
| Model | ONV-S33008F2TG |
| Connector Type | 8x 1000Mbps SFP ports + 2 gigabit auto-sensing RJ45 ports |
| Network Media | 100BASE-T: Cat5 UTP; 100BASE-TX: Cat6 UTP |
| Bandwidth | 16Gbps |
| Address Database Size | 8K |
| MTBF | 190,000 hours (about 21 years) |
| Forwarding Mode | Store-and-Forward |
| Buffer Memory | 10Mbps: 14880pps; 100Mbps: 148800pps; 1000Mbps: 1488000pps |
| Network Protocols | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control |
| LED Display | Whole Device: PRW(Power) ; Every Port: SFP Link,RJ-45 Link,100M |
| Power Supply | Input: 100-240V~ 50-60Hz 0.6A |
| Power Consumption | Max 10W |
| Working Environment | Operating Temperature: 0 ° ~ 70 ° C ; Storage Temperature: -10 ° ~ 70 ° C ; Humidity: 10% ~ 90%, non-condensing ; Operating Humidity: 10% ~ 90%, RH, non-condensing Storage Humidity: 5% ~ 90%, RH, non-condensing |
| Transmission Distance | Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative) |
| Product Size | 279*195*44mm |
| Warranty | 1 year warranty |
Order Information
Product Model: ONV-S33008F2TG
Product Description: 8 Port Ethernet Switch, with 8x 10/100/1000M SFP ports and 2x gigabit Ethernet ports
Note: SFP module is not included, please order it separately

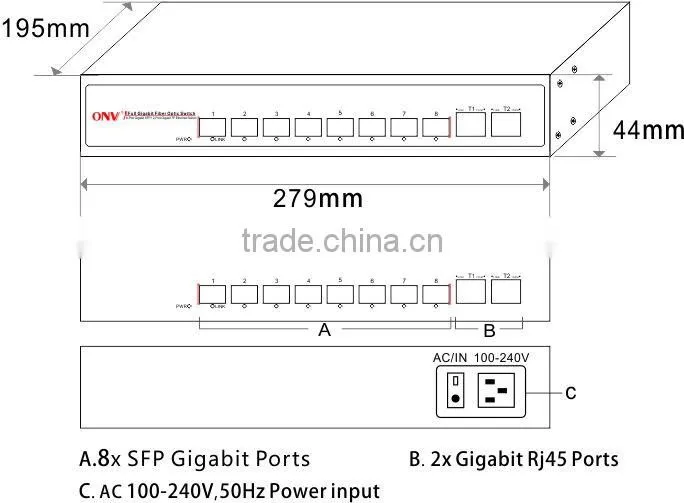

Product size
