ASTM F436 hardened washers 1" (ASTM F436)
ASTM F436
Hardened flat wahser ,ASTM F436
1) Size :1/4"-4"
2) OD:5/8“-7-1/2”
3) another standard :ANSI USS DIN SAE ISO NFE JIS ,etc
DIN127B
1) Size: M3 to M36, No. 6 to 1-1/2"
2) Standard of spring washers: DIN127, JIS B1251
Feature:
1) Size: M3 to M36, No. 6 to 1-1/2"
2) Standards of spring washers: DIN127, JIS B1251 & IFI L-9
3) Material: 70C, SUS304 & SUS316
Outer packing: Carton or poly bag + Pallet
Our Spring Washers:
1. Material: Stainless steel201 304 316 etc, carbon steel 70# etc
2. Standard:
A. ANSI AMSE. B 18.21.1 etc, size from NO. 4 to 3"
B. DIN127B, DIN7980, size from M3-M52, DIN128B, DIN6905, size from M3-M20
C. BS1802, size from 1/8"-1-1/2"
D. JIS-2, size from M3-M36
E. GB93-76, GB93-87 size from M3-M64, GB859-76, GB859-87, size from M3-M64, gb7244-87 heavy type, size from M6-M48, GB7425, GB7426, GB9074, ETC
3. Surface: Galvanized, oxide, plain, black etc.
4. Use: For fastening, waterproof, etc
5. Packing: 5kg/1kg/bag, then in carton, or bulk in carton then in pallet or according to customers' request
25kg/ctn, usually 800kg/palletc.
6.main market: Italy,England,Russia,Turkey,America,Canada,Brazil, Argentina,Peru,Ecuador,South Africa, Australia, New Zealand, Iran, etc
| Product Name | hardened flat washer ASTM F436 |
| HS Code | 73182200 |
| Product Standard | ASTM F436 |
| Size | 1/4"-4" |
| Material | Carbon Steel 70# |
| Surface Treatment | Mechanical zinc ,Yellow Zinc , HDG etc. |
| Label on Box | Yes |
| Package Type | Plastic Bag + Carton Box + Pallet |
| Inner Box + Carton Box + Pallet | |
| Customized it Under Your Requirement |
| Bolt Size | B | A | C | |
| Outside Diameter | Inside Diameter | Thickness | ||
| Min | Max | |||
| 1/4" | 5/8" | 9/32" | 0.051 | 0.08 |
| 5/16" | 11/16" | 11/32" | 0.051 | 0.08 |
| 3/8" | 13/16" | 13/32" | 0.051 | 0.08 |
| 7/16" | 59/64" | 15/32" | 0.051 | 0.08 |
| 1/2" | 1-1/16" | 17/32" | 0.097 | 0.177 |
| 5/8" | 1-5/16" | 11/16" | 0.122 | 0.177 |
| 3/4" | 1-15/32" | 13/16" | 0.122 | 0.177 |
| 7/8" | 1-3/4" | 15/16" | 0.136 | 0.177 |
| 1" | 2" | 1-1/16" | 0.136 | 0.177 |
| 1-1/8" | 2-1/4" | 1-3/16" | 0.136 | 0.177 |
| 1-1/4" | 2-1/2" | 1-3/8" | 0.136 | 0.177 |
| 1-3/8" | 2-3/4" | 1-1/2" | 0.136 | 0.177 |
| 1-1/2" | 3 | 1-5/8" | 0.136 | 0.177 |
| 1-3/4" | 3-3/8" | 1-7/8" | 0.178 | 0.28 |
| 2" | 3-3/4" | 2-1/8" | 0.178 | 0.28 |
| 2"-1/4" | 4" | 2-3/8" | 0.24 | 0.34 |
| 2-1/2" | 4-1/2" | 2-5/8" | 0.24 | 0.34 |
| 2-3/4" | 5" | 2-7/8" | 0.24 | 0.34 |
| 3" | 5-1/2" | 3-1/8" | 0.24 | 0.34 |
| 3-1/4" | 6" | 3-3/8" | 0.24 | 0.34 |
| 3-1/2' | 6-1/2" | 3-5/8" | 0.24 | 0.34 |
| 3-3/4" | 7" | 3-7/8" | 0.24 | 0.34 |
| 4" | 7-1/2" | 4-1/8" | 0.24 | 0.34 |

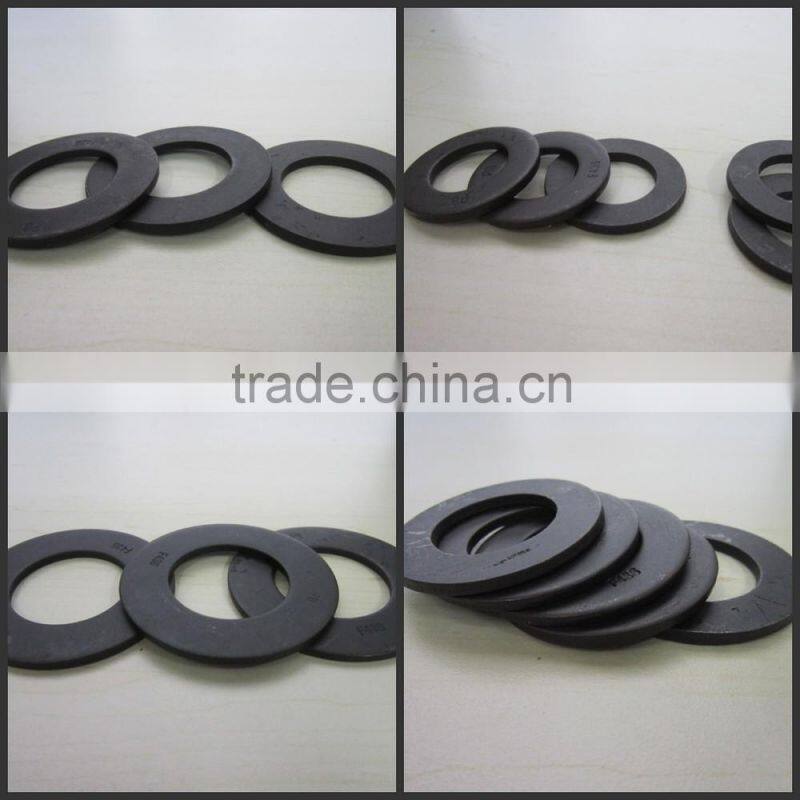

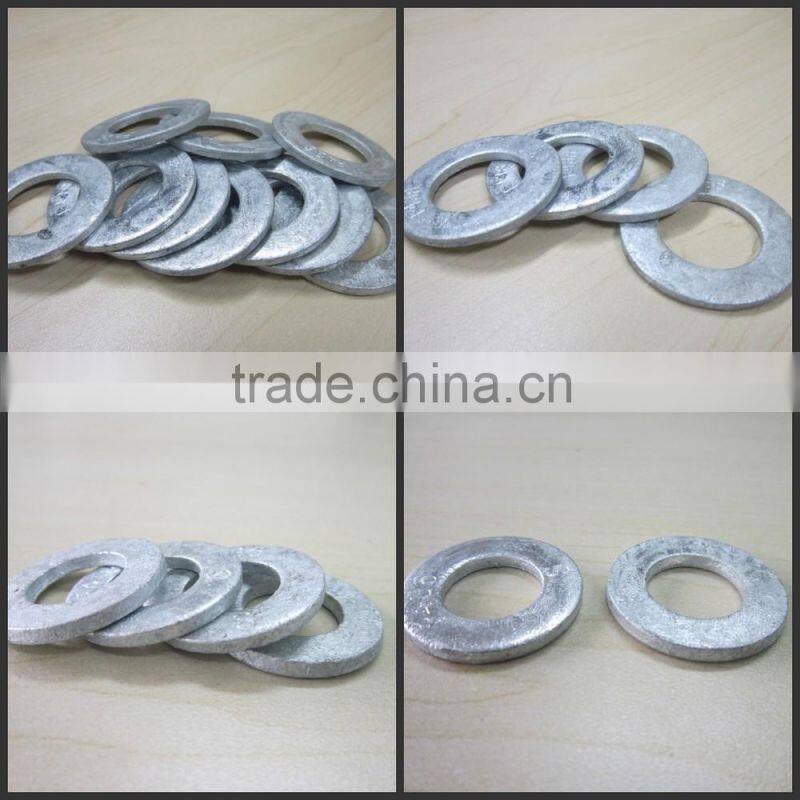

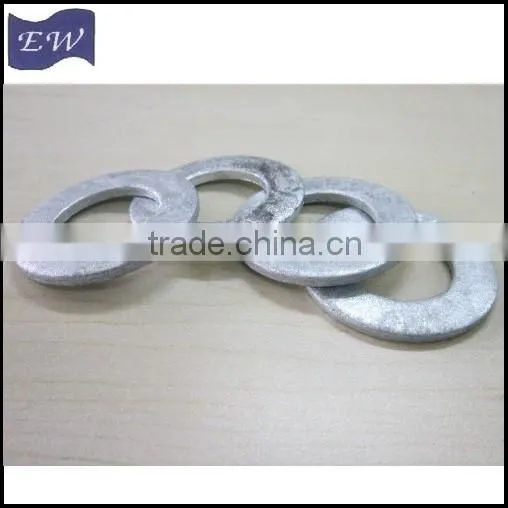

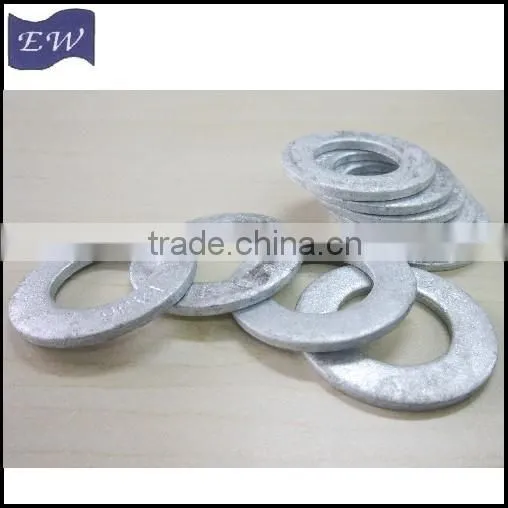

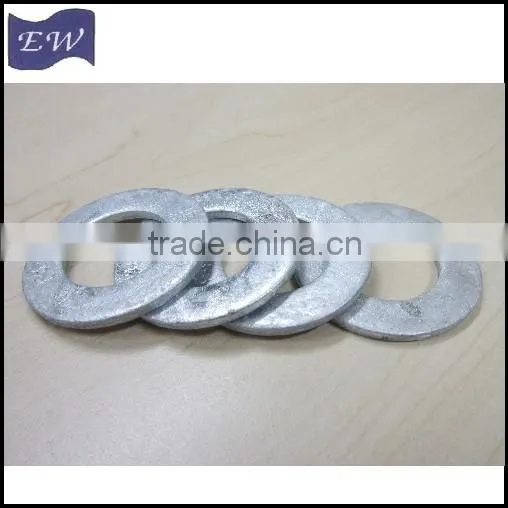

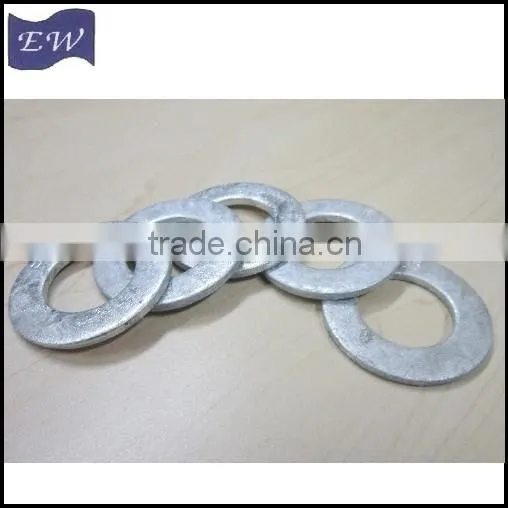

Photo:
-Packing:
1.packing:small box /bulking packing/roll packing+carton+pallets
Usually,48cartons /pallets
-Shipping
1.by express: DHL,FEDEX,UPS,TNT,ARAMEX,etc
2.by sea
3.by air
1.sample :free sample is ok
2.make your logo label
3.packing as your requirements
4.OEM can be accepted
petitive price and high quality
Application:
1.Question: what's you material, OEM is ok ?
Answer:we have carbon steel and stainless steel material , any material can make as your requirements .
OEM is accepted .if large qty there is no need mould fee .
2.Question: free sample is ok ?
Answer:sample for standard is free. sample fee is need for non-standard . but freight you need to pay for it .
of course , you can save the sample fee and freight if you place the order . special sample will send you to test. then after confirmed large prouction will start.
3.Question:How is your packing ?
Answer:usually about inner packing we have bulking packing(polybag packing) ,roll packing ,small box packing ,then put into the carton , last packed into the pallets .
4.Question: How is your quality.
Answer: we can offer you the related material report or quality export as your requirement.
Sample can offer you to test. about the the quality we can promise you the quality after the goods selled six month . if some wrong happens cause the goods quality ,we will offer you the best solution.
Any questions please send us the email or call me . Thanks and have a nice day!
