Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > CT104 Steel Wire Straightening and Cutting Machine Wire Processing Machine

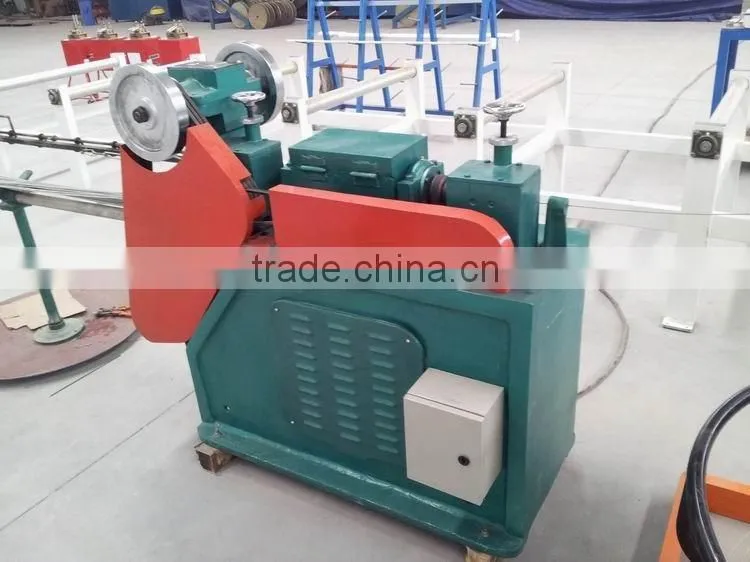

CT104 Steel Wire Straightening and Cutting Machine Wire Processing Machine

Name: CT104 Steel Wire Straightening and Cutting Machine Wire Processing Machine
Brand: Kete
SKU: 105592745
Availability: InStock

CT104 Steel Wire Straightening and Cutting Machine Wire Processing Machine thumbnail-1

CT104 Steel Wire Straightening and Cutting Machine Wire Processing Machine photo-1

US$ 15000.00 - 20000.00 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Hebei, China

Brand Name:

Kete

Contact Supplier Request Quote Chat Now

Zhangjiagang Jiasye Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port China; Tianjin port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Hebei, China

Brand Name Kete

Model Number CT104

Voltage 380V

Rated Power 5.5KW

Dimension(L*W*H) 1500x750x1300 mm

Weight 1100KGS

Certification ISO9001

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Application

steel wire straightening and cutting machine widely used on all kinds steel wire cutting and straightening processing , suitable for low carbon steel wire, middle carbon steel wire, high

carbon steel wire, alloy steel wire, stainless steel wire. which is most welcome in refrigeration wire condenser, steel wire basket, electric fan cover, industry steel wire products.

Speification

steel wire straightening machine CT 1.6-6.0

Name	Steel Wire straightening and cutting machine	Power source		380V /220V, 50Hz
Model	CT1.6-6	Series NO.		CT104
Diameter	φ1.6-6mm; 2-5mm better	Standard		GB/T 8525—87
Cutting length	150— 4000mm	Insulation Grade		Grade F
Straightness	2mm / m	Overall dimension	Main machine	14507501200
			Decoiler	135011881612
Cutting tolerance	1mm	Weight	Main machine	900kg
			Decoiler	200kg
Straightening speed	110m / min	Production date
Cutting speed	600 times / min	Country of Origin		China
Rated Power	5.5KW	Note: approval
Fixed length Cutting method	Mechanical

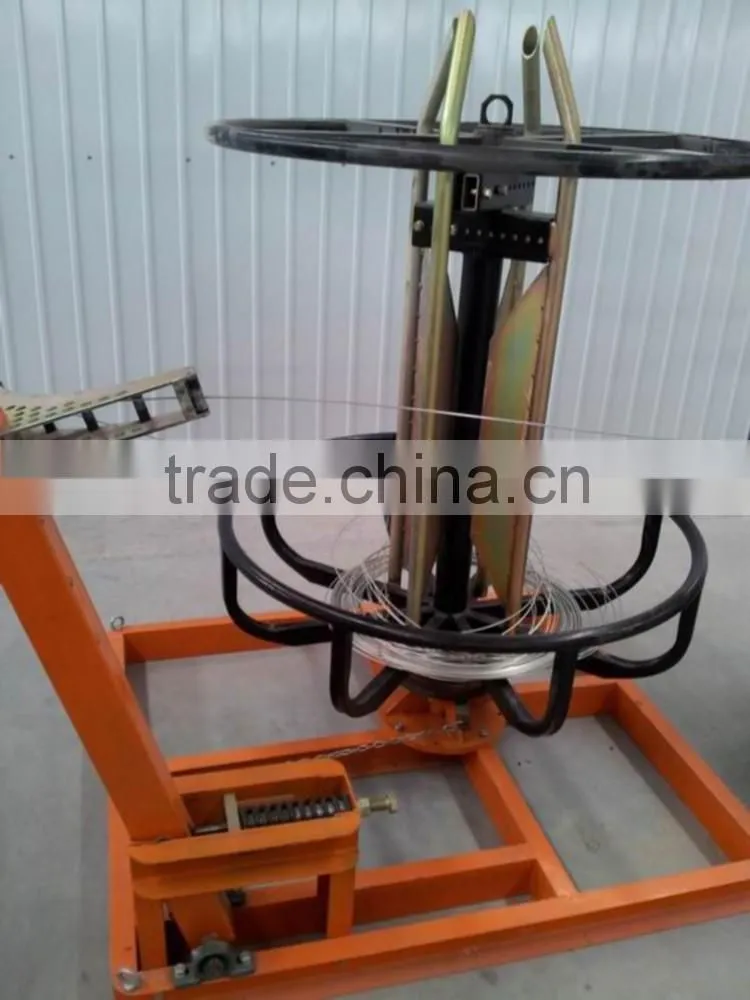

Specification of decoiler

Name	Wire decoiler
Model	350-700-1T-Z
Wire Diameter	φ1—φ8mm
Max. loading capacity	1000kg
Wire coil inner diameter	350mm-700mm (multiples by 50mm)
Wire coil outer diameter	≤1000mm
Break mode	Instant break
Overall dimension	14507501200
Weight	200kg
Series NO.	350-700-1T-Z-104
Production date
Note: approval
