Help CenterCopper Tube Unbender Machine
Related Products
-
CT104 CNC System Steel Pipes Straightener and CutterUS$ 45000.00 - 65000.00MOQ: 1 Unit -
CT 3.0-8.0 CNC System Steel Material Straightener and CutterUS$ 45000.00 - 65000.00MOQ: 1 Unit
-
Precise Copper Tube Straightening and Cutting MachineUS$ 16000.00 - 40000.00MOQ: 1 Set
-
Copper Tube Straightening and Cutting MachineUS$ 38000.00 - 40000.00MOQ: 1 Set
-
Steel Pipes Straightening Cutting MachineUS$ 16000.00 - 40000.00MOQ: 1 Set
Description

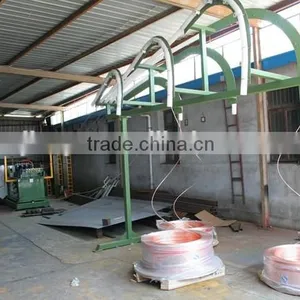

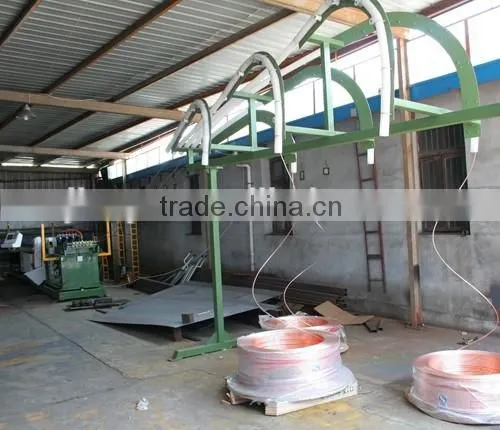

copper tube straighener and cutting machine miany for aluminum tube decoiling, straightening and
cutting.it can be design as single coil tube processing, 2 line, 4 line, 6 lines series. The speed will be little difference against the diameter and material hardness.More requiremenet, pls contact us free.
main parameter
No |
Item |
Detail |
Memo |
1 |
tube diameter range |
OD 4.0—8.0mm |
bigger size for 8-18mm |
2 |
tube thickness range |
0.50-1.0mm |
/ |
2 |
tube straightening length range |
100-50000mm |
/ |
3 |
straightening working speed |
>=45meter/minute |
different as tube size |
4 |
Material collection shelf |
prepared by the user |
/ |
5 |
length cutting tolerance |
+/-1mm |
/ |
6 |
power supply |
380V/50Hz |
3 phases 4 wires type |
7 |
motor power |
5.5KW, rev1440/rpm |
Material feeding motor |
2.2KW, rev1440/rpm |
cutting motor |
||
8 |
the pressure the air compressor |
3MPa |
Just need 0.6-0.8MPa in working |
9 |
dimension |
4000X1000X1350mm |
Not included the material collection shelf |
10 |
weight |
2000KG |
/ |
Drawing
